Solar Terrestrial Activity Report

Activity chart

Last major update issued on February 17, 2013 at 05:50 UTC.

[Solar and geomagnetic data - last month (updated daily)]
[Solar wind and electron fluence charts (updated daily)]
[Solar cycles 23-24 (last update February 1, 2013)] [Cycle 24 progress (last update February 2, 2013) ]
[Solar cycles 1-20]
[Graphical comparison of cycles 21, 22, 23 and 24 (last update February 1, 2013)]
[Graphical comparison of cycles 10, 12, 13, 14, 16 and 24 (last update February 1, 2013)]
[Historical solar and geomagnetic data charts 1954-2006 (last update April 5, 2007)]
[Archived reports since January 2003 (last update February 3, 2013)]

[POES auroral activity level since October 2009 - updated January 26, 2013]
[Solar polar fields vs solar cycles - updated February 3, 2013]
[Presentation 3rd SSN Workshop, Tucson, 2013 (pdf)]

Recent activity

The geomagnetic field was quiet to unsettled on February 16. Solar wind speed at SOHO ranged between 275 and 391 km/s. A weak solar wind shock was observed at SOHO at 11:12 UTC.

Solar flux measured at 20h UTC on 2.8 GHz was 103.2 (decreasing 3.4 over the last solar rotation). The Potsdam WDC planetary A index was 6 (STAR Ap - based on the mean of three hour interval ap indices: 6.5). Three hour interval K indices: 10012331 (planetary), 10022431 (Boulder).

The background x-ray flux was at the class B3 level.

At midnight UTC the visible solar disk had 7 spotted active regions (in 2K resolution SDO images).

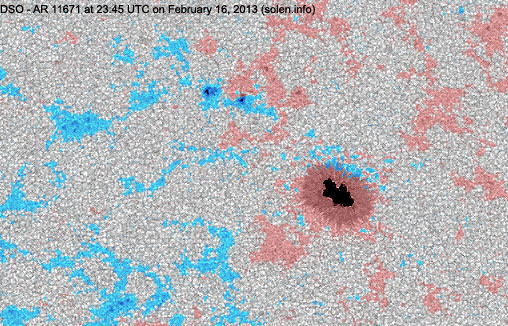

Region 11671 [N14W07] added several spots and gained rudimentary penumbra on the trailing polarity.
Region 11673 [S09E58] developed gaining penumbral area and spots.
New region 11675 [N12E33] emerged on February 15 and was numbered by SWPC next day. The region developed quickly on Feb.16 and has significant polarity intermixing. Two opposite polarity spots in the central section are very close. C and minor M class flares are possible if development is sustained.
New region 11676 [S18E79] rotated into view.

Spotted regions not numbered by SWPC:
S2238 [S08W22] lost the original spot and gained a trailer spot.
New region S2239 [S44E03] emerged at a high latitude with a penumbra spot.
New region S2240 [S27E80] rotated into view with several spots.

Coronal mass ejections (CMEs)

February 14-16: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.

Coronal holes

Coronal hole history (since October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

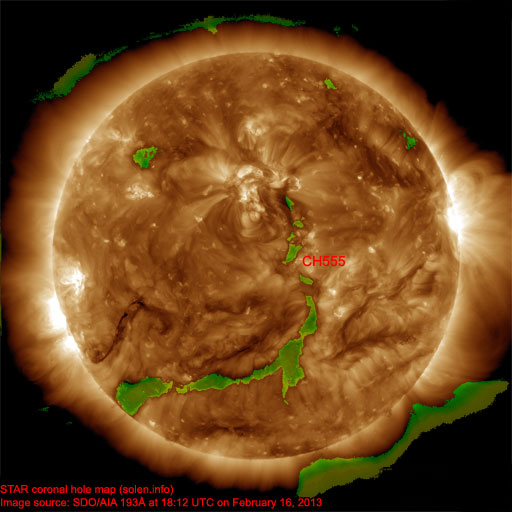

A narrow trans equatorial coronal hole (CH555) - an extension of a southern hemisphere coronal hole - rotated across the central meridian on February 15-16.

Coronal hole map

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor to fair.

Forecast

The geomagnetic field is expected to be quiet to unsettled on February 17. On February 18-19 effects from CH555 could cause a few unsettled and active intervals.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Active solar regions

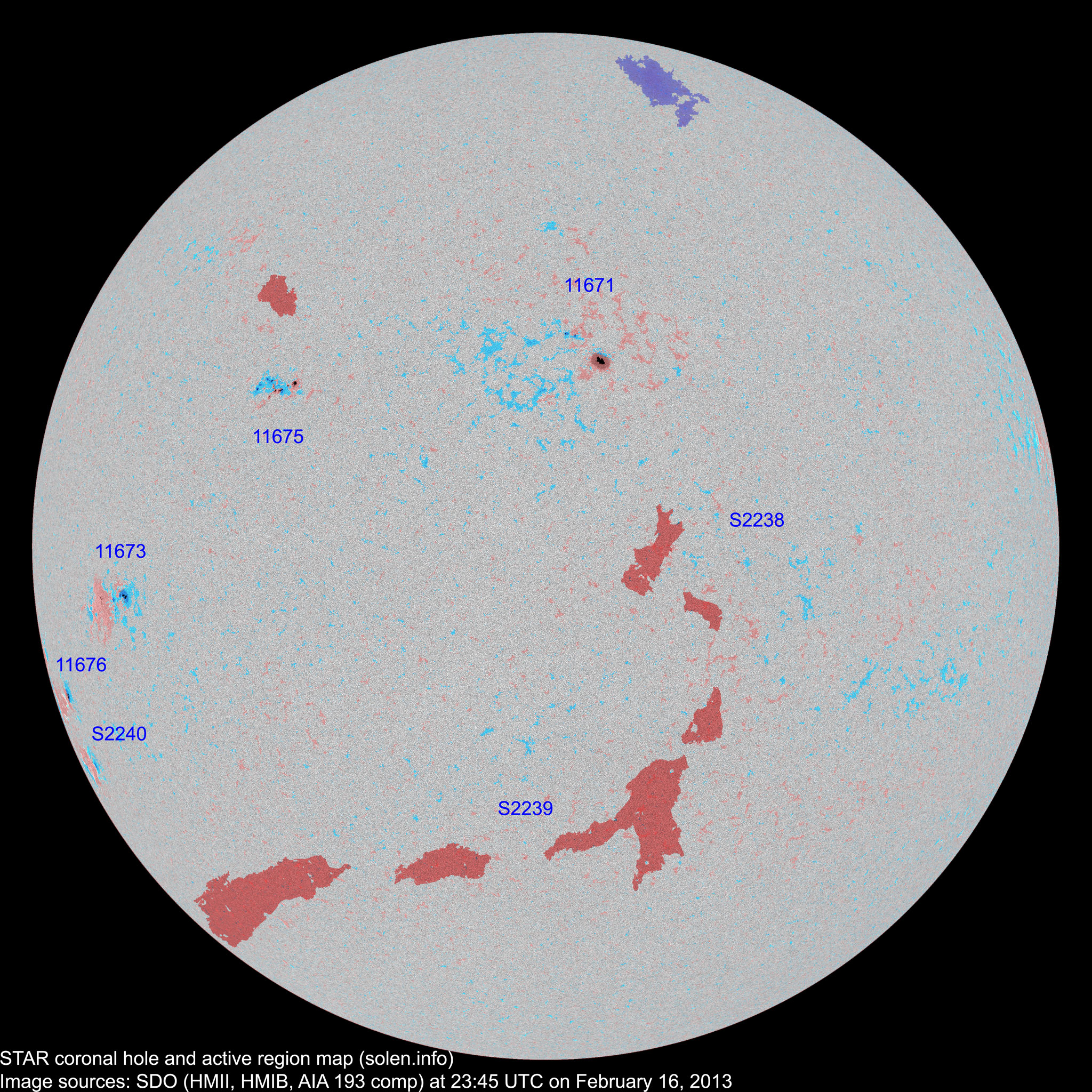

(Click on image for 2K resolution) Compare to the previous day's image. 0.5k image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC STAR SDO SWPC STAR Current Previous
2K 1K
S2216 2013.02.09       S18W29           plage
11672 2013.02.10
2013.02.11
1     S17W29 0010   AXX   spotless
11671 2013.02.10
2013.02.11

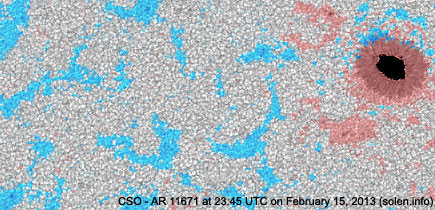

3 16 4 N14W08 0090 CSO DSO

area: 0150

S2222 2013.02.11       N30W01         plage
S2226 2013.02.11       S07W54           plage
S2228 2013.02.12       S07W13           plage
S2231 2013.02.13       S33W37           plage
11673 2013.02.14
2013.02.15
11 8 6 S10E56 0040 HSX CAO location: S09E58

area: 0090

11674 2013.02.14
2013.02.15
      N14W17         plage
11675 2013.02.15
2013.02.16
9 19 10 N12E31 0010 BXO DRI beta-gamma

area: 0070

S2236 2013.02.15       N05E13         plage
S2237 2013.02.15       S04W36         plage
S2238 2013.02.15   1   S08W22 0003   AXX
11676 2013.02.16 1 2 1 S18E78 0030 HAX HSX   area: 0090
S2239 2013.02.16   1   S44E03 0002   AXX
S2240 2013.02.16   3 1 S27E80 0030   CRO
Total spot count: 25 50 22
Sunspot number: 75 120 72  (total spot count + 10 * number of spotted regions)
Weighted SN: 40 71 43  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 45 42 40 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2011.10 137.3 88.0 59.9 (+0.4) 8.28
2011.11 153.5 (cycle max) 96.7 (cycle max) 61.1 (+1.2) 5.55
2011.12 141.3 73.0 63.4 (+2.3) 3.78
2012.01 132.5 58.3 65.5 (+2.1) 7.15
2012.02 106.5 32.9 66.9 (+1.4)
possible cycle 24 max
8.81
2012.03 114.7 64.3 66.8 (-0.1) 16.08
2012.04 113.0 55.2 64.6 (-2.2) 10.10
2012.05 121.5 69.0 61.7 (-2.9) 7.06
2012.06 119.6 64.5 58.9 (-2.8) 10.08
2012.07 133.9 66.5 57.7 (-1.2) 13.90
2012.08 115.4 63.0 (58.6 projected, +0.9) 7.96
2012.09 122.9 61.4 (58.7 projected, +0.1) 8.07
2012.10 123.3 53.3 (58.1 projected, -0.6) 9.97
2012.11 121.3 61.4 (57.4 projected, -0.7) 7.08
2012.12 108.6 40.8 (56.7 projected, -0.7) 3.44
2013.01 127.1 62.9 (56.0 projected, -0.7) 4.69
2013.02 104.6 (1) 29.5 (2A) / 51.6 (2B) / 38.2 (2C) (55.0 projected, -1.0) (5.34)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
