The geomagnetic field was very quiet on December 30. Solar wind speed at SOHO ranged between 288 and 359 km/s.
Solar flux measured at 20h UTC on 2.8 GHz was 142.9 (increasing 7.2 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 140.1. The Potsdam WDC planetary A index was 2 (STAR Ap - based on the mean of three hour interval ap indices: 2.0). Three hour interval K indices: 00100101 (planetary), 00211210 (Boulder).
The background x-ray flux was at the class B8 level.
At the time of counting spots (see image time) spots were observed in 13 active regions in 2K resolution (SN: 258) and 11 active regions in 1K resolution (SN: 192) SDO images on the visible solar disk.
Region 11931 [S14W83] was quiet and stable.
Region 11936 [S17W23] developed slowly and
was much less active than during the previous day. There is still a magnetic
delta structure centrally and a chance of M class flaring.
Region 11937 [S12E05] was quiet and stable.
Region 11938 [S13E24] was quiet and stable.
Spotted regions not numbered (or interpreted differently) by SWPC:
S2958 [S17W67] decayed significantly and has a simple
magnetic layout.
S2961 [S14W07] was quiet and stable.
S2965 [S28E29] was quiet and stable.
S2966 [S13E48] was quiet and stable.
New region S2971 [S23E58] emerged with a penumbra spot.
New region S2972 [S11E84] rotated partly into view.
New region S2973 [N09E77] rotated into view.
New region S2974 [S13W30] emerged with a few spots.
New region S2975 [S28W05] emerged with a penumbra spot.
December 28-30: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.
Coronal hole history (since October
2002)
Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago
A recurrent trans equatorial coronal hole (CH598) was in an Earth facing position on December 29-31.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is fair to good. Propagation on long distance northeast-southwest paths is poor.
The geomagnetic field is expected to be quiet on December 31 and quiet to active on January 1-3 due to effects from CH598.
| Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

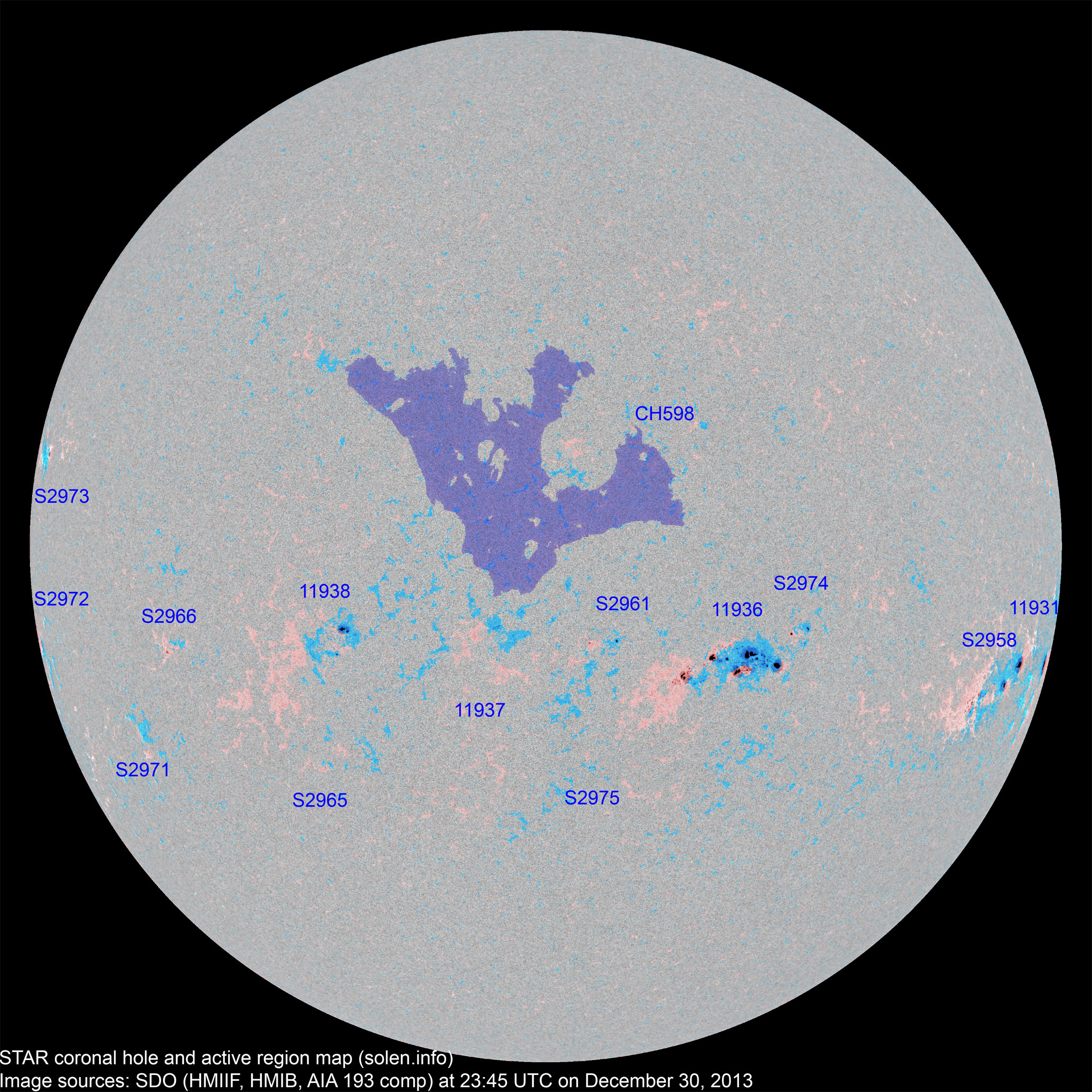

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
| Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC | STAR SDO | SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 11931 | 2013.12.18 | 1 | 1 | 1 | S14W87 | 0130 | HAX | HSX |
 |
 |
area: 0240 location: S14W83 |
| 11934 | 2013.12.20 | 9 | S17W68 | 0140 | EAC | see AR S2958 | |||||
| 11936 | 2013.12.22 2013.12.23 |
28 | 72 | 48 | S16W22 | 0180 | EAC | EAC |
 |
 |
beta-gamma-delta area: 0530 |
| 11935 | 2013.12.22 2013.12.23 |
S06W53 | plage | ||||||||
| S2941 | 2013.12.22 | N14W52 | plage | ||||||||
| 11939 | 2013.12.23 2013.12.29 |
S06W84 |
 |
plage | |||||||
| S2947 | 2013.12.24 | S21W01 | plage | ||||||||
| S2948 | 2013.12.24 | S30W25 |
 |
plage | |||||||
| S2949 | 2013.12.24 | N07W03 | plage | ||||||||
| S2950 | 2013.12.24 | N13W35 | plage | ||||||||
| 11937 | 2013.12.25 2013.12.26 |
3 | 13 | 7 | S12E05 | 0010 | BXO | BXO |
 |
 |
area: 0030 |
| S2953 | 2013.12.25 | S21W45 |
 |
plage | |||||||
| S2954 | 2013.12.25 | N20W56 | plage | ||||||||
| 11938 | 2013.12.26 2013.12.27 |
2 | 10 | 5 | S09E22 | 0050 | HAX | CAO |
 |
 |
area: 0080 |
| S2956 | 2013.12.26 | N10W32 | plage | ||||||||
| S2958 | 2013.12.27 | 17 | 12 | S17W67 | 0280 | CSI |
 |
 |
|||
| S2959 | 2013.12.27 | N18E26 |
 |
plage | |||||||
| S2960 | 2013.12.27 | S12W32 | plage | ||||||||
| S2961 | 2013.12.28 | 3 | 2 | S14W07 | 0025 | CRO |
 |
 |
|||
| S2965 | 2013.12.29 | 1 | S28E29 | 0002 | AXX |
 |
 |
||||
| S2966 | 2013.12.29 | 4 | 1 | S13E48 | 0014 | BXO |
 |
 |
|||
| S2967 | 2013.12.29 | S35E03 |
 |
plage | |||||||
| S2968 | 2013.12.29 | N23W20 |
 |
plage | |||||||
| S2971 | 2013.12.30 | 1 | 1 | S23E58 | 0003 | AXX |
 |
||||
| S2972 | 2013.12.30 | 1 | 1 | S11E84 | 0020 | HRX |
 |
||||
| S2973 | 2013.12.30 | 1 | 1 | N09E77 | 0020 | HRX |
 |
||||
| S2974 | 2013.12.30 | 3 | 3 | S13W30 | 0040 | DRO |
 |
||||
| S2975 | 2013.12.30 | 1 | S28W05 | 0002 | AXX |
 |
|||||
| Total spot count: | 43 | 128 | 82 | ||||||||
| Sunspot number: | 93 | 258 | 192 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 63 | 160 | 114 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 56 | 90 | 106 | k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K | |||||||
| Month | Average measured solar flux | International sunspot number (SIDC) | Smoothed sunspot number | Average ap (3) |
|---|---|---|---|---|
| 2011.11 | 153.5 (cycle peak) | 96.7 (cycle peak) | 61.1 (+1.2) | 5.55 |
| 2012.02 | 106.5 | 32.9 | 66.9 (+1.4) possible cycle 24 max |
8.81 |
| 2012.09 | 122.9 | 61.4 | 58.1 (-0.1) | 8.07 |
| 2012.10 | 123.3 | 53.3 | 58.6 (+0.5) | 9.97 |
| 2012.11 | 121.3 | 61.8 | 59.7 (+1.1) | 7.08 |
| 2012.12 | 108.6 | 40.8 | 59.6 (-0.1) | 3.44 |
| 2013.01 | 127.1 | 62.9 | 58.7 (-0.9) | 4.69 |
| 2013.02 | 104.3 | 38.0 | 58.4 (-0.3) | 6.11 |
| 2013.03 | 111.3 | 57.9 | 57.5 (-0.9) | 10.56 |
| 2013.04 | 124.8 | 72.4 | 57.9 (+0.4) | 5.40 |
| 2013.05 | 131.4 | 78.7 | 59.9 (+2.0) | 9.73 |
| 2013.06 | 110.1 | 52.5 | (62.2 projected, +2.3) | 12.60 |
| 2013.07 | 115.5 | 57.0 | (63.9 projected, +1.7) | 9.47 |
| 2013.08 | 114.6 | 66.0 | (64.8 projected, +0.9) | 8.27 |
| 2013.09 | 102.6 | 36.9 | (65.6 projected, +0.8) | 5.23 |
| 2013.10 | 132.1 | 85.6 | (64.9 projected, -0.7) | 7.71 |
| 2013.11 | 148.3 | 77.6 | (63.0 projected, -1.9) | 5.68 |
| 2013.12 | 147.8 (1) | 113.9 (2A) / 117.7 (2B) / 92.8 (2C) | (61.7 projected, -1.3) | (4.5) |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official SIDC international sunspot number is typically 30-50% lower. 2B)
Boulder SN current month
average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices.
Values in red are based on the definitive
international Potsdam
WDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
