Recent activity

The geomagnetic field was quiet to unsettled on April 13. Solar wind speed at SOHO ranged between 349 and 519 km/s. A solar wind shock was observed at SOHO at 22:24 UTC, the arrival of the CME observed on April 11. The CME arrived later than expected. The interplanetary magnetic field was predominantly northwards after the arrival of the CME and subsequently only a minor increase in geomagnetic activity was observed. IMF swung southwards after 05 UT on April 14 which will likely increase geomagnetic disturbance levels.

Solar flux measured at 20h UTC on 2.8 GHz was 125.1 (decreasing 0.6 over the last solar rotation). The Potsdam WDC planetary A index was 6 (STAR Ap - based on the mean of three hour interval ap indices: 5.6). Three hour interval K indices: 22110103 (planetary), 22122203 (Boulder).

The background x-ray flux was at the class B3 level.

At midnight UTC the visible solar disk had 9 spotted active regions (in 2K resolution SDO images).

Region 11714 [N12W80] was quiet and stable.

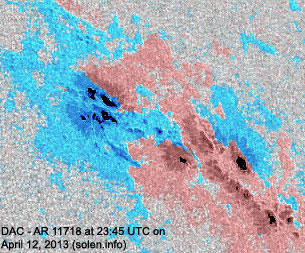

Region 11718 [N20W57] has polarity intermixing and could produce C flares and maybe a minor M class event. The region decayed further and the umbral area is unimpressive.

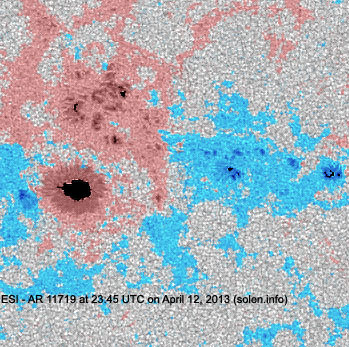

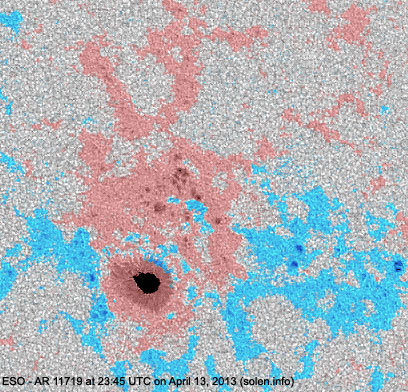

Region 11719 [N09W23] decayed further and was quiet. There were just traces of umbral area remaining in a few positive polarity spots.

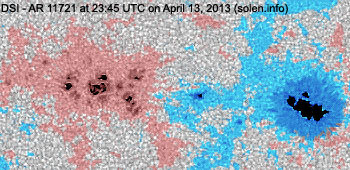

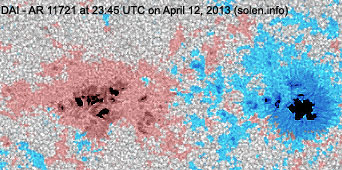

Region 11721 [S19W08] was quiet and stable. C flares are possible.
Region 11722 [S22E03] was quiet and stable.
New region 11723 [S18E49] emerged on April 12 and was numbered by SWPC the next day.
New region 11724 [S27E72] rotated partly into view on April 12 and got its NOAA number the next day.

Spotted regions not numbered by SWPC:

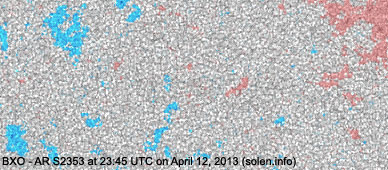

S2353 [N13W02] was quiet and stable.
New region S2354 [N11E23] emerged with a penumbra spot in an old plage area.

Coronal mass ejections (CMEs)

April 12-13: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.

Coronal holes

Coronal hole history (since October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A small trans equatorial coronal hole (CH565) could rotate into an Earth facing position on April 14. CH565 decreased in size on April 13.

Coronal hole map

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be quiet to active on April 14 due to CME effects with a chance of minor storm intervals. Quiet conditions are likely on April 15-17 becoming quiet to unsettled on April 18 due to weak effects from CH565.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

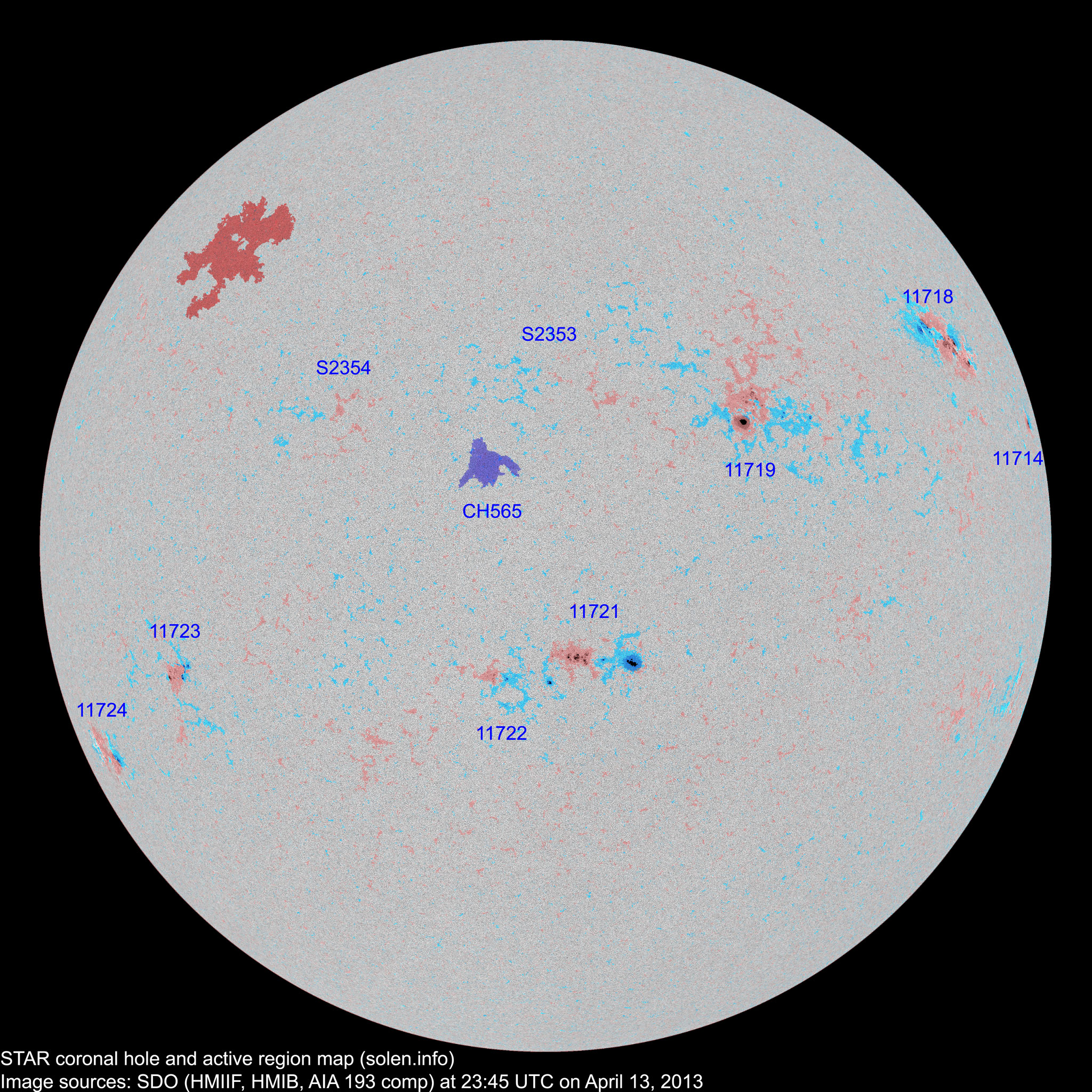

Active solar regions

(Click on image for 2K resolution) Compare to the previous day's image. 0.5k image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC STAR SDO SWPC STAR Current Previous
2K 1K
11716 2013.04.01
2013.04.05
      S20W79

plage

11714 2013.04.01
2013.04.02
1 1 1 N14W79 0040 HSX HSX location: N12W80
S2337 2013.04.04       S08W49           plage
11717 2013.04.05       S12W43

plage

11718 2013.04.05 25 31 14 N21W58 0350 DKC DAC

beta-gamma

11719 2013.04.05 26 33 13 N10W28 0140 DSI ESI beta-gamma

location: N10W12

approaching CSI classification



S2343 2013.04.07       N11W56         plage
11721 2013.04.09
2013.04.10
18 31 14 S18W07 0190 DSI DSI



11722 2013.04.09
2013.04.10
4 14 3 S21E03 0020 CRO CRO
S2348 2013.04.10       N07W40         plage
S2349 2013.04.10       S11W39           plage
S2350 2013.04.11       S24E46           plage
11724 2013.04.12
2013.04.13
2 6 2 S27E70 0040 HAX CRO
11723 2013.04.12
2013.04.13
2 14 8 S18E49 0010 BXO DRI
S2353 2013.04.12   3   N13W02 0007   BXO
S2354 2013.04.13   1   N11E23 0002   AXX
Total spot count: 78 134 55
Sunspot number: 148 224 125  (total spot count + 10 * number of spotted regions)
Weighted SN: 111 162 83  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 89 78 69 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2011.11 153.5 (cycle max) 96.7 (cycle max) 61.1 (+1.2) 5.55
2012.01 132.5 58.3 65.5 (+2.1) 7.15
2012.02 106.5 32.9 66.9 (+1.4)
possible cycle 24 max
8.81
2012.03 114.7 64.3 66.8 (-0.1) 16.08
2012.04 113.0 55.2 64.6 (-2.2) 10.10
2012.05 121.5 69.0 61.7 (-2.9) 7.06
2012.06 119.6 64.5 58.9 (-2.8) 10.08
2012.07 133.9 66.5 57.7 (-1.2) 13.90
2012.08 115.4 63.0 58.1 (+0.4) 7.96
2012.09 122.9 61.4 58.1 (-0.0) 8.07
2012.10 123.3 53.3 (57.6 projected, -0.5) 9.97
2012.11 121.3 61.8 (56.9 projected, -0.7) 7.08
2012.12 108.6 40.8 (55.7 projected, -1.2) 3.44
2013.01 127.1 62.9 (54.3 projected, -1.4) 4.69
2013.02 104.3 38.0 (53.3 projected, -1.0) 6.11
2013.03 111.3 57.9 (52.2 projected, -1.1) 10.56
2013.04 133.8 (1) 55.3 (2A) / 127.7 (2B) / 59.7 (2C) (51.0 projected, -1.2) (3.59)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
