Last major update issued on October 21, 2012 at 05:45 UTC.
[Solar and geomagnetic data - last month (updated
[Solar wind and electron fluence charts (updated daily)]
[Solar cycles 21-24 (last update October 3, 2012)] [Cycle 24 progress (last update October 1, 2012) ]
[Solar cycles 1-20]
[Graphical comparison of cycles 21, 22, 23 and 24 (last update October 3, 2012)]
[Graphical comparison of cycles 10, 12, 13, 14, 16 and 24 (last update October 3, 2012)]
[Historical solar and geomagnetic data charts 1954-2006 (last update April 5, 2007)]
[Archived reports since January 2003 (last update October 1, 2012)]
[POES auroral activity level since October
2009 - updated October 7, 2012]
[Solar polar fields vs solar cycles - updated June 27, 2011]
The geomagnetic field was very quiet on October 20. Solar wind speed at SOHO ranged between 323 and 419 km/s.
Solar flux measured at 20h UTC on 2.8 GHz was 151.4 (increasing 17.8 over the last solar rotation). The Potsdam WDC planetary A index was 2 (STAR Ap - based on the mean of three hour interval ap indices: 2.4). Three hour interval K indices: 00110011 (planetary), 00002220 (Boulder).
The background x-ray flux was at the class B7 level.
At midnight UTC the visible solar disk had 12 spotted active regions (in 2K resolution SDO images).
Region 11590 [S30W55] reemerged with tiny spots.

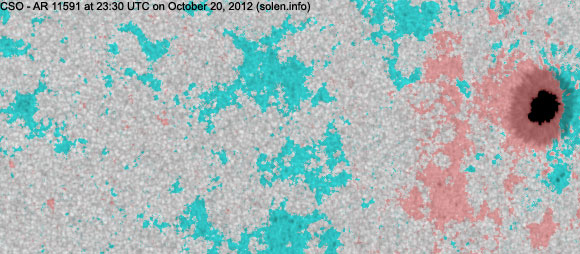

Region 11591 [N07W33] developed slowly and was quiet.

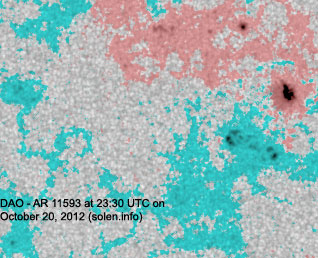

Region 11593 [N15E09] developed slowly and quietly.

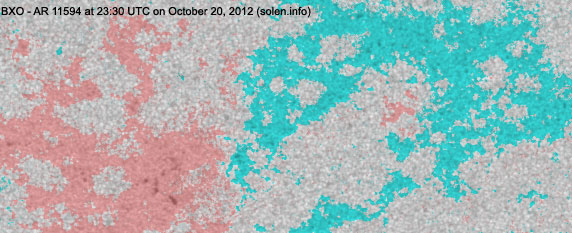

Region 11594 [S28W03] decayed slowly and quietly.
Region 11596 [N06E46] was mostly quiet and stable.
Region 11597 [S22W57] decayed slowly and quietly.
New region 11598 [S12E83] rotated partly into view and could produce further major flares. The region was the source of an impulsive major M9.0 flare at 18:14 UTC.
Spotted regions not numbered by NOAA/SWPC:
S1997 [N06E08] was quiet and stable.
S1999 [N07E20] was quiet and stable.
S2000 [N10E02] was quiet and stable.
S2001 [S20E08] was quiet and stable.
New region S2002 [S18W23] emerged with tiny spots.
October 17-19: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.
Coronal hole history (since October
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago
A northern hemisphere coronal hole (CH542) was in an Earth facing position on October 17-18.
The above coronal hole map is based on a method where coronal holes are detected automatically. While the method may need some fine tuning, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using this method, the extent and intensity of both CHs are consistent with other data sources.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is good. Propagation on long distance northeast-southwest paths is poor to fair.
The geomagnetic field is expected to be quiet to unsettled on October 21-22 due to effects from CH542 and quiet on October 23-24.
|Coronal holes (1)||Coronal mass ejection (2)||M and X class flares (3)|
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

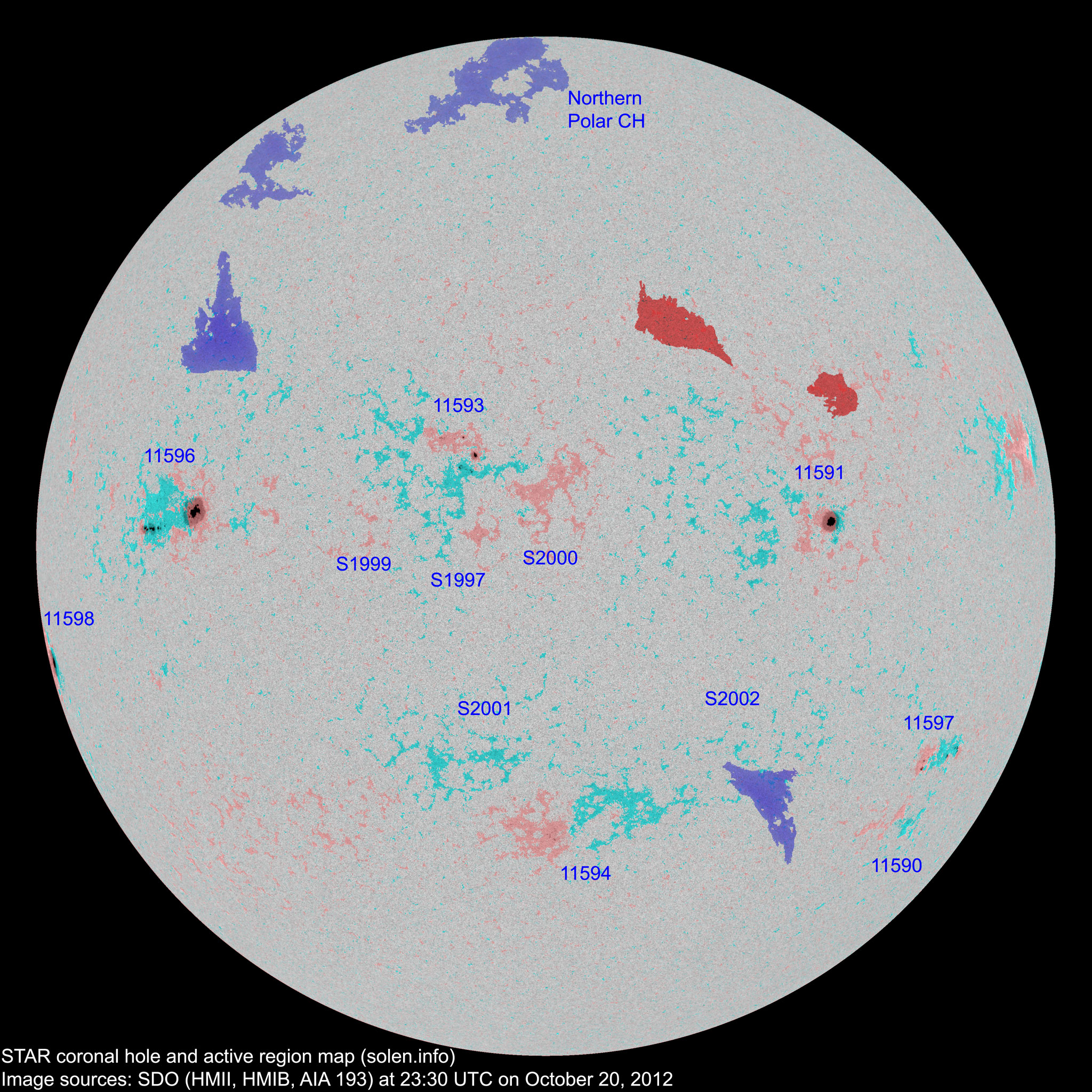

Click on image for higher resolution image) Compare to the previous day's image. 0.5k image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
|Active region||Date numbered
|Spot count||Location at midnight||Area||Classification||SDO / HMI 4K continuum
image with magnetic polarity overlay
Erroneous data from SWPC
|6||4||S31W53||0120||CSO||BXO||SWPC data obviously in error|
|Total spot count:||32||88||32|
|Sunspot number:||112||208||102||(total spot count + 10 * number of spotted regions)|
|Weighted SN:||72||121||65||(Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)|
|Relative sunspot number (Wolf number):||67||73||56||k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K|
|Month||Average measured solar flux||International sunspot number (SIDC)||Smoothed sunspot number||Average ap
possible cycle 24 max
|2012.04||113.0||55.2||(64.7 projected, -2.1)||10.10|
|2012.05||121.5||69.0||(61.8 projected, -2.9)||7.06|
|2012.06||119.6||64.5||(59.9 projected, -1.9)||10.08|
|2012.07||133.9||66.5||(60.0 projected, +0.1)||13.90|
|2012.08||115.4||63.1||(62.0 projected, +2.0)||7.96|
|2012.09||122.9||61.5||(63.6 projected, +1.6)||8.07|
|2012.10||121.4 (1)||50.3 (2A) / 78.0 (2B) / 57.8 (2C)||(63.5 projected, -0.1)||(15.17)|
1) Running average based on the daily 20:00 UTC observed solar flux value at
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international Potsdam WDC ap indices.
This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
