The geomagnetic field was quiet to unsettled on October 17. Solar wind speed at SOHO ranged between 401 and 561 km/s under the influence of a high speed stream from CH541.
Solar flux measured at 20h UTC on 2.8 GHz was 135.0 (increasing 17.6 over the last solar rotation). The Potsdam WDC planetary A index was 8 (STAR Ap - based on the mean of three hour interval ap indices: 8.5). Three hour interval K indices: 32312113 (planetary), 23212312 (Boulder).
The background x-ray flux was at the class B4 level.
At midnight UTC the visible solar disk had 14 spotted active regions (in 2K resolution SDO images).
Region 11586 [S13W68] was quiet and stable.
Region 11589 [N12W31] decayed slowly and quietly.
Region 11590 [S30W16] decayed slowly and quietly.
Region 11591 [N07E06] decayed slowly and quietly
Region 11592 [N23W17] decayed and could soon become spotless.
Region 11593 [N16E49] was quiet and stable.
Region 11594 [S27E36] decayed slowly and quietly.
New region 11595 [S14W42] emerged on October 11 and was numbered by SWPC
6 days later. The region decayed on October 17.
Spotted regions not numbered by NOAA/SWPC:
New region S1991 [N07E85] rotated partly into view with a large
penumbra. The region was the most active during the day and could be capable of
producing an M class event.
New region S1992 [S16E36] emerged with a tiny spot.
New region S1993 [N18E13] emerged with several spots.
New region S1994 [S22W16] emerged with many spots.
New region S1995 [N12W58] emerged with a tiny spot.
New region S1996 [N41W47] emerged with a tiny high latitude spot.
October 15-17: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.
Coronal hole history (since October
2002)
Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago
A northern hemisphere coronal hole (CH541) was Earth facing on October 13. Another northern hemisphere coronal hole (CH542) could rotate into an Earth facing position on October 17-18.
The above coronal hole map is based on a method where coronal holes are detected automatically. While the method may need some fine tuning, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using this method, the extent and intensity of both CHs are consistent with other data sources.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is fair. Propagation on long distance northeast-southwest paths is poor to fair.
The geomagnetic field is expected to be quiet to unsettled on October 18 due to effects from CH541. Quiet conditions are likely on October 19-20 becoming quiet to unsettled on October 21 due to effects from CH542
Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

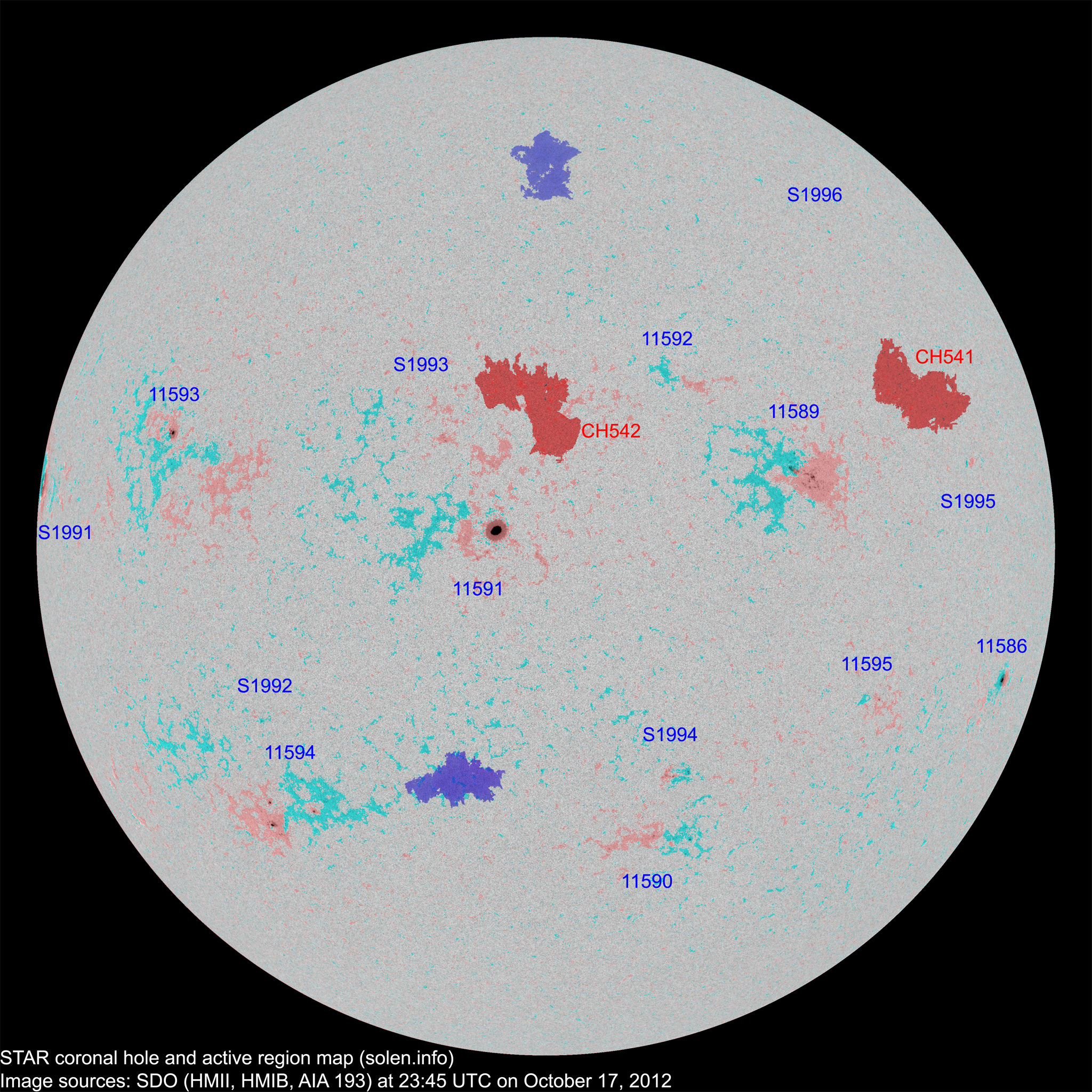

Click on image for higher resolution image) Compare to the previous day's image. 0.5k image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | ||||
---|---|---|---|---|---|---|---|---|---|---|---|
SWPC | STAR SDO | SWPC | STAR | Current | Previous | ||||||
2K | 1K | ||||||||||
11586 | 2012.10.06 2012.10.07 |
1 | 1 | 1 | S14W67 | 0060 | HSX | HSX | |||
11589 | 2012.10.09 | 14 | 31 | 13 | N13W32 | 0090 | DSI | DRI |
|
||
11590 | 2012.10.10 2012.10.11 |
3 | 8 | 3 | S30W18 | 0010 | CRO | BXO | |||
11591 | 2012.10.11 2012.10.12 |
6 | 9 | 2 | N07E07 | 0130 | DSO | CHO |
area: 0260 |
||
11595 | 2012.10.11 2012.10.17 |
1 | 2 | 1 | S14W41 | 0010 | AXX | AXX | |||
11592 | 2012.10.12 2012.10.14 |
3 | N24W20 | 0000 | BXO | ||||||
11594 | 2012.10.14 2012.10.15 |
4 | 13 | 5 | S27E33 | 0050 | DAO | CRO | |||
S1984 | 2012.10.14 | N03W26 | plage | ||||||||
S1985 | 2012.10.14 | N05W50 | plage | ||||||||
11593 | 2012.10.15 | 1 | 4 | 2 | N17E49 | 0040 | HAX | CAO | |||
S1986 | 2012.10.15 | N22E11 | plage | ||||||||
S1987 | 2012.10.15 | N08E46 | plage | ||||||||
S1988 | 2012.10.15 | S12W07 | plage | ||||||||
S1989 | 2012.10.15 | S25W31 | plage | ||||||||
S1990 | 2012.10.16 | N20W02 | plage | ||||||||
S1991 | 2012.10.17 | 1 | 1 | N07E85 | 0300 | HKX | |||||
S1992 | 2012.10.17 | 1 | S16E36 | 0000 | AXX | ||||||
S1993 | 2012.10.17 | 6 | 1 | N18E13 | 0000 | BXO | |||||
S1994 | 2012.10.17 | 10 | 3 | S22W16 | 0010 | BXO | |||||
S1995 | 2012.10.17 | 1 | S12W58 | 0000 | AXX | ||||||
S1996 | 2012.10.17 | 1 | N41W47 | 0000 | AXX | ||||||
Total spot count: | 30 | 91 | 32 | ||||||||
Sunspot number: | 100 | 231 | 132 | (total spot count + 10 * number of spotted regions) | |||||||
Weighted SN: | 58 | 127 | 68 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
Relative sunspot number (Wolf number): | 60 | 81 | 73 | k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K |
Month | Average measured solar flux | International sunspot number (SIDC) | Smoothed sunspot number | Average ap (3) |
---|---|---|---|---|
2011.08 | 101.7 | 50.6 | 59.0 (+1.8) | 7.26 |
2011.09 | 133.8 | 78.0 | 59.5 (+0.5) | 12.27 |
2011.10 | 137.3 | 88.0 | 59.9 (+0.4) | 8.28 |
2011.11 | 153.5 | 96.7 | 61.1 (+1.2) | 5.55 |
2011.12 | 141.3 | 73.0 | 63.4 (+2.3) | 3.78 |
2012.01 | 132.5 | 58.3 | 65.5 (+2.1) | 7.15 |
2012.02 | 106.5 | 32.9 | 66.9 (+1.4) possible cycle 24 max |
8.81 |
2012.03 | 114.7 | 64.3 | 66.8 (-0.1) | 16.08 |
2012.04 | 113.0 | 55.2 | (64.7 projected, -2.1) | 10.10 |
2012.05 | 121.5 | 69.0 | (61.8 projected, -2.9) | 7.06 |
2012.06 | 119.6 | 64.5 | (59.9 projected, -1.9) | 10.08 |
2012.07 | 133.9 | 66.5 | (60.0 projected, +0.1) | 13.90 |
2012.08 | 115.4 | 63.1 | (62.0 projected, +2.0) | 7.96 |
2012.09 | 122.9 | 61.5 | (63.6 projected, +1.6) | 8.07 |
2012.10 | 117.5 (1) | 39.5 (2A) / 72.1 (2B) / 56.1 (2C) | (63.5 projected, -0.1) | (17.14) |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official SIDC international sunspot number is typically 30-50% lower. 2B)
Boulder SN current month
average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices.
Values in red are based on the definitive
international Potsdam
WDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
