Recent activity

The geomagnetic field was quiet on October 16. Solar wind speed at SOHO ranged between 336 and 499 km/s. A high speed stream from CH541 arrived near 23h UTC at SOHO with wind speed increasing to near 500 km/s. A mino

Solar flux measured at 20h UTC on 2.8 GHz was 137.0 (increasing 27.2 over the last solar rotation). The Potsdam WDC planetary A index was 6 (STAR Ap - based on the mean of three hour interval ap indices: 6.0). Three hour interval K indices: 22221212 (planetary), 12312211 (Boulder).

The background x-ray flux was at the class B4 level.

At midnight UTC the visible solar disk had 10 spotted active regions (in 2K resolution SDO images).

Region 11586 [S13W55] was quiet and stable.
Region 11589 [N12W17] decayed further losing spots and penumbral area. No mature penumbra was observed.
Region 11590 [S30W05] decayed slowly and quietly.
Region 11591 [N06E19] was mostly quiet and stable.
Region 11592  [N23W03] decayed slowly and quietly.
Region 11593 [N16E63] was quiet and stable.
Region 11594 [S27E48] was quiet. In the presence of minor polarity intermixing there is a chance of C class flaring.

Spotted regions not numbered by NOAA/SWPC:
S1977 [S14W27] developed slowly and quietly.
S1988 [S12E06] lost the spot from the previous day and gained another further north.
New region S1990 [N20E11] emerged with tiny spots.

Coronal mass ejections (CMEs)

October 14-16: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.

Coronal holes

Coronal hole history (since October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A  northern hemisphere coronal hole (CH541) was Earth facing on October 13. Another northern hemisphere coronal hole (CH542) could rotated into an Earth facing position on October 17-18.

Coronal hole map

The above coronal hole map is based on a method where coronal holes are detected automatically. While the method may need some fine tuning, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using this method, the extent and intensity of both CHs are consistent with other data sources.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor to fair.

Forecast

The geomagnetic field is expected to be quiet to unsettled on October 17-18 due to effects from CH541, isolated active intervals are possible. Quiet conditions are likely on October 19-20 becoming quiet to unsettled on October 21 due to effects from CH542

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Active solar regions

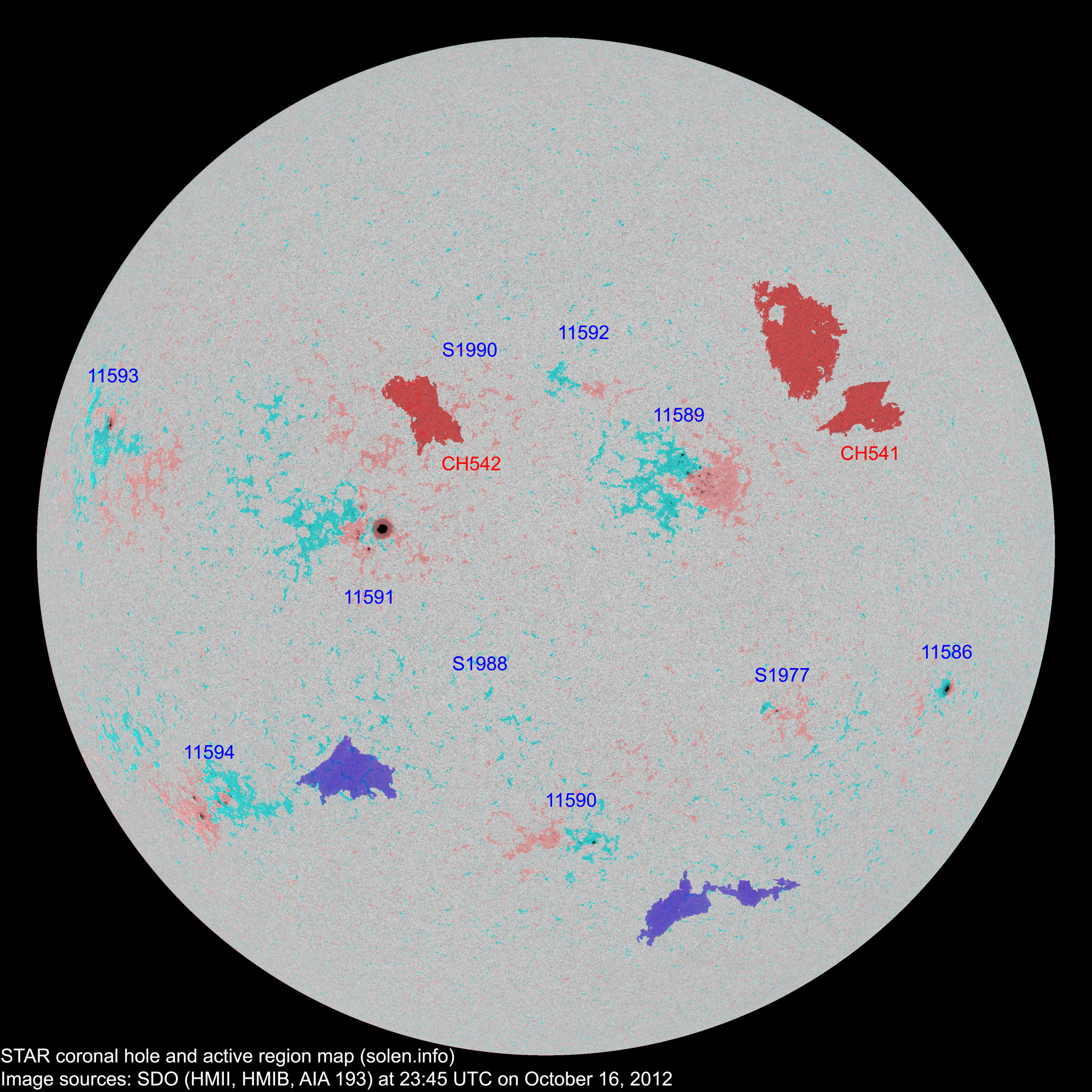

Click on image for higher resolution image) Compare to the previous day's image. 0.5k image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC STAR SDO SWPC STAR Current Previous
2K 1K
11586 2012.10.06
2012.10.07
1 1 1 S12W54 0040 HSX HSX
11589 2012.10.09 13 38 16 N12W19 0080 DRI DRI



11590 2012.10.10
2012.10.11
7 5 4 S30W07 0020 CRO CRO
11591 2012.10.11
2012.10.12
6 17 7 N07E20 0190 DSO CHO beta-gamma

area: 0280

S1977 2012.10.11   2 2 S14W27 0010   CRO
11592 2012.10.12
2012.10.14
1 5 1 N22W08 0010 AXX BXO
S1979 2012.10.12       S24W57           plage
S1980 2012.10.12       N13W58           plage
11594 2012.10.14
2012.10.15
6 15 6 S26E47 0090 DAO CAO location: S28E63
S1984 2012.10.14       N03W13           plage
S1985 2012.10.14       N05W37           plage
11593 2012.10.15 3 3 2 N15E62 0060 HAX HAX
S1986 2012.10.15       N22E24         plage
S1987 2012.10.15       N08E59         plage
S1988 2012.10.15   1   S12E06 0000   AXX
S1989 2012.10.15       S25W18         plage
S1990 2012.10.16   2   N20E11 0000   AXX
Total spot count: 37 89 39
Sunspot number: 107 189 119  (total spot count + 10 * number of spotted regions)
Weighted SN: 58 123 73  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 64 66 65 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2011.08 101.7 50.6 59.0 (+1.8) 7.26
2011.09 133.8 78.0 59.5 (+0.5) 12.27
2011.10 137.3 88.0 59.9 (+0.4) 8.28
2011.11 153.5 96.7 61.1 (+1.2) 5.55
2011.12 141.3 73.0 63.4 (+2.3) 3.78
2012.01 132.5 58.3 65.5 (+2.1) 7.15
2012.02 106.5 32.9 66.9 (+1.4)
possible cycle 24 max
8.81
2012.03 114.7 64.3 66.8 (-0.1) 16.08
2012.04 113.0 55.2 (64.7 projected, -2.1) 10.10
2012.05 121.5 69.0 (61.8 projected, -2.9) 7.06
2012.06 119.6 64.5 (59.9 projected, -1.9) 10.08
2012.07 133.9 66.5 (60.0 projected, +0.1) 13.90
2012.08 115.4 63.1 (62.0 projected, +2.0) 7.96
2012.09 122.9 61.5 (63.6 projected, +1.6) 8.07
2012.10 116.4 (1) 36.3 (2A) / 70.3 (2B) / 54.9 (2C) (63.5 projected, -0.1) (17.68)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
