The geomagnetic field was quiet to active on November 20. Solar wind speed at SOHO ranged between 350 and 477 km/s increasingly under the influence of a high speed coronal hole stream.
Solar flux measured at 20h UTC on 2.8 GHz was 141.2 (increasing 5.6 over the last solar rotation). The Potsdam WDC planetary A index was 15 (STAR Ap - based on the mean of three hour interval ap indices: 14.6). Three hour interval K indices: 33222343 (planetary), 23232333 (Boulder).
The background x-ray flux was at the class B5 level.
At midnight UTC the visible solar disk had 10 spotted active regions (in 2K resolution SDO images).
Region 11613 [S23W58] was quiet and stable.
Region 11614 [N14W47] decayed slowly and could soon become spotless.
Region 11616 [N20W16] decayed slowly and quietly.
Region 11617 [S17W71] reemerged with several spots.
Region 11618 [N08E13] developed in the central and trailing spot sections
with significant polarity intermixing and a minor magnetic delta structure
forming. Further M class flares are likely. Flares:
long duration C3.0 peaking at 02:07, C3.9 at 06:33, C3.1 at 15:29 and M1.6 at
19:28 UTC.
Region 11619 [N10W12] decayed slowly and was mostly quiet.
New region 11620 [S12E57] rotated into view on November 18 and got its
NOAA number on Nov.20.
Spotted regions not numbered by NOAA/SWPC:
S2059 [N08E19] was quiet and stable.
S2065 [N13E03] lost the spots observed the previous day and gained a
trailing spot further north.
New region S2066 [S10E31] emerged with tiny spots.
The largest flare of the day, an impulsive M1.7 event at 12:41 UTC, occurred in a region at the northwest limb, probably AR 11611. A filament eruption near AR 11619 began at 11:12 UTC and was associated with an asymmetric full halo CME observed in LASCO imagery a few hours later. The CME was visible in STEREO imagery from 12:09 UTC
November 18-19: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.
November 20: A full halo CME was observed after noon following a filament
eruption near AR 11619. This CME could reach Earth on November 23.
Coronal hole history (since October
2002)
Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago
No obvious coronal holes are currently in or near Earth facing positions.

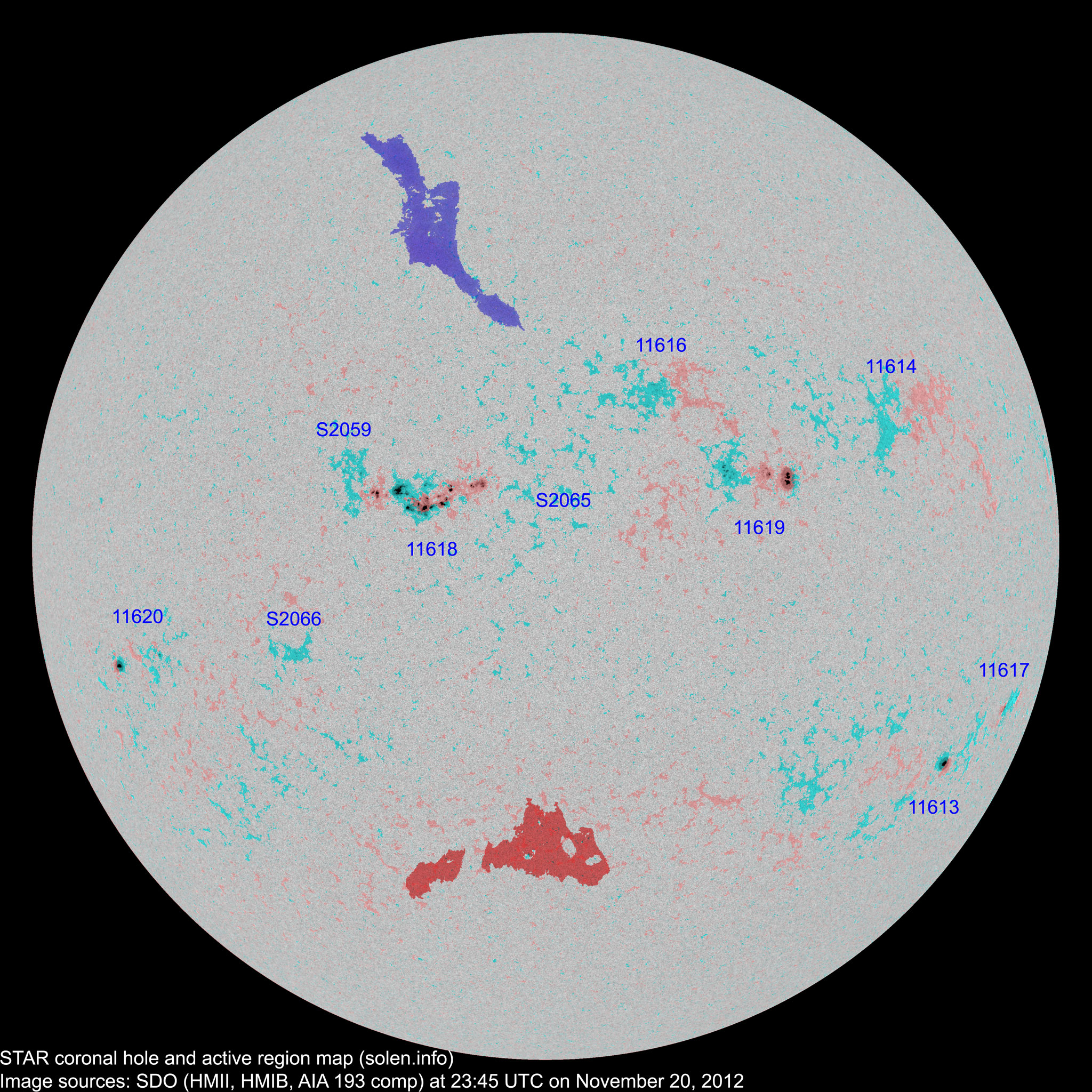

The above coronal hole map is based on a method where coronal holes are detected automatically. While the method may need some fine tuning, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using this method, the extent and intensity of both CHs are consistent with other data sources.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is fair to good.
The geomagnetic field is expected to be quiet to unsettled on November 21-22 due to CH effects and quiet to active on November 23-24 due to CME effects.
Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.
Click on image for higher resolution image) Compare to the previous day's image. 0.5k image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | ||||
---|---|---|---|---|---|---|---|---|---|---|---|
SWPC | STAR SDO | SWPC | STAR | Current | Previous | ||||||
2K | 1K | ||||||||||
11611 | 2012.11.07 2012.11.08 |
1 | N11W95 | 0030 | HSX |
rotated out of view |
|||||
11612 | 2012.11.08 | 1 | N06W85 | 0010 | AXX | spotless | |||||
11613 | 2012.11.09 2012.11.11 |
1 | 1 | 1 | S24W58 | 0050 | HSX | HSX |
area: 0140 |
||
11614 | 2012.11.10 2012.11.11 |
4 | N14W48 | 0000 | BXO |
|
|||||
11615 | 2012.11.11 | N07W62 | plage | ||||||||
11617 | 2012.11.13 2012.11.16 |
4 | 2 | S18W74 | 0010 | BXO | location: S17W71 | ||||
11616 | 2012.11.13 2012.11.14 |
3 | 8 | 2 | N19W14 | 0010 | BXO | BXO | area: 0010 | ||
S2051 | 2012.11.14 | S12W41 | plage | ||||||||
S2053 | 2012.11.14 | S33W33 | plage | ||||||||
S2055 | 2012.11.14 | S27W26 | plage | ||||||||
11618 | 2012.11.15 2012.11.17 |
29 | 31 | 22 | N08E14 | 0270 | EKC | EAC |
beta-gamma-delta area: 0450 |
||
11619 | 2012.11.15 2012.11.17 |
13 | 19 | 9 | N09W25 | 0150 | DSO | DHO |
area: 0320 |
||
S2059 | 2012.11.16 | 5 | 4 | N08E19 | 0050 | CRO | |||||
S2060 | 2012.11.17 | S13E10 | plage | ||||||||
S2061 | 2012.11.18 | S33E20 | plage | ||||||||
11620 | 2012.11.18 2012.11.20 |
1 | 5 | 2 | S08E59 | 0040 | CSO | HSX |
area: 0090 location: S12E57 |
||
S2064 | 2012.11.19 | S21E59 | plage | ||||||||
S2065 | 2012.11.19 | 1 | N13E03 | 0000 | AXX | ||||||
S2066 | 2012.11.20 | 2 | S10E31 | 0000 | AXX | ||||||
Total spot count: | 49 | 80 | 42 | ||||||||
Sunspot number: | 119 | 180 | 112 | (total spot count + 10 * number of spotted regions) | |||||||
Weighted SN: | 79 | 108 | 70 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
Relative sunspot number (Wolf number): | 71 | 63 | 62 | k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K |
Month | Average measured solar flux | International sunspot number (SIDC) | Smoothed sunspot number | Average ap (3) |
---|---|---|---|---|
2011.09 | 133.8 | 78.0 | 59.5 (+0.5) | 12.27 |
2011.10 | 137.3 | 88.0 | 59.9 (+0.4) | 8.28 |
2011.11 | 153.5 | 96.7 | 61.1 (+1.2) | 5.55 |
2011.12 | 141.3 | 73.0 | 63.4 (+2.3) | 3.78 |
2012.01 | 132.5 | 58.3 | 65.5 (+2.1) | 7.15 |
2012.02 | 106.5 | 32.9 | 66.9 (+1.4) possible cycle 24 max |
8.81 |
2012.03 | 114.7 | 64.3 | 66.8 (-0.1) | 16.08 |
2012.04 | 113.0 | 55.2 | 64.6 (-2.2) | 10.10 |
2012.05 | 121.5 | 69.0 | (61.2 projected, -3.4) | 7.06 |
2012.06 | 119.6 | 64.5 | (58.8 projected, -2.4) | 10.08 |
2012.07 | 133.9 | 66.5 | (58.6 projected, -0.2) | 13.90 |
2012.08 | 115.4 | 63.1 | (60.4 projected, +1.8) | 7.96 |
2012.09 | 122.9 | 61.5 | (61.8 projected, +1.4) | 8.07 |
2012.10 | 123.3 | 53.3 | (61.5 projected, -0.3) | 9.97 |
2012.11 | 120.9 (1) | 63.1 (2A) / 94.7 (2B) / 56.7 (2C) | (61.2 projected, -0.3) | (9.26) |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official SIDC international sunspot number is typically 30-50% lower. 2B)
Boulder SN current month
average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices.
Values in red are based on the definitive
international Potsdam
WDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
