Recent activity

The geomagnetic field was quiet to unsettled on May 2. Solar wind speed at SOHO ranged between 271 and 350 km/s. A weak solar wind shock was observed at 00:59 UTC on May 3 at SOHO, likely the arrival of the CME observed late on April 28.

Solar flux measured at 20h UTC on 2.8 GHz was 115.5 (increasing 14.6 over the last solar rotation). The Potsdam WDC planetary A index was 6 (STAR Ap - based on the mean of three hour interval ap indices: 5.8). Three hour interval K indices: 22111013 (planetary), 11111213 (Boulder).

The background x-ray flux is at the class B3 level.

At midnight UTC the visible solar disk had 11 spotted active regions (in 2K resolution SDO images).

Region 11467 [N15W31] was quiet and stable.
Region 11469 [S19W41] decayed slowly and quietly.
Region 11470 [S17E11] developed slowly and was quiet.
Region 11471 [S21E18] decayed slowly and currently has a fairly simpe magnetic layout.
Region 11472 [S27E12] decayed slowly and was quiet.
Region 11473 [S20W37] decayed slowly and quietly.
New region 11474 [N15E68] rotated into view at the northeast limb on May 1 and got an SWPC number the next day.

Spotted active regions not numbered by NOAA/SWPC:
S1611 [S26W34] developed significantly and was the most active region on the visible disk. Flares: C2.2 at 18:05, C2.1 at 19:02 UTC
S1621 [N17E03] lost the leading polarity spot and gained a few trailing polarity spots.
New region S1625 [N06E80] rotated into view with a single spot.
New region S1626 [S28E16] emerged with a tiny spot.

Coronal mass ejections (CMEs)

April 30 - May 2: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.

Coronal holes

Coronal hole history (since October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A recurrent trans equatorial coronal hole (CH515) will likely rotate into an Earth facing position on May 5-6.

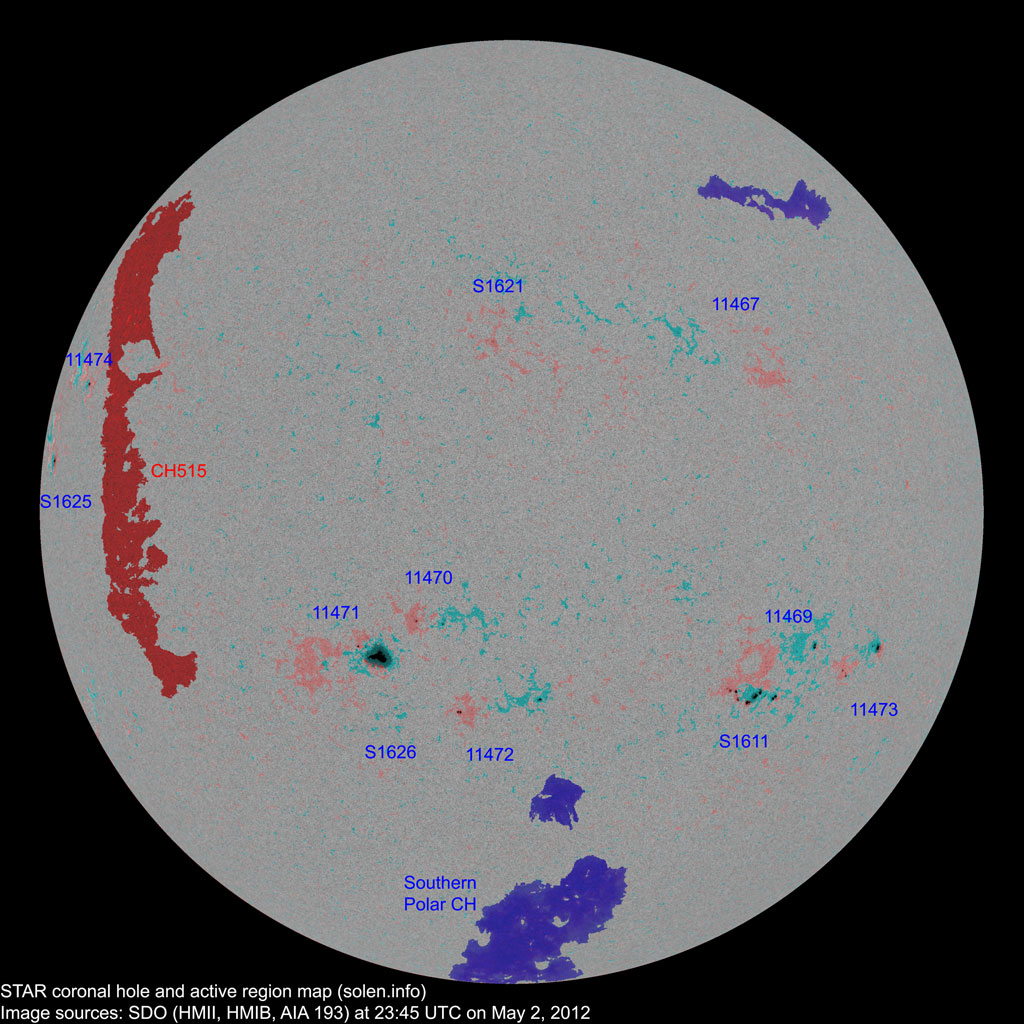

The above coronal hole map is based on a method where coronal holes are detected automatically. While the method may need some fine tuning, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using this method, the extent and intensity of both CHs are consistent with other data sources.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is fair to good.

Forecast

The geomagnetic field is expected to be quiet to active on May 3 due to weak CME effects. Quiet conditions are likely on May 4-5.

1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Active solar regions

Click on image for higher resolution image) Compare to the previous day's image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region	Date numbered detected	Spot count			Location at midnight	Area	Classification		SDO / HMI 4K continuum image with magnetic polarity overlay		Comment
		SWPC	STAR SDO				SWPC	STAR	Current	Previous
			2K	1K
11469	2012.04.23 2012.04.24	12	11	6	S23W39	0140	ESO	CRO			location: S19W41 area: 0020 SWPC has S1611 and 11469 as one region
11467	2012.04.24	3	8	1	N13W35	0010	BXO	BXO			location: N15W31
S1611	2012.04.25		15	10	S26W34	0140		DAI
11471	2012.04.27 2012.04.28	8	17	7	S21E19	0320	EHO	CKO
11470	2012.04.27 2012.04.28	3	6	3	S15E07	0010	BXO	CRO			location: S17E11
S1616	2012.04.27				N04W56						plage
S1618	2012.04.28				N21E01						plage
11472	2012.04.29	7	10	3	S28E01	0050	ESO	ERO
S1619	2012.04.29				S13W20						plage
S1621	2012.04.30		3	1	N17E03	0000		AXX
11473	2012.05.01	5	7	4	S21W53	0060	DSO	DSO
11474	2012.05.01 2012.05.02	1	1	1	N14E71	0010	HSX	HRX			location: N15E68
S1623	2012.05.01				S41W33						plage
S1624	2012.05.01				N13W48						plage
S1625	2012.05.02		1	1	N06E80	0040		HSX
S1626	2012.05.02		1		S28E16	0000		AXX
Total spot count:		39	80	37
Sunspot number:		109	190	137	(total spot count + 10 * number of spotted regions)
Weighted penumbral SN:		69	117	74	(Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number):		65	67	75	k * (sunspot number). k = 0.6 for SWPC, k = 0.35 (changed from 0.45 on March 1, 2011) for STAR SDO 2K, k = 0.55 for STAR SDO 1K

Monthly solar cycle data

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Month average to date.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
