The geomagnetic field was unsettled to severe storm on March 7. Solar wind speed at SOHO ranged between 344 and 578 km/s. Two CMEs arrived during the day. The full halo CME observed on March 4 caused a solar wind shock at SOHO at 03:27 UTC. The interplanetary magnetic field swung strongly southwards and caused minor to major geomagnetic storm conditions until the arrival of the next CME. The full halo CME observed on March 5 arrived at SOHO at 12:01 UTC. This CME intensified geomagnetic storming to severe storm levels.
Solar flux measured at 20h UTC on 2.8 GHz was 135.7 (increasing 36.5 over the last solar rotation). The planetary A index was 64 (STAR Ap - based on the mean of three hour interval ap indices: 63.9). Three hour interval K indices: 35667744 (planetary), 35666533 (Boulder).
The background x-ray flux is at the class B7 level.
At midnight UTC the visible solar disk had 7 spotted active regions (in 2K resolution SDO images).
Region 11428 [S17W04] lost a few spots and still has slight polarity
intermixing. A minor M class flare is possible. The region finally produced a
flare early on March 8 (C7.2 at 02:53 UTC)
Region 11429 [N17E16] extended longitudinally with a northeastern
penumbra splitting off from the huge penumbra. That penumbra is currently nearly
10 degrees wide and contains multiple magnetic delta structures. Further X class flares are
possible. Flares: X5.4/3B at 00:24 and X1.3
at 01:14 (wrongly attributed to region 11430 by SWPC) UTC. Both X class events
were associated with huge, wide and fast full halo CMEs. Mass ejection continued

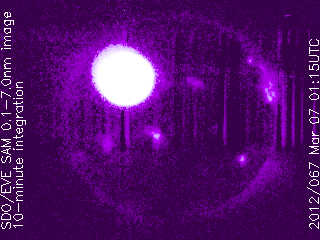

for many hours after the initial eruption. The SDO/EVE image below displays the
intensity of the X1.3 flare. Notice that the circular area nearly fully overlaps
the weakening emissions from the X5.4 flare.
Region 11430 [N20W00] developed in the leading spot section. There is
still weak polarity intermixing.
Region 11431 [S27W62] decayed slowly and quietly.
Spotted regions not reported by NOAA/SWPC:
[S1512] emerged in the southeast quadrant on March 5. Location at midnight:
S17E23
[S1513] emerged in the southeast quadrant on March 7. Location at
midnight: S22E46
[S1514] emerged in the northeast quadrant on March 7. Location at
midnight: N12E37
Minor update added at 11:05 UTC: The expected CME reached ACE near 10:40 UTC and should impact Earth within minutes. Initially the interplanetary magnetic field is very strong and mostly northwards.
Minor update added at 13:50 UTC: The geomagnetic field has so far been at minor storm levels. The total IMF field has weakened considerably since the previous update with few and mostly weak southernly excursions. Otherwise region 11429 is decaying with the main penumbra fragmenting further.
March 5: Another full halo CME was observed after the X1 event. The CME reached Earth on March 7.
March 6: No obviously Earth directed CMEs were observed in LASCO and
STEREO imagery.
March 7: The X flares in region 11429 produced full halo CMEs that could
reach Earth before noon on March 8 and cause active to very severe geomagnetic storming.
Coronal hole history (since October
2002)
Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago

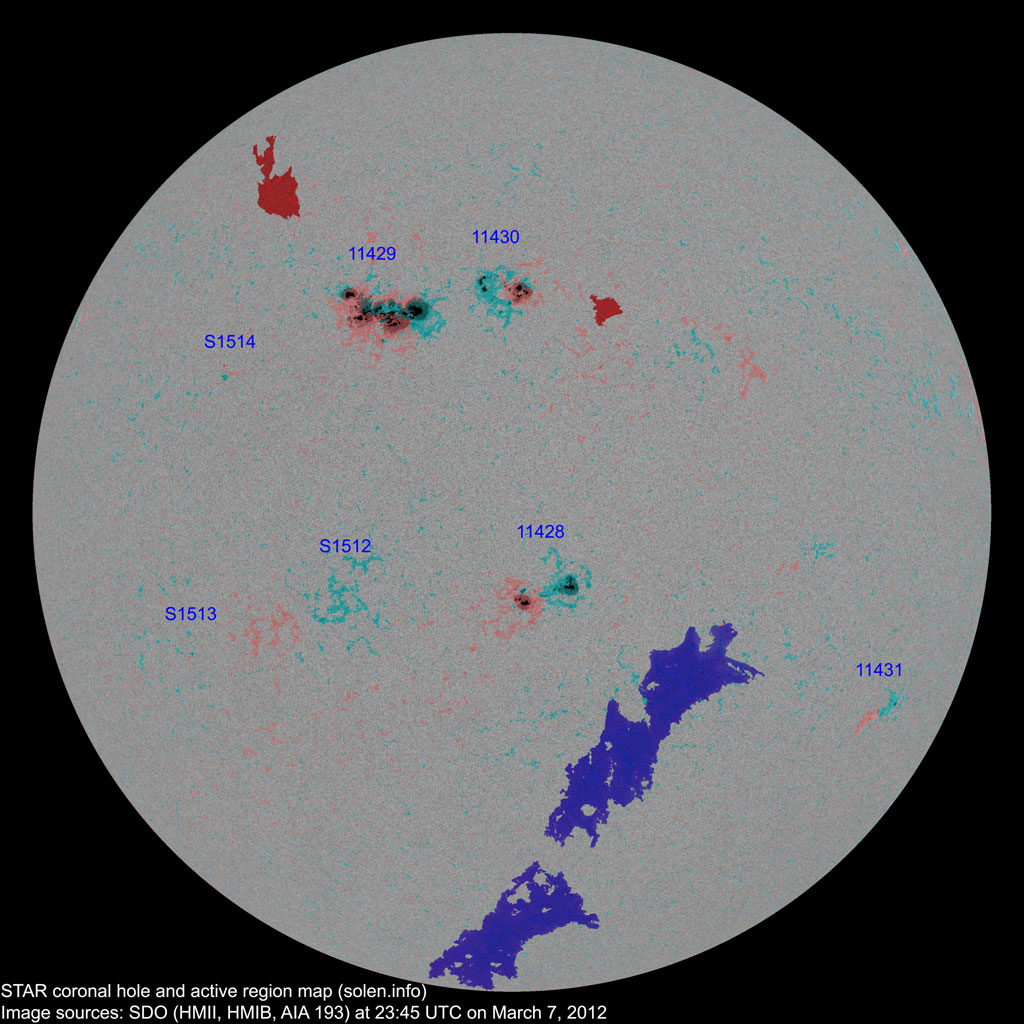

A recurrent, elongated coronal hole (CH506) in the southern hemisphere was in an Earth facing position on March 3-4.
The above coronal hole map is based on a method where coronal holes are detected automatically. While the method may need some fine tuning, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using this method, the extent and intensity of both CHs are consistent with other data sources.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is very poor to useless. Propagation on long distance northeast-southwest paths is poor.
The geomagnetic field is expected to be unsettled to very severe storm on March 8 and unsettled to severe storm on March 9 due to CME effects. Quiet to unsettled is likely on March 10 (assuming there are no further flares in region 11429).
Coronal holes (1) | Coronal mass ejections (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.
Click on image for higher resolution image) Compare to the previous day's image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | ||||
---|---|---|---|---|---|---|---|---|---|---|---|
SWPC | STAR SDO | SWPC | STAR | Current | Previous | ||||||
2K | 1K | ||||||||||
S1500 | 2012.02.29 | N10W26 | plage | ||||||||
11427 | 2012.02.29 2012.03.01 |
N15W87 |
plage |
||||||||
S1503 | 2012.03.01 | N12W58 | plage | ||||||||
S1505 | 2012.03.02 | S27W14 | plage | ||||||||
11428 | 2012.03.02 2012.03.03 |
16 | 22 | 14 | S17W05 | 0300 | DKO | DKO |
beta-gamma area: 0400 |
||
11429 | 2012.03.02 2012.03.03 |
28 | 54 | 22 | N17E15 | 1270 | DKC | EKC |
beta-gamma-delta area: 1700 reversed polarities |
||
S1509 | 2012.03.03 | S10W26 | plage | ||||||||
11430 | 2012.03.04 | 16 | 23 | 13 | N21W00 | 0200 | DAI | DKI | beta-gamma | ||
11431 | 2012.03.04 2012.03.05 |
2 | 3 | 2 | S24W64 | 0030 | DSO | CRO |
location: S27W62 area: 0010 |
||
S1512 | 2012.03.05 | 2 | 1 | S17E23 | 0000 | AXX | |||||
S1513 | 2012.03.07 | 1 | 1 | S22E46 | 0000 | AXX | |||||
S1514 | 2012.03.07 | 3 | 2 | N12E37 | 0000 | BXO | |||||
Total spot count: | 62 | 108 | 55 | ||||||||
Sunspot number: | 102 | 178 | 125 | (total spot count + 10 * number of spotted regions) | |||||||
Weighted penumbral SN: | 92 | 141 | 88 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
Relative sunspot number (Wolf number): | 61 | 62 | 69 | k * (sunspot number). k = 0.6 for SWPC, k = 0.35 (changed from 0.45 on March 1, 2011) for STAR SDO 2K, k = 0.55 for STAR SDO 1K |
Month | Average measured solar flux | International sunspot number (SIDC) | Smoothed sunspot number | Average ap (3) |
---|---|---|---|---|
2008.07 | 65.7 (SF minimum) | 0.5 | 2.8 (-0.4) | |
2008.12 | 69.2 | 0.8 | 1.7 (-) sunspot minimum |
3.25 |
2010.12 | 84.2 | 14.4 | 28.8 (+2.3) | 3.41 / 4.35 |
2011.01 | 83.6 | 19.1 | 31.0 (+2.2) | 4.32 / 5.51 |
2011.02 | 94.6 | 29.4 | 33.4 (+2.4) | 5.41 / 6.44 |
2011.03 | 115.0 | 56.2 | 36.9 (+3.5) | 7.79 / 8.18 |
2011.04 | 112.6 | 54.4 | 41.8 (+4.9) | 9.71 / 8.83 |
2011.05 | 95.8 | 41.6 | 47.6 (+5.8) | 9.18 / 8.94 |
2011.06 | 95.8 | 37.0 | 53.2 (+5.6) | 8.96 / 8.06 |
2011.07 | 94.2 | 43.9 | 57.2 (+4.0) | 9.14 / 8.16 |
2011.08 | 101.7 | 50.6 | 59.0 (+1.8) | 8.16 / 7.26 |
2011.09 | 133.8 | 78.0 | (59.2 projected, +0.2) | 12.80 / 12.27 |
2011.10 | 137.3 | 88.0 | (59.4 projected, +0.2) | 7.52 / 8.28 |
2011.11 | 153.5 | 96.7 | (60.8 projected, +1.4) | 4.58 / 5.55 |
2011.12 | 141.3 | 73.0 | (63.6 projected, +2.8) | 3.32 |
2012.01 | 132.5 | 58.3 | (67.1 projected, +3.5) | 6.59 |
2012.02 | 106.5 | 33.1 | (71.0 projected, +3.9) | 8.09 |
2012.03 | 121.2 (1) | 15.7 (2A) / 69.4 (2B) | (73.2 projected, +2.2) | (18.61) |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official SIDC international sunspot number is typically 30-50% lower. 2B) Month
average to date.
3) Running average based on the preliminary daily SWPC ap indices.
Values in red are based on the official NGDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
