The geomagnetic field was very quiet on June 14. Solar wind speed at SOHO ranged between 305 and 405 km/s.
Solar flux measured at 23h UTC on 2.8 GHz was 140.4 (increasing 8.2 over the last solar rotation, the measurements at 17 and 20h UTC were enhanced because of the very long duration event in AR 11504). The Potsdam WDC planetary A index was 4 (STAR Ap - based on the mean of three hour interval ap indices: 3.8). Three hour interval K indices: 11111111 (planetary), 11121111 (Boulder).
The background x-ray flux is at the class B7 level.
At midnight UTC the visible solar disk had 6 spotted active regions (in 2K resolution SDO images).

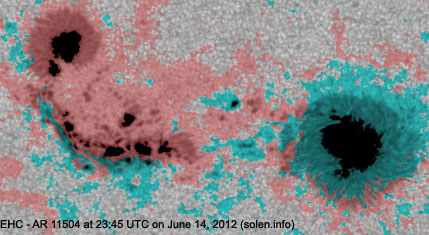

Region 11504 [S17E02] developed and became more complex with multiple
magnetic delta structures forming along the inversion line in the southeastern
part of the region. A major flare is possible. Flares
(above the C5 level): C5.0/1F at 11:12, very long duration M1.9/1N event
peaking at 14:35 UTC. The latter event was associated with a symmetrical full
halo CME.
Region 11505 [S11W01] developed and moved closer to AR 11504. If this
development continues the two regions could merge within a couple of days. The
two regions could interact to cause larger flares.
Region 11506 [N10E11] added some small spots and was otherwise quiet and
stable.

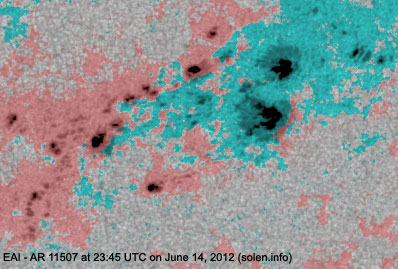

Region 11507 [S28W22] merged with AR 11508 (reversing the premature
decision to split them the previous day). The region is developing and could
soon become a compact region. There's polarity intermixing and a chance of an M
class flare.
Spotted active regions not numbered or interpreted differently by NOAA/SWPC:
S1719 [S28W08] developed slightly and was quiet.

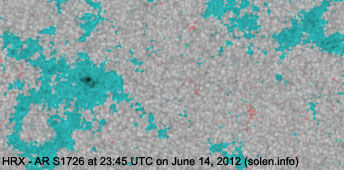

S1726 [S17W02] developed slowly and quietly.
June 12: A filament eruption began slowly to the northwest of AR 11507 at
14h UTC and later on expanded to include filaments across most of the southern
hemisphere. A CME was observed over the eastern limb in STEREO-A images starting
at 17:54 UTC and over the west limb in STEREO-B images.
June 13: A partial halo CME was observed after the M1.2 LDE in AR 11504.
This CME could reach Earth on June 16.
June 14: A large symmetrical full halo CME was associated with the M1.9
LDE in AR 11504. This CME could reach Earth during the latter half of June 16.
Coronal hole history (since October
2002)
Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago

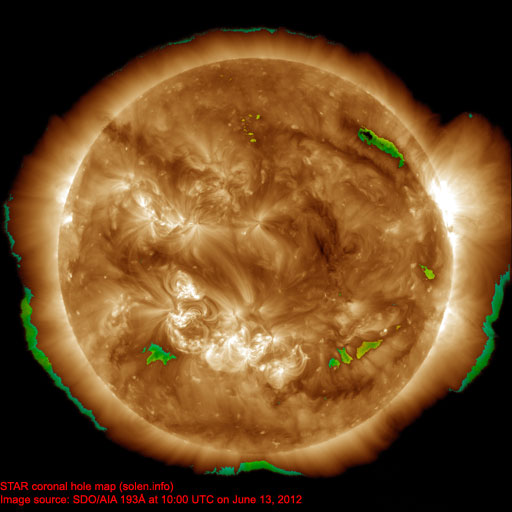

No obvious coronal holes are currently in or near potentially geoeffective positions.
The above coronal hole map is based on a method where coronal holes are detected automatically. While the method may need some fine tuning, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using this method, the extent and intensity of both CHs are consistent with other data sources.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is fair. Propagation on long distance northeast-southwest paths is poor.
The geomagnetic field is expected to be quiet most of June 15. The CME observed on June 12 could arrive during the latter half of June 15 and cause unsettled to active conditions. The CME observed on June 13 could reach Earth on June 16 and cause unsettled to active conditions. The June 14 CME could reach Earth during the latter half of June 16 and cause active to severe storm conditions.
Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

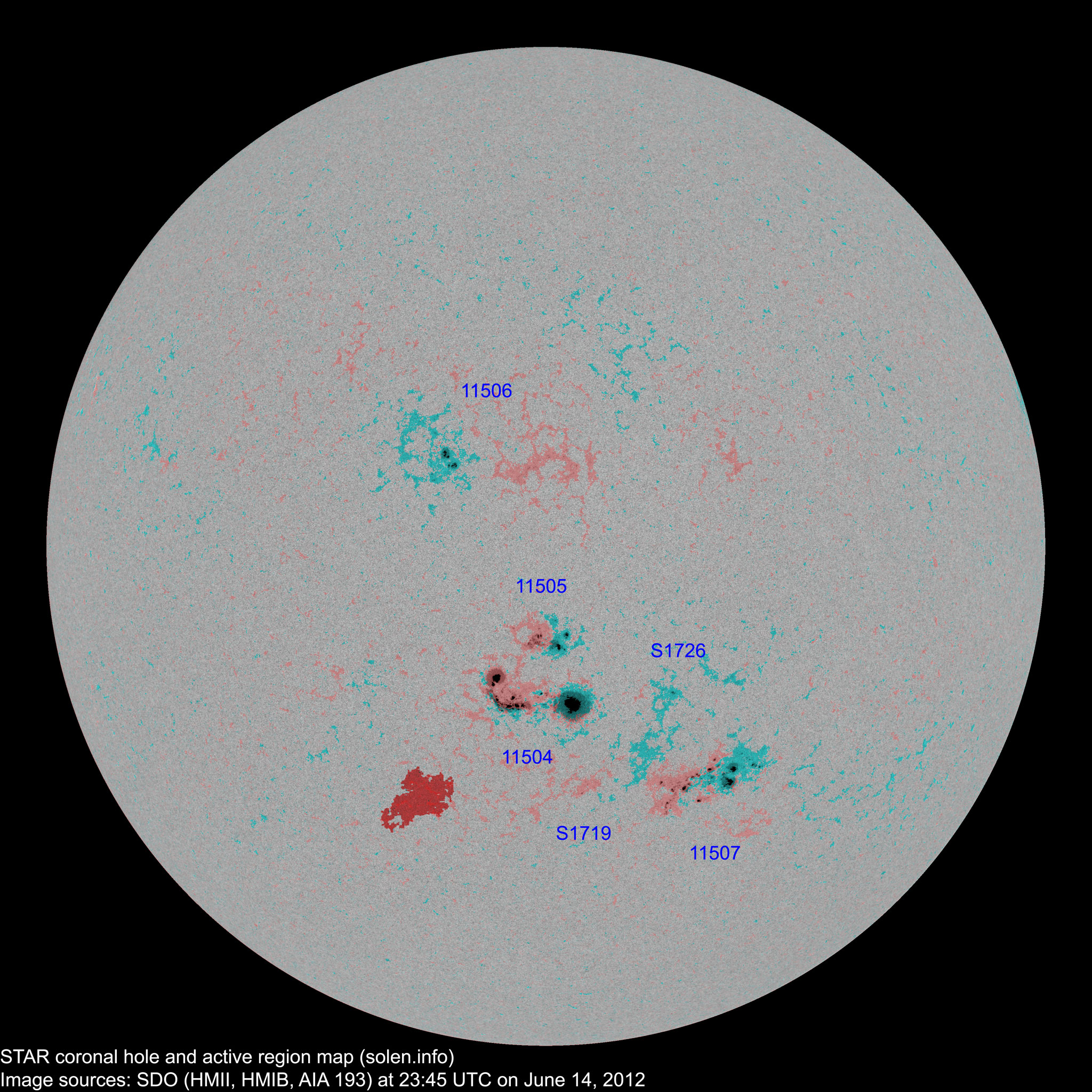

Click on image for higher resolution image) Compare to the previous day's image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | ||||
---|---|---|---|---|---|---|---|---|---|---|---|
SWPC | STAR SDO | SWPC | STAR | Current | Previous | ||||||
2K | 1K | ||||||||||
11507 | 2012.06.07 2012.06.10 |
15 | 53 | 28 | S25W24 | 0080 | DAO | EAI |
SWPC considers this to be two regions location: S28W22 area: 0350 |
||

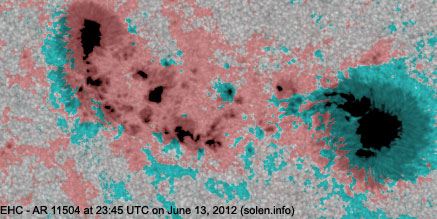

11504 | 2012.06.08 2012.06.09 |
20 | 57 | 21 | S16E01 | 0570 | EKC | EHC |
beta-gamma-delta area: 0950 location: S17E02 |
||
11505 | 2012.06.09 | 10 | 24 | 14 | S10W02 | 0050 | DAO | DAC |
location: S11W01 area: 0170 |
||
S1719 | 2012.06.09 | 3 | S28W08 | 0010 | BXO | ||||||

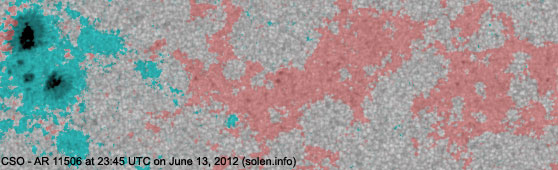

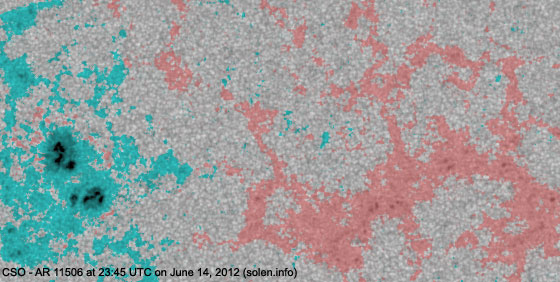

11506 | 2012.06.09 2012.06.10 |
7 | 22 | 11 | N11E11 | 0070 | CSO | CSO |
location: N10E11 |
||
S1721 | 2012.06.09 | N11W21 | plage | ||||||||
S1723 | 2012.06.09 | S31W33 | plage | ||||||||
S1726 | 2012.06.10 | 4 | 2 | S16W16 | 0010 | HRX | |||||
S1727 | 2012.06.10 | N10W58 | plage | ||||||||
11508 | 2012.06.13 | 12 | S28W20 | 0070 | DSI | ||||||
S1729 | 2012.06.13 | N17E14 | plage | ||||||||
S1730 | 2012.06.13 | N20W11 | plage | ||||||||
S1731 | 2012.06.13 | S15W33 | plage | ||||||||
Total spot count: | 64 | 163 | 76 | ||||||||
Sunspot number: | 114 | 223 | 136 | (total spot count + 10 * number of spotted regions) | |||||||
Weighted penumbral SN: | 94 | 191 | 104 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
Relative sunspot number (Wolf number): | 68 | 78 | 75 | k * (sunspot number). k = 0.6 for SWPC, k = 0.35 (changed from 0.45 on March 1, 2011) for STAR SDO 2K, k = 0.55 for STAR SDO 1K |
Month | Average measured solar flux | International sunspot number (SIDC) | Smoothed sunspot number | Average ap (3) |
---|---|---|---|---|
2008.07 | 65.7 (SF minimum) | 0.5 | 2.8 (-0.4) | |
2008.12 | 69.2 | 0.8 | 1.7 (-) sunspot minimum |
|
2011.03 | 115.0 | 56.2 | 36.9 (+3.5) | 8.18 |
2011.04 | 112.6 | 54.4 | 41.8 (+4.9) | 8.83 |
2011.05 | 95.8 | 41.6 | 47.6 (+5.8) | 8.94 |
2011.06 | 95.8 | 37.0 | 53.2 (+5.6) | 8.06 |
2011.07 | 94.2 | 43.9 | 57.2 (+4.0) | 8.16 |
2011.08 | 101.7 | 50.6 | 59.0 (+1.8) | 7.26 |
2011.09 | 133.8 | 78.0 | 59.5 (+0.5) | 12.27 |
2011.10 | 137.3 | 88.0 | 59.9 (+0.4) | 8.28 |
2011.11 | 153.5 | 96.7 | 61.1 (+1.2) | 5.55 |
2011.12 | 141.3 | 73.0 | (64.3 projected, +3.2) | 3.78 |
2012.01 | 132.5 | 58.3 | (68.0 projected, +3.7) | 7.15 |
2012.02 | 106.5 | 33.1 | (71.3 projected, +3.3) | 8.81 |
2012.03 | 114.7 | 64.2 | (73.0 projected, +1.7) | 16.08 |
2012.04 | 113.0 | 55.2 | (73.2 projected, +0.2) | 10.10 |
2012.05 | 121.5 | 69.0 | (73.2 projected, +0.0) | 8.75 |
2012.06 | 132.4 (1) | 57.4 (2A) / 123.1 (2B) | (73.9 projected, +0.7) | (12.40) |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official SIDC international sunspot number is typically 30-50% lower. 2B) Month
average to date.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices.
Values in red are based on the definitive
international Potsdam
WDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
