Recent activity

The geomagnetic field was quiet to unsettled on July 11. Solar wind speed at SOHO ranged between 457 and 578 km/s under the influence of a high speed stream from CH522.

Solar flux measured at 20h UTC on 2.8 GHz was 161.7 (increasing 21.3 over the last solar rotation). The Potsdam WDC planetary A index was 11 (STAR Ap - based on the mean of three hour interval ap indices: 11.3). Three hour interval K indices: 33331123 (planetary), 23331223 (Boulder).

The background x-ray flux is at the class B7 level.

At midnight UTC the visible solar disk had 11 spotted active regions (in 2K resolution SDO images).

Region 11518 [N10W26] decayed slowly and could become spotless today.
Region 11519 [S16W17] was quiet and stable.
Region 11520 [S17E08] again displayed little change. The huge penumbra has a magnetic delta structure in the central part and there is a chance of a major flare. Flare: C5.6/1N at 22:27 and several sub C5 level flares.
Region 11521 [S22W08] decayed in the trailing spot section with a decrease in polarity intermixing. Flare: C9.9 at 08:31 UTC

Spotted active regions not numbered or interpreted differently by NOAA/SWPC:
S1776
[S16W02] was quiet and stable.
S1777 [S12E05] was quiet and stable.
S1783 [N11W05] added several spots in the leading spot section as new flux emerged.
S1785 [S27W23] decayed slowly and quietly.
S1792 [N26W03] was quiet and stable.
New region S1793 [S28E45] emerged with two spots and has developed further early on July 12 adding rudimentary penumbra.
New region S1794 [S27W08] emerged with two spots.

Minor update added at 16:25 UTC on July 12: AR 11520 produced a major long duration X1.4 flare peaking at 16:52 UTC. An above 10 MeV proton event is currently in progress. A CME was observed immediately after the flare peak in STEREO-B images, STEREO-A and LASCO had no available imagery as I write this. Given the location of the flare it is highly likely a full halo CME was produced. The CME could reach Earth on July 14, probably before noon, and cause minor to severe geomagnetic storming.

Coronal mass ejections (CMEs)

July 9-11: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.

Coronal holes

Coronal hole history (since October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A coronal hole (CH522] in the northern hemisphere was in an Earth facing position on July 6-7.

Coronal hole map

The above coronal hole map is based on a method where coronal holes are detected automatically. While the method may need some fine tuning, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using this method, the extent and intensity of both CHs are consistent with other data sources.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is fair.

Forecast

The geomagnetic field is expected to be quiet to unsettled on July 12 and quiet on July 13-14.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

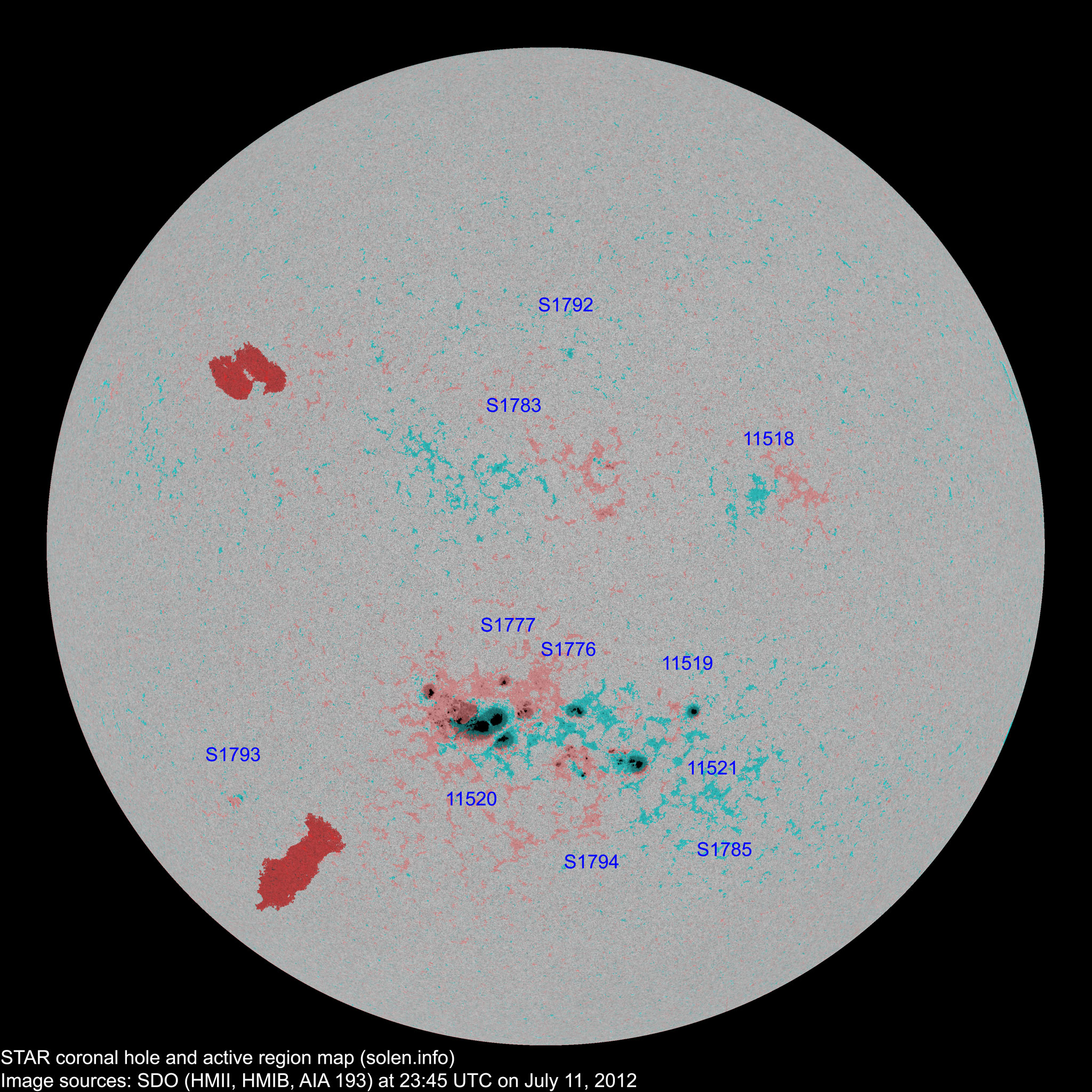

Active solar regions

Click on image for higher resolution image) Compare to the previous day's image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC STAR SDO SWPC STAR Current Previous
2K 1K
11518 2012.07.03
2012.07.04
  3   N09W27 0000   BXO
11519 2012.07.04 1 4 1 S16W18 0040 HSX CSO area: 0070
11520 2012.07.05
2012.07.06
48 68 29 S17E06 1320 FKC EKC beta-gamma-delta

location: S17E08

area: 1500

SWPC count, location, classification and area probably includes ARs S1776 and S1777

S1776 2012.07.05   36 20 S16W02 0300   DAO
S1777 2012.07.05   6 2 S12E05 0060   HSX
S1781 2012.07.07       S16W10           plage
11521 2012.07.07
2012.07.09
15 34 17 S22W07 0150 ESO EAI beta-gamma
S1783 2012.07.07   12 6 N11W05 0010   BXO
S1784 2012.07.07       N25W49           plage
S1785 2012.07.07   1   S27W23 0000   AXX
S1787 2012.07.08       S20W35
S1788 2012.07.09       N02W36           plage
S1789 2012.07.09       N08W59           plage
S1790 2012.07.10       N08E52         plage
S1791 2012.07.10       N12E28         plage
S1792 2012.07.10   2   N26W03 0000   AXX
S1793 2012.07.11   2 2 S28E45 0000   BXO
S1794 2012.07.11   2 2 S27W08 0000   BXO
Total spot count: 64 170 79
Sunspot number: 94 280 159  (total spot count + 10 * number of spotted regions)
Weighted penumbral SN: 84 200 109  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 56 98 87 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 (changed from 0.45 on March 1, 2011) for STAR SDO 2K, k = 0.55 for STAR SDO 1K

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2008.07 65.7 (SF minimum) 0.5 2.8 (-0.4)
2008.12 69.2 0.8 1.7 (-)
sunspot minimum

2011.04 112.6 54.4 41.8 (+4.9) 8.83
2011.05 95.8 41.6 47.6 (+5.8) 8.94
2011.06 95.8 37.0 53.2 (+5.6) 8.06
2011.07 94.2 43.9 57.2 (+4.0) 8.16
2011.08 101.7 50.6 59.0 (+1.8) 7.26
2011.09 133.8 78.0 59.5 (+0.5) 12.27
2011.10 137.3 88.0 59.9 (+0.4) 8.28
2011.11 153.5 96.7 61.1 (+1.2) 5.55
2011.12 141.3 73.0 63.4 (+2.3) 3.78
2012.01 132.5 58.3 (65.0 projected, +1.6) 7.15
2012.02 106.5 33.1 (66.5 projected, +1.5) 8.81
2012.03 114.7 64.2 (67.2 projected, +0.7) 16.08
2012.04 113.0 55.2 (66.5 projected, -0.7) 10.10
2012.05 121.5 69.0 (64.8 projected, -1.7) 7.06
2012.06 119.6 64.5 (64.0 projected, -0.8) 10.08
2012.07 156.6 (1) 45.5 (2A) / 128.4 (2B) (65.0 projected, +1.0) (17.63)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Month average to date.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
