The geomagnetic field was quiet on January 18. Solar wind speed ranged between 353 and 431 km/s.
Solar flux measured at 22h UTC on 2.8 GHz was 148.1. The planetary A index was 3 (STAR Ap - based on the mean of three hour interval ap indices: 3.1). Three hour interval K indices: 20011111 (planetary), 10012221 (Boulder).
The background x-ray flux is at the class B7 level.
At midnight UTC the visible solar disk had 10 spotted regions (in 2K resolution SDO images).
Region 11396 [N25W44] was mostly quiet and stable.
Flare: C5.1 at 23:20 UTC
Region 11399 [S23E17] was mostly quiet and stable.
Region 11401 [N17E27] developed slowly and could produce further M class
flares. Flares: C1.0 at 09:54, C2.4 at
10:30, M1.7/1N at 19:12 UTC.
Region 11402 [N29E28] has a large asymmetrical penumbra and could
produce M class flares.
Region 11403 [S18W12] decayed slowly and quietly.
Region 11405 [N12E41] was quiet and stable.
Region 11406 [S22W71] decayed slowly and quietly.
New region 11407 [N18E15] emerged in the northeast quadrant.
Spotted regions not reported (or interpreted differently) by NOAA/SWPC:
[S1431] decayed slowly and quietly. Location at midnight: N10W22
[S1436] decayed slowly and quietly. Location at midnight: N16E38
January 18: A partial halo CME was observed after a filament eruption in
the southern hemisphere near the central meridian. Activity increased in the
filament after 08:50 UTC until eruption several hours later.
January 17: No obviously Earth directed CMEs were observed in LASCO and
STEREO imagery
Coronal hole history (since October
2002)
Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago
A poorly defined trans equatorial coronal hole (CH494) was in an Earth facing position on January 16-17. CH494 closed on January 17-18. A small coronal hole (CH495) in the southern hemisphere will be in an Earth facing position on January 20.
The above coronal hole map is based on a method where coronal holes are detected automatically. While the method may need some fine tuning, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using this method, the extent and intensity of both CHs are consistent with other data sources.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is good. Propagation on long distance northeast-southwest paths is poor.
The geomagnetic field is expected to be quiet to unsettled on January 19-20 due to weak effects from CH494.
| Coronal holes (1) | Coronal mass ejections (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

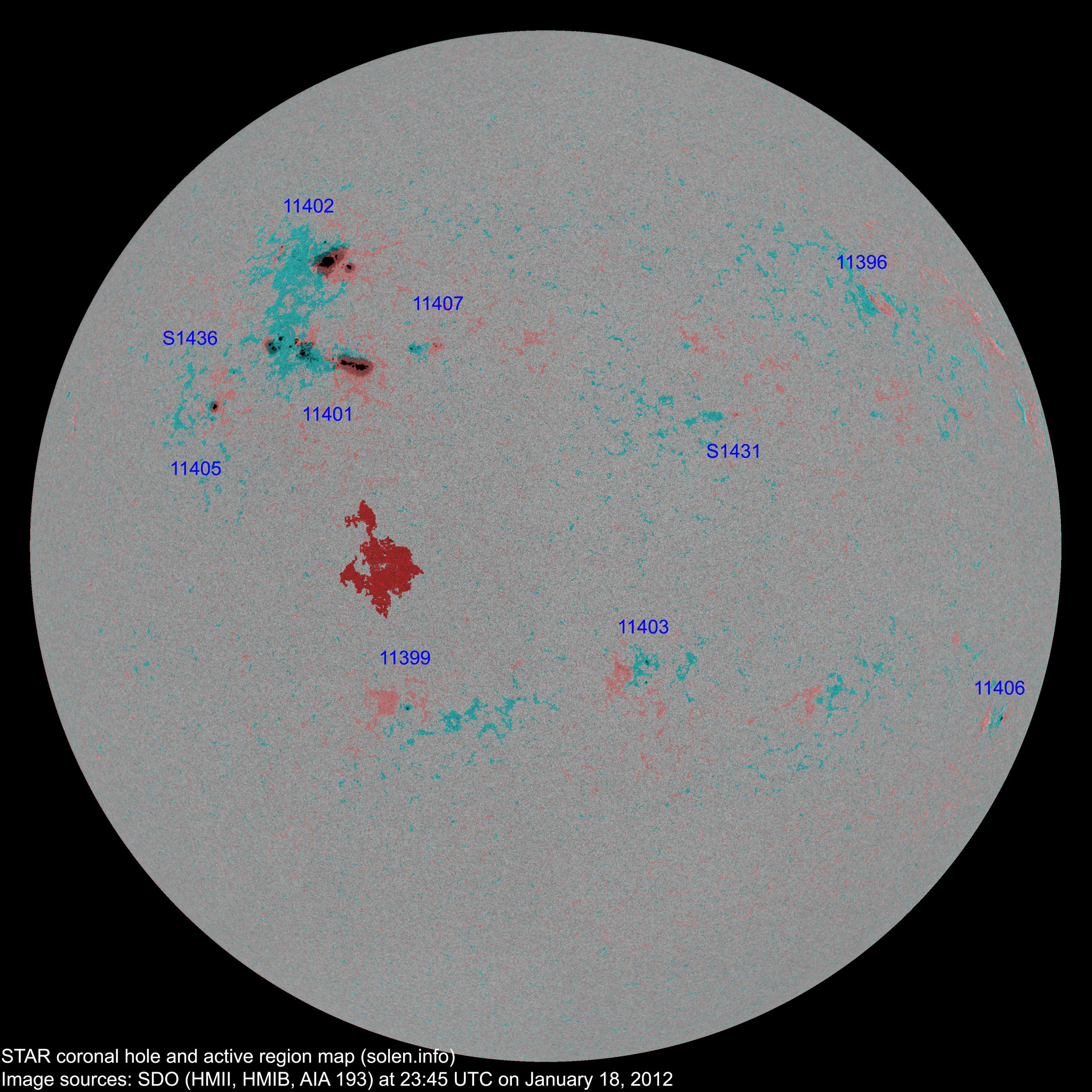

Click on image for higher resolution image) Compare to the previous day's image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
| Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | |||
|---|---|---|---|---|---|---|---|---|---|---|
| SWPC | STAR SDO | SWPC | STAR | Current | Previous | |||||
| 11395 | 2012.01.07 2012.01.08 |
N20W72 | plage | |||||||
| 11396 | 2012.01.09 2012.01.12 |
4 | 5 | N25W44 | 0010 | BXO | BXO |
 |
 |
plage |
| S1424 | 2012.01.11 | S16W18 | plage | |||||||
| 11397 | 2012.01.12 2012.01.13 |
S20W40 | plage | |||||||
| S1427 | 2012.01.12 | S24W44 | plage | |||||||
| 11399 | 2012.01.13 2012.01.14 |
1 | 6 | S23E03 | 0020 | HSX | CRO |
 |
 |
|
| 11401 | 2012.01.14 | 18 | 38 | N16E27 | 0450 | EKC | EHC |
 |
 |
beta-gamma |
| 11402 | 2012.01.14 | 8 | 15 | N28E27 | 0550 | DKO | CKO |
 |
 |
|
| 11403 | 2012.01.14 2012.01.15 |
5 | 6 | S19W11 | 0020 | CRO | BXO |
 |
 |
|
| S1431 | 2012.01.14 | 1 | N10W22 | 0000 | AXX |
 |
||||
| S1432 | 2012.01.14 | N13W43 | plage | |||||||
| 11405 | 2012.01.15 2012.01.16 |
2 | 3 | N11E39 | 0040 | HSX | CSO |
 |
 |
location: N12E41 |
| 11404 | 2012.01.15 2012.01.16 |
N11W56 | plage | |||||||
| S1436 | 2012.01.16 | 1 | N16E38 | 0000 | AXX |
 |
 |
|||
| S1437 | 2012.01.16 | N17W20 | plage | |||||||
| 11406 | 2012.01.16 2012.01.17 |
2 | 1 | S24W68 | 0030 | CSO | HRX |
 |
 |
|
| 11407 | 2012.01.18 | 2 | 8 | N17E13 | 0010 | BXO | DRO |
 |
location: N18E15 | |
| Total spot count: | 42 | 84 | ||||||||
| Sunspot number: | 122 | 184 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted penumbral SN: | 80 | 118 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 73 | 83 | k * (sunspot number). k = 0.6 for SWPC. k = 0.45 (changed from 0.33 on Nov.1, 2011) for STAR SDO | |||||||
| Month | Average measured solar flux | International sunspot number (SIDC) | Smoothed sunspot number | Average ap (3) |
|---|---|---|---|---|
| 2008.07 | 65.7 (SF minimum) | 0.5 | 2.8 (-0.4) | |
| 2008.12 | 69.2 | 0.8 | 1.7 (-) sunspot minimum |
3.25 |
| 2010.10 | 81.6 | 23.5 | 23.2 (+3.6) | 6.07 / 6.27 |
| 2010.11 | 82.5 | 21.5 | 26.5 (+3.3) | 4.80 / 5.50 |
| 2010.12 | 84.2 | 14.4 | 28.8 (+2.3) | 3.41 / 4.35 |
| 2011.01 | 83.6 | 19.1 | 31.0 (+2.2) | 4.32 / 5.51 |
| 2011.02 | 94.6 | 29.4 | 33.4 (+2.4) | 5.41 / 6.44 |
| 2011.03 | 115.0 | 56.2 | 36.9 (+3.5) | 7.79 / 8.18 |
| 2011.04 | 112.6 | 54.4 | 41.8 (+4.9) | 9.71 / 8.83 |
| 2011.05 | 95.8 | 41.6 | 47.6 (+5.8) | 9.18 / 8.94 |
| 2011.06 | 95.8 | 37.0 | 53.2 (+5.6) | 8.96 / 8.06 |
| 2011.07 | 94.2 | 43.9 | (57.8 projected, +4.6) | 9.14 / 8.16 |
| 2011.08 | 101.7 | 50.6 | (62.0 projected, +4.2) | 8.16 / 7.26 |
| 2011.09 | 133.8 | 78.0 | (65.3 projected, +3.3) | 12.80 / 12.27 |
| 2011.10 | 137.3 | 88.0 | (68.8 projected, +3.5) | 7.52 |
| 2011.11 | 153.5 | 96.7 | (73.2 projected, +4.3) | 4.58 |
| 2011.12 | 141.3 | 73.0 | (78.6 projected, +5.5) | 3.32 |
| 2012.01 | 135.0 (1) | 60.3 (2A) / 98.4 (2B) | (84.4 projected, +5.8) | (4.43) |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official SIDC international sunspot number is typically 30-50% lower. 2B) Month
average to date.
3) Running average based on the preliminary daily SWPC ap indices.
Values in red are based on the official NGDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
