Last major update issued on December 8, 2012 at 06:15 UTC.

[Solar and geomagnetic data - last month (updated daily)]
[Solar wind and electron fluence charts (updated daily)]
[Solar cycles 23-24 (last update December 1, 2012)] [Cycle 24 progress (last update December 2, 2012) ]
[Solar cycles 1-20]
[Graphical comparison of cycles 21, 22, 23 and 24 (last update December 1, 2012)]
[Graphical comparison of cycles 10, 12, 13, 14, 16 and 24 (last update December 1, 2012)]
[Historical solar and geomagnetic data charts 1954-2006 (last update April 5, 2007)]
[Archived reports since January 2003 (last update December 7, 2012)]

[POES auroral activity level since October 2009 - updated October 7, 2012]
[Solar polar fields vs solar cycles - updated November 27, 2012]

Recent activity

The geomagnetic field was very quiet on December 7. Solar wind speed at SOHO ranged between 269 and 280 km/s.

Solar flux measured at 20h UTC on 2.8 GHz was 97.1 (decreasing 25.1 over the last solar rotation). The Potsdam WDC planetary A index was 3 (STAR Ap - based on the mean of three hour interval ap indices: 2.6). Three hour interval K indices: 10000011 (planetary), 00001110 (Boulder).

The background x-ray flux was at the class B1 level.

At midnight UTC the visible solar disk had 8 spotted active regions (in 2K resolution SDO images).

Region 11623 [N08W61] decayed slowly and quietly.
Region 11625 [N12W59] decayed in the leading spot section while a new trailing spot emerged.
Region 11628 [N12E47] lost the former leader spot while new flux emerged in the trailing spot section. Polarities are currently intermixed.

Spotted regions not numbered by NOAA/SWPC:
S2095 [S22E13] lost the trailing spot while new tiny spots emerged in the westernmost part of the leading polarity area.
S2096 [N19E30] decayed slowly and quietly.
New region S2098 [N17W38] emerged with two spots.
New region S2099 [N13W43] emerged with a small spot.
New region S2100 [N05E40] emerged with a tiny spot.

Coronal mass ejections (CMEs)

December 5-7: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.

Coronal holes

Coronal hole history (since October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A small recurrent trans equatorial coronal hole (CH547) was in an Earth facing position on December 7.

Coronal hole map

The above coronal hole map is based on a method where coronal holes are detected automatically. While the method may need some fine tuning, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using this method, the extent and intensity of both CHs are consistent with other data sources.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is good. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be quiet on December 8-9. On December 10-11 there's a chance of a weak disturbance associated with CH547.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Active solar regions

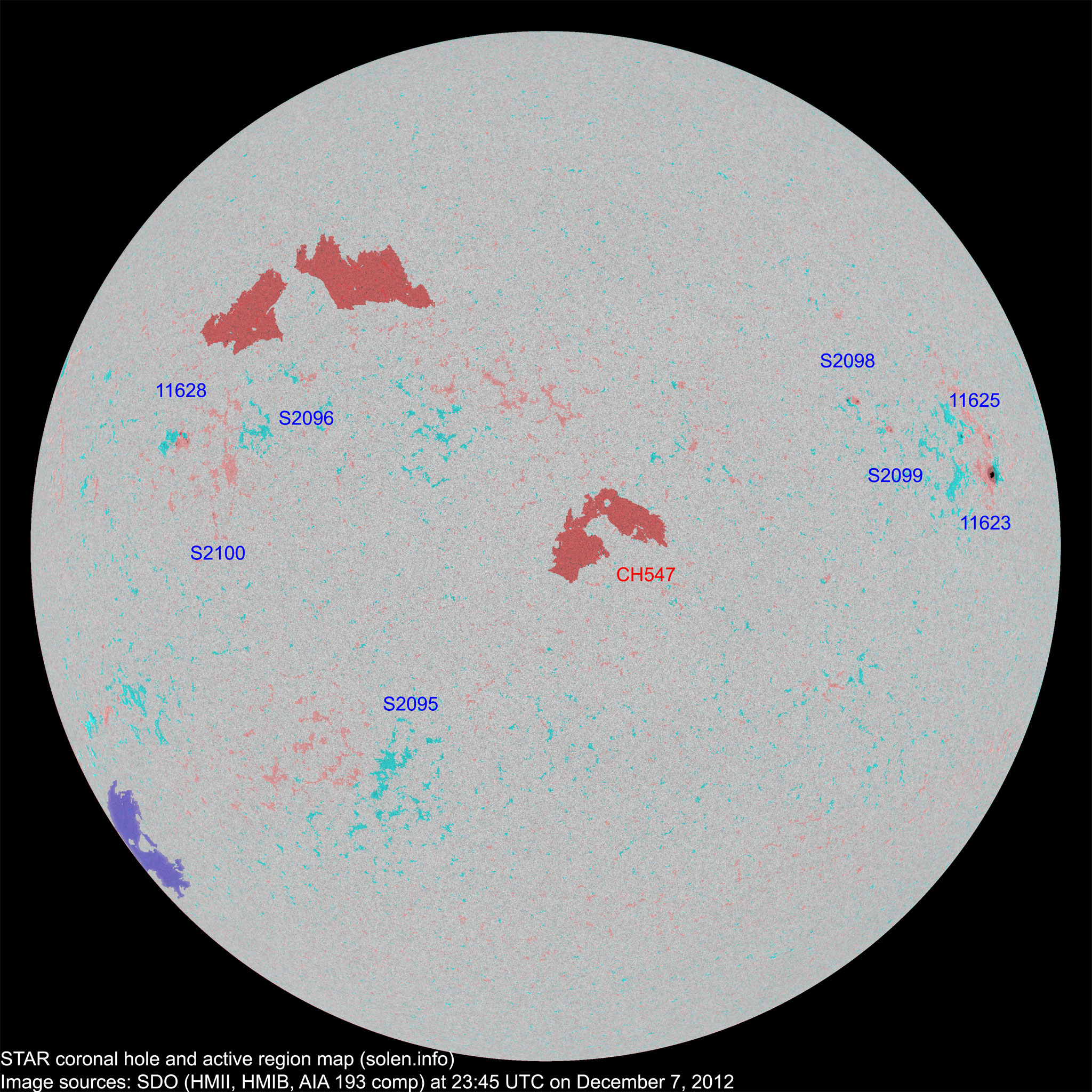

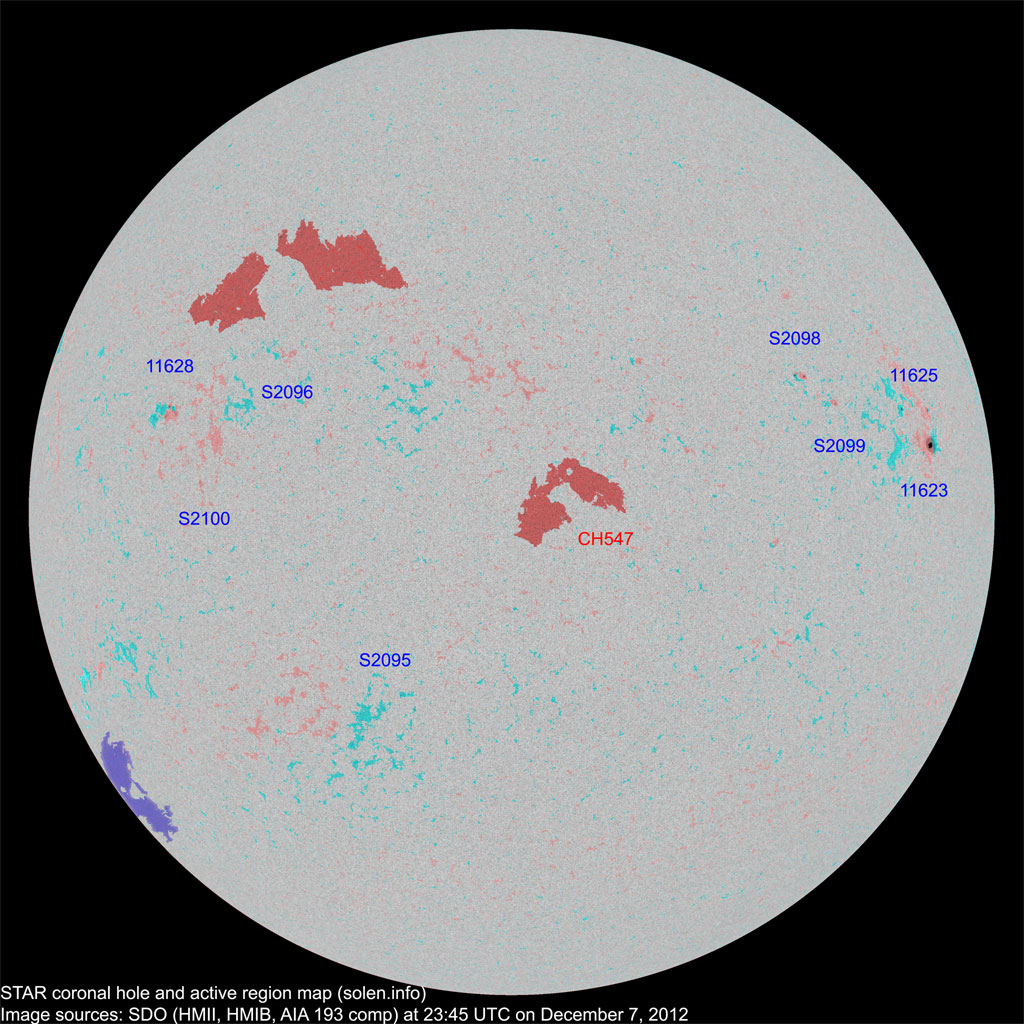

Click on image for higher resolution image) Compare to the previous day's image. 0.5k image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC STAR SDO SWPC STAR Current Previous
2K 1K
11623 2012.11.26
2012.11.27
2 4 2 N07W61 0110 HSX HSX

area: 0220

11625 2012.11.28
2012.11.29
1 2 2 N12W63 0020 HSX BXO location: N12W59
S2086 2012.12.01       N27W39         plage
11626 2012.12.02
2012.12.04
      N11W16         plage
S2089 2012.12.02       N15W14           plage
S2090 2012.12.03       S16W25           plage
11627 2012.12.03
2012.12.05
      S16W37           plage
11628 2012.12.04
2012.12.05
  10 4 N09E37 0020   BXO location: N12E47
S2093 2012.12.04       N23W08           plage
S2094 2012.12.05       N17W00         plage
S2095 2012.12.06   2   S22E13 0000   AXX
S2096 2012.12.06   1   N19E30 0000   AXX
S2097 2012.12.06       N08W20         plage
S2098 2012.12.07   2 2 N17W38 0010   BXO
S2099 2012.12.07   1 1 N13W43 0000   AXX
S2100 2012.12.07   1   N05E40 0000   AXX
Total spot count: 3 23 11
Sunspot number: 23 103 61  (total spot count + 10 * number of spotted regions)
Weighted SN: 13 28 16  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 14 36 34 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2011.09 133.8 78.0 59.5 (+0.5) 12.27
2011.10 137.3 88.0 59.9 (+0.4) 8.28
2011.11 153.5 96.7 61.1 (+1.2) 5.55
2011.12 141.3 73.0 63.4 (+2.3) 3.78
2012.01 132.5 58.3 65.5 (+2.1) 7.15
2012.02 106.5 32.9 66.9 (+1.4)
possible cycle 24 max
8.81
2012.03 114.7 64.3 66.8 (-0.1) 16.08
2012.04 113.0 55.2 64.6 (-2.2) 10.10
2012.05 121.5 69.0 61.7 (-2.9) 7.06
2012.06 119.6 64.5 (59.5 projected, -2.2) 10.08
2012.07 133.9 66.5 (58.8 projected, -0.7) 13.90
2012.08 115.4 63.1 (60.1 projected, +1.3) 7.96
2012.09 122.9 61.5 (61.1 projected, +1.0) 8.07
2012.10 123.3 53.3 (60.7 projected, -0.4) 9.97
2012.11 121.3 61.4 (60.0 projected, -0.7) 7.08
2012.12 97.5 (1) 11.1 (2A) / 49.1 (2B) / 57.9 (2C) (59.3 projected, -0.7) (3.69)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
