The geomagnetic field was quiet to unsettled on April 27. Solar wind speed at SOHO ranged between 444 and 646 km/s.
Solar flux measured at 20h UTC on 2.8 GHz was 117.6 (increasing 7.5 over the last solar rotation). The Potsdam WDC planetary A index was 10 (STAR Ap - based on the mean of three hour interval ap indices: 10.1). Three hour interval K indices: 33312123 (planetary), 32212223 (Boulder).
The background x-ray flux is at the class B6 level.
At midnight UTC the visible solar disk had 12 spotted active regions (in 2K resolution SDO images).
Region 11465 [S17W52] decayed slowly with the largest penumbra
breaking up into smaller penumbrae. The magnetic layout has simplified.
Flare: C2.4 at 11:02 UTC
Region 11466 [N11W40] decayed significantly losing spots and penumbral
area. Flare: M1.0/1N at 08:24 UTC
Region 11467 [N11E32] developed early in the day, slow decay was observed
late in the day. Flare: C2.0 at 13:22 UTC
Region 11468 [N10W29] decayed slowly and quietly.
Region 11469 [S20E27] developed significantly and was mostly quiet.
Flare: C1.0 at 02:02 UTC
Spotted active regions not numbered by NOAA/SWPC:
S1609 [S25W14] lost the leading polarity spots and gained a tiny spot in the
trailing polarity area.
S1611 [S26E30] decayed slowly and quietly.
S1613 [S25W73] decayed slowly and quietly.
New region S1614 [S23E83] rotated into view at the southeast limb. While
difficult to observe near the limb, there could be a small magnetic delta in the
leading penumbra.
New region S1615 [S16E77] rotated into view at the southeast limb with
two small spots.
New region S1616 [N04E09] emerged at a low northern latitude near the
center of the visible disk.
New region S1617 [N30W02] emerged at a fairly high latitude in the
northern hemisphere.
April 25-27: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.
Coronal hole history (since October
2002)
Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago
A coronal hole in the northern hemisphere rotated across the central meridian on April 26-27 but was probably too far to the north to cause a geomagnetic disturbance.
The above coronal hole map is based on a method where coronal holes are detected automatically. While the method may need some fine tuning, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using this method, the extent and intensity of both CHs are consistent with other data sources.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor to fair.
The geomagnetic field is expected to be quiet to unsettled on April 28-30.
Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

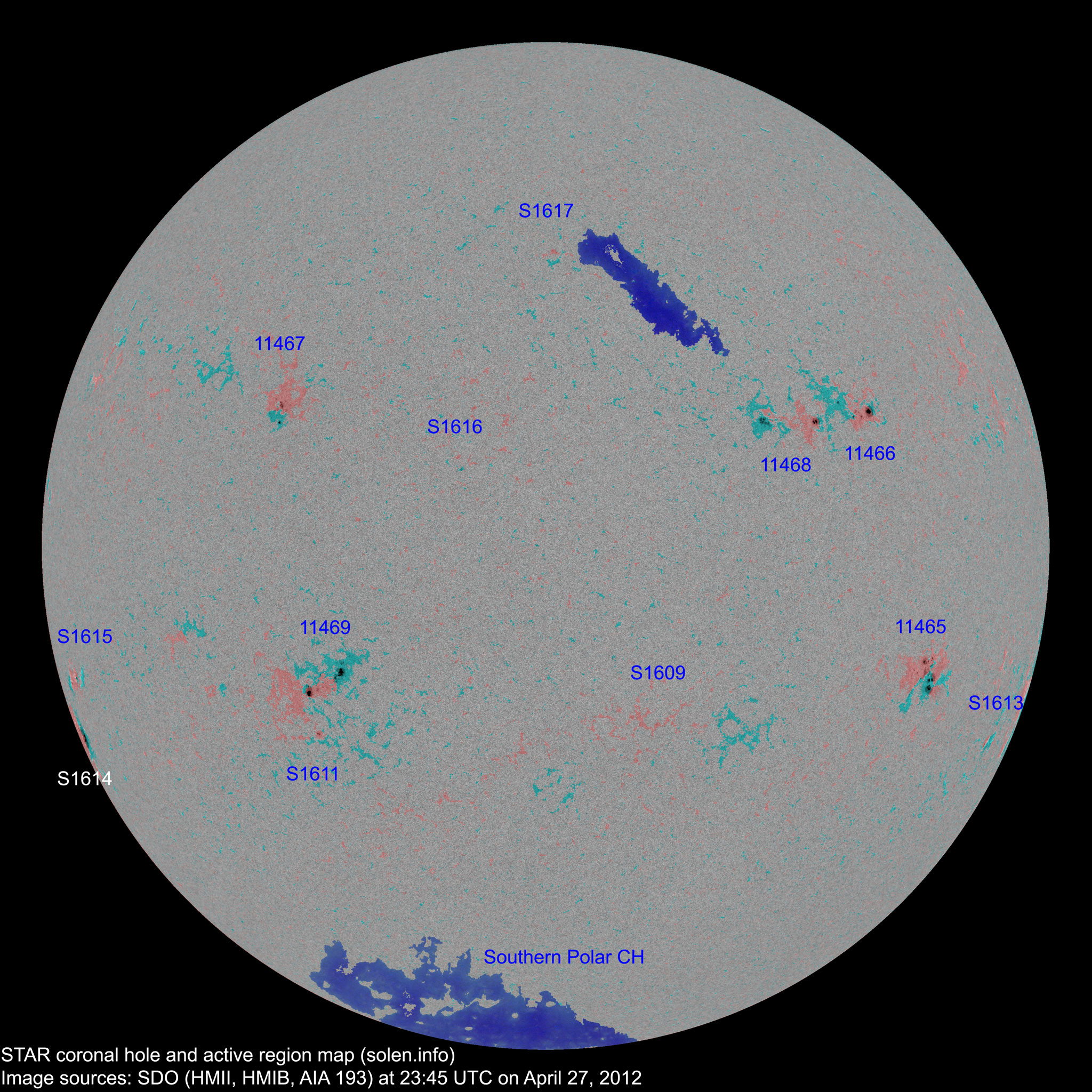

Click on image for higher resolution image) Compare to the previous day's image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | ||||
---|---|---|---|---|---|---|---|---|---|---|---|
SWPC | STAR SDO | SWPC | STAR | Current | Previous | ||||||
2K | 1K | ||||||||||
11459 | 2012.04.14 | 4 | S19W88 | 0030 | CAO |
rotated out of view |
|||||
11461 | 2012.04.16 2012.04.17 |
N10W75 |
plage location: N11W62 |
||||||||
11465 | 2012.04.19 2012.04.20 |
11 | 19 | 9 | S17W53 | 0180 | DAI | DAI | area: 0100 | ||
11468 | 2012.04.20 2012.04.24 |
6 | 12 | 6 | N09W30 | 0080 | DAO | DSO | location: N10W29 | ||
11466 | 2012.04.21 2012.04.22 |
8 | 6 | 5 | N11W38 | 0090 | CSO | CSO | location: N11W40 | ||
11469 | 2012.04.23 2012.04.24 |
6 | 14 | 7 | S24E28 | 0050 | DSO | DAO | location: S20E27 | ||
S1609 | 2012.04.23 | 1 | S25W14 | ||||||||
11467 | 2012.04.24 | 4 | 12 | 3 | N11E32 | 0050 | DSO | DRO | area: 0030 | ||
S1611 | 2012.04.25 | 2 | 1 | S26E30 | 0000 | AXX | |||||
S1612 | 2012.04.26 | N27W09 | plage | ||||||||
S1613 | 2012.04.26 | 1 | 1 | S27W73 | 0000 | AXX | |||||
S1614 | 2012.04.27 | 4 | 1 | S23E83 | 0160 | DSO | beta-gamma-delta? | ||||
S1615 | 2012.04.27 | 2 | 1 | S16E77 | 0010 | BXO | |||||
S1616 | 2012.04.27 | 1 | 1 | N04E09 | 0000 | AXX | |||||
S1617 | 2012.04.27 | 1 | 1 | N30W02 | 0000 | AXX | |||||
Total spot count: | 39 | 75 | 36 | ||||||||
Sunspot number: | 99 | 195 | 146 | (total spot count + 10 * number of spotted regions) | |||||||
Weighted penumbral SN: | 69 | 103 | 64 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
Relative sunspot number (Wolf number): | 59 | 68 | 80 | k * (sunspot number). k = 0.6 for SWPC, k = 0.35 (changed from 0.45 on March 1, 2011) for STAR SDO 2K, k = 0.55 for STAR SDO 1K |
Month | Average measured solar flux | International sunspot number (SIDC) | Smoothed sunspot number | Average ap (3) |
---|---|---|---|---|
2008.07 | 65.7 (SF minimum) | 0.5 | 2.8 (-0.4) | |
2008.12 | 69.2 | 0.8 | 1.7 (-) sunspot minimum |
|
2011.01 | 83.6 | 19.1 | 31.0 (+2.2) | 5.51 |
2011.02 | 94.6 | 29.4 | 33.4 (+2.4) | 6.44 |
2011.03 | 115.0 | 56.2 | 36.9 (+3.5) | 8.18 |
2011.04 | 112.6 | 54.4 | 41.8 (+4.9) | 8.83 |
2011.05 | 95.8 | 41.6 | 47.6 (+5.8) | 8.94 |
2011.06 | 95.8 | 37.0 | 53.2 (+5.6) | 8.06 |
2011.07 | 94.2 | 43.9 | 57.2 (+4.0) | 8.16 |
2011.08 | 101.7 | 50.6 | 59.0 (+1.8) | 7.26 |
2011.09 | 133.8 | 78.0 | 59.5 (+0.5) | 12.27 |
2011.10 | 137.3 | 88.0 | (60.1 projected, +0.6) | 8.28 |
2011.11 | 153.5 | 96.7 | (61.6 projected, +1.5) | 5.55 |
2011.12 | 141.3 | 73.0 | (64.3 projected, +2.7) | 3.78 |
2012.01 | 132.5 | 58.3 | (67.8 projected, +3.5) | 7.15 |
2012.02 | 106.5 | 33.1 | (71.8 projected, +4.0) | 8.81 |
2012.03 | 114.7 | 64.2 | (73.9 projected, +2.1) | 16.08 |
2012.04 | 112.6 (1) | 72.9 (2A) / 81.0 (2B) | (74.9 projected, +1.0) | (12.21) |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official SIDC international sunspot number is typically 30-50% lower. 2B) Month
average to date.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices.
Values in red are based on the definitive
international Potsdam
WDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
