The geomagnetic field was quiet on November 6. Solar wind speed ranged between 271 and 369 km/s. A weak disturbance was in progress during the latter half of the day.
Solar flux measured at 20h UTC on 2.8 GHz was 176.7 (increasing 50.3 over the last solar rotation, and the highest (not enhanced by flares) measured solar flux of cycle 24). The planetary A index was 3 (STAR Ap - based on the mean of three hour interval ap indices: 2.8). Three hour interval K indices: 10001212 (planetary), 00012312 (Boulder).
The background x-ray flux is at the class B7 level.
At midnight UTC the visible solar disk had 10 spotted regions (in 2K resolution SDO images).
Region 11334 [N12W75] was quiet and stable
Region 11336 [N17W23] reemerged with several tiny spots.
Region 11337 [N25W10] decayed slowly and quietly.
Region 11338 [S13E03] developed slowly. Opposite polarity spots with
rudimentary penumbra could be forming a magnetic delta structure in the central
southern part. Flares: C2.3 at 08:16, C2.0
at 17:36, C1.2 at 19:58, C1.7 at 21:53 UTC.
Region 11339 [N19E18] didn't change significantly and still has the
potential to produce a major flare. Flares:
M1.2 at 01:03, M1.4 at 06:14, C8.8 at 09:56, C5.3 at 14:47 UTC.
Region 11340 [S08E51] added a trailing spot and was quiet.
Region 11341 [N10E70] was quiet and stable.
Region 11342 [N18E65] was quiet and stable.
New region 11343 [N27E77] rotated partly into view late on November 5 and
was numbered by SWPC the next day.
Spotted regions not reported by NOAA/SWPC:
[S1308] reemerged with several spots on November 6. Location at midnight:
S22E19
November 4-6: No obviously Earth directed CMEs observed.
Coronal hole history (since late October
2002)
Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago
A small coronal hole (CH484) in the northern hemisphere was in an Earth facing position on November 3.
The above coronal hole map is based on a new method where coronal holes are detected automatically. The method may need some fine tuning, however, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using the new method, the extent and intensity of both holes are consistent with other data sources.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is fair. Propagation on long distance northeast-southwest paths is poor.
The geomagnetic field is expected to be quiet to unsettled on November 7 due to weak effects from CH484 and quiet on November 8-9.
| Coronal holes (1) | Coronal mass ejections (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

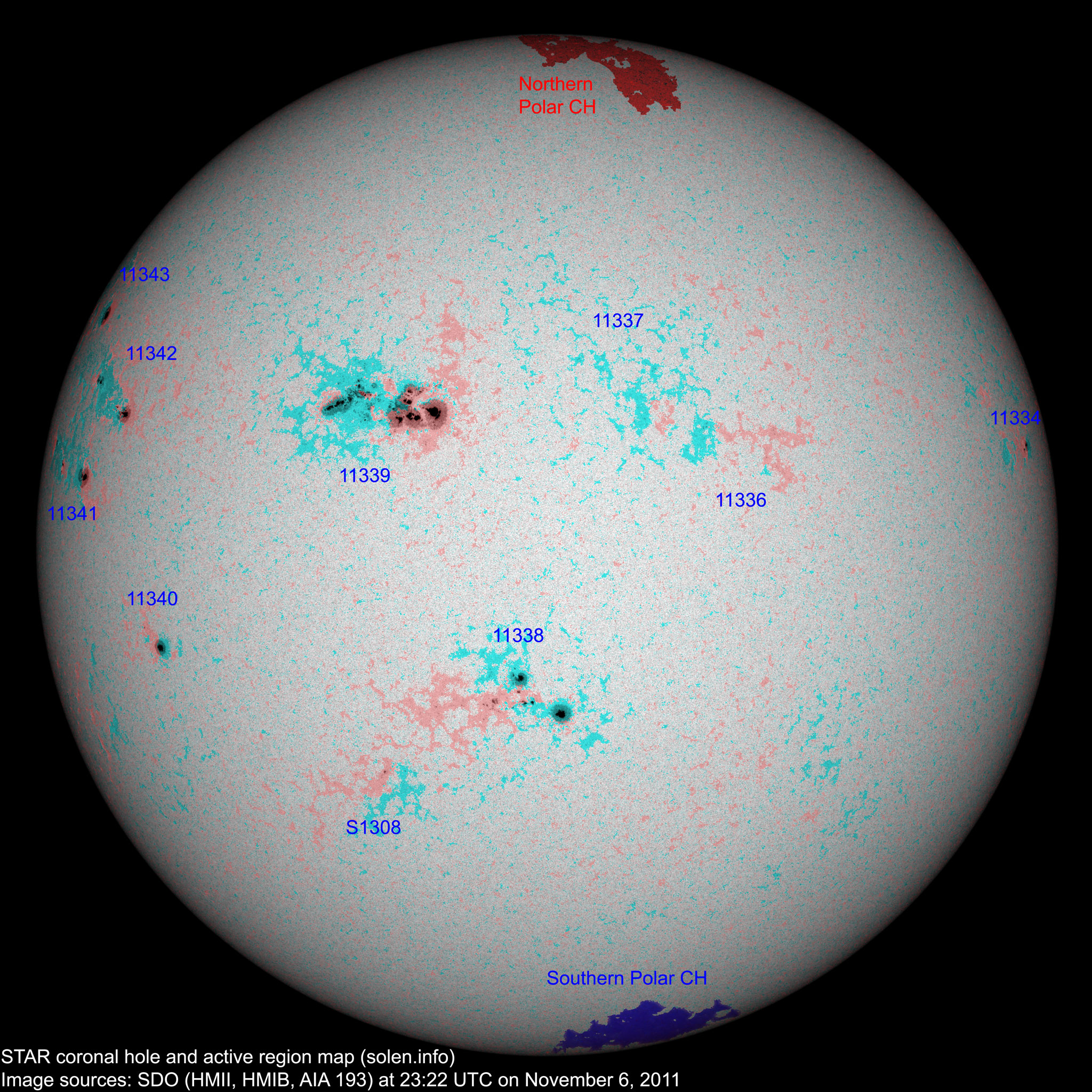

(Click on image for higher resolution image)
Compare to the
previous day's image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
| Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with polarity overlay |
Comment | |||
|---|---|---|---|---|---|---|---|---|---|---|
| SWPC | STAR SDO | SWPC | STAR | Current | Previous | |||||
| 11336 | 2011.10.29 2011.10.31 |
5 | N11W30 | 0000 | BXO |
 |
location: N17W23 | |||
| 11334 | 2011.10.29 2011.10.30 |
2 | 2 | N12W73 | 0040 | HAX | HAX |
 |
 |
|
| 11337 | 2011.10.30 2011.10.31 |
3 | N18W14 | 0000 | AXX |
 |
 |
location: N25W10 | ||
| 11338 | 2011.10.31 2011.11.01 |
9 | 25 | S14E02 | 0240 | DSO | DSI |
 |
 |
beta-gamma area: 0400 |
| 11339 | 2011.11.01 | 42 | 72 | N19E31 | 1250 | EKC | FKC |
 |
 |
beta-gamma-delta location: N19E18 |
| S1308 | 2011.11.03 | 4 | S22E19 | 0010 | BXO |
 |
||||
| S1309 | 2011.11.03 | S22W27 | plage | |||||||
| 11340 | 2011.11.04 2011.11.05 |
1 | 2 | S09E49 | 0080 | CAO | CSO |
 |
 |
location: S08E51 |
| S1311 | 2011.11.04 | N16W01 | plage | |||||||
| 11341 | 2011.11.05 | 1 | 7 | N08E66 | 0120 | HSX | CAO |
 |
 |
location: N10E70 |
| 11342 | 2011.11.05 | 6 | 10 | N18E62 | 0110 | DAO | DAO |
 |
 |
location: N18E65 |
| 11343 | 2011.11.05 2011.11.06 |
1 | 1 | N29E76 | 0060 | HSX | HSX |
 |
 |
location: N27E77 area: 0130 |
| S1313 | 2011.11.05 | N25W41 |
 |
plage |
||||||
| Total spot count: | 62 | 131 | ||||||||
| Sunspot number: | 132 | 231 | (total spot count + 10 * number of spotted regions) | |||||||
| Classification adjusted SN: | 102 | 171 | (Sum of total spot count + classification adjustment for each AR. Classification adjustment: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 79 | 104 | k * (sunspot number). k = 0.6 for SWPC. k = 0.45 (changed from 0.33 on Nov.1) for STAR SDO | |||||||
| Month | Average measured solar flux | International sunspot number (SIDC) | Smoothed sunspot number | Average ap (3) |
|---|---|---|---|---|
| 2008.07 | 65.7 (SF minimum) | 0.5 | 2.8 (-0.4) | |
| 2008.12 | 69.2 | 0.8 | 1.7 (-) sunspot minimum |
3.25 |
| 2010.07 | 79.8 | 16.1 | 16.7 (+0.3) | 6.31 / 5.15 |
| 2010.08 | 79.2 | 19.6 | 17.4 (+0.7) | 8.49 / 7.77 |
| 2010.09 | 81.1 | 25.2 | 19.6 (+2.2) | 5.33 / 5.45 |
| 2010.10 | 81.6 | 23.5 | 23.2 (+3.6) | 6.07 / 6.27 |
| 2010.11 | 82.5 | 21.5 | 26.5 (+3.3) | 4.80 / 5.50 |
| 2010.12 | 84.2 | 14.4 | 28.8 (+2.3) | 3.41 / 4.35 |
| 2011.01 | 83.6 | 19.1 | 31.0 (+2.2) | 4.32 / 5.51 |
| 2011.02 | 94.6 | 29.4 | 33.4 (+2.4) | 5.41 / 6.44 |
| 2011.03 | 115.0 | 56.2 | 36.9 (+3.5) | 7.79 / 8.18 |
| 2011.04 | 112.6 | 54.4 | 41.8 (+4.9) | 9.71 / 8.83 |
| 2011.05 | 95.8 | 41.6 | (47.4 predicted, +5.6) | 9.18 / 8.94 |
| 2011.06 | 95.8 | 37.0 | (52.5 predicted, +5.1) | 8.96 / 8.06 |
| 2011.07 | 94.2 | 43.9 | (58.2 predicted, +5.7) | 9.14 / 8.16 |
| 2011.08 | 101.7 | 50.6 | (63.7 predicted, +5.5) | 8.16 / 7.26 |
| 2011.09 | 133.8 | 78.0 | (67.0 predicted, +3.3) | 12.80 / 12.27 |
| 2011.10 | 137.3 | 88.0 | (70.5 predicted, +3.5) | 7.52 |
| 2011.11 | 162.5 (1) | 24.8 (2A) / 124.2 (2B) | (74.9 predicted, +4.4) | (7.71) |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official SIDC international sunspot number is typically 30-50% lower. 2B) Month
average to date.
3) Running average based on the preliminary daily SWPC ap indices.
Values in red are based on the official NGDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
