Recent activity

The geomagnetic field was quiet on November 5. Solar wind speed ranged between 271 and 349 km/s.

Solar flux measured at 20h UTC on 2.8 GHz was 171.9 (increasing 50.9 over the last solar rotation). The planetary A index was 4 (STAR Ap - based on the mean of three hour interval ap indices: 3.9). Three hour interval K indices: 21111001 (planetary), 11212211 (Boulder).

The background x-ray flux is at the class B8 level.

At midnight UTC the visible solar disk had 9 spotted regions (in 2K resolution SDO images).

Region 11334 [N13W61] was quiet and stable
Region 11337 [N18W02] decayed slowly and quietly.
Region 11338 [S13E15] was quiet and stable.
Region 11339 [N20E31] still has a magnetic delta structure in the central part as well as in a trailing penumbra, none of the deltas are currently strong. The region has lost some of its penumbral area over the last day. Flares: C1.8 at 01:00, long duration M3.7/1F peaking at 03:35, C1.3 at 09:24, C1.5 at 10:09, M1.1 at 11:21, C4.2 at 15:35, M1.8/1N at 20:38 UTC.
New region 11340 [S09E63] rotated into view at the southeast limb on November 4 and got an SWPC number the next day.
New region 11341 [N09E80] rotated into view at the northeast limb on November 5.
New region 11342 [N18E79] rotated into view at the northeast limb on November 5. There could be a small magnetic delta structure in the trailing penumbra, the region will have to rotate into better view to determine if this is the case.

Spotted regions not reported by NOAA/SWPC:
[S1312] rotated partly into view at the northeast limb on November 5. Location at midnight: N27E89
[S1313] emerged in the northwest quadrant on November 5. Location at midnight: N25W28

Coronal mass ejections (CMEs)

November 3-5: No obviously Earth directed CMEs observed.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A small coronal hole (CH484) in the northern hemisphere was in an Earth facing position on November 3.

The above coronal hole map is based on a new method where coronal holes are detected automatically. The method may need some fine tuning, however, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using the new method, the extent and intensity of both holes are consistent with other data sources.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor to fair. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be quiet to unsettled on November 6-7 due to weak effects from CH484 and quiet on November 8.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)



1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Active solar regions

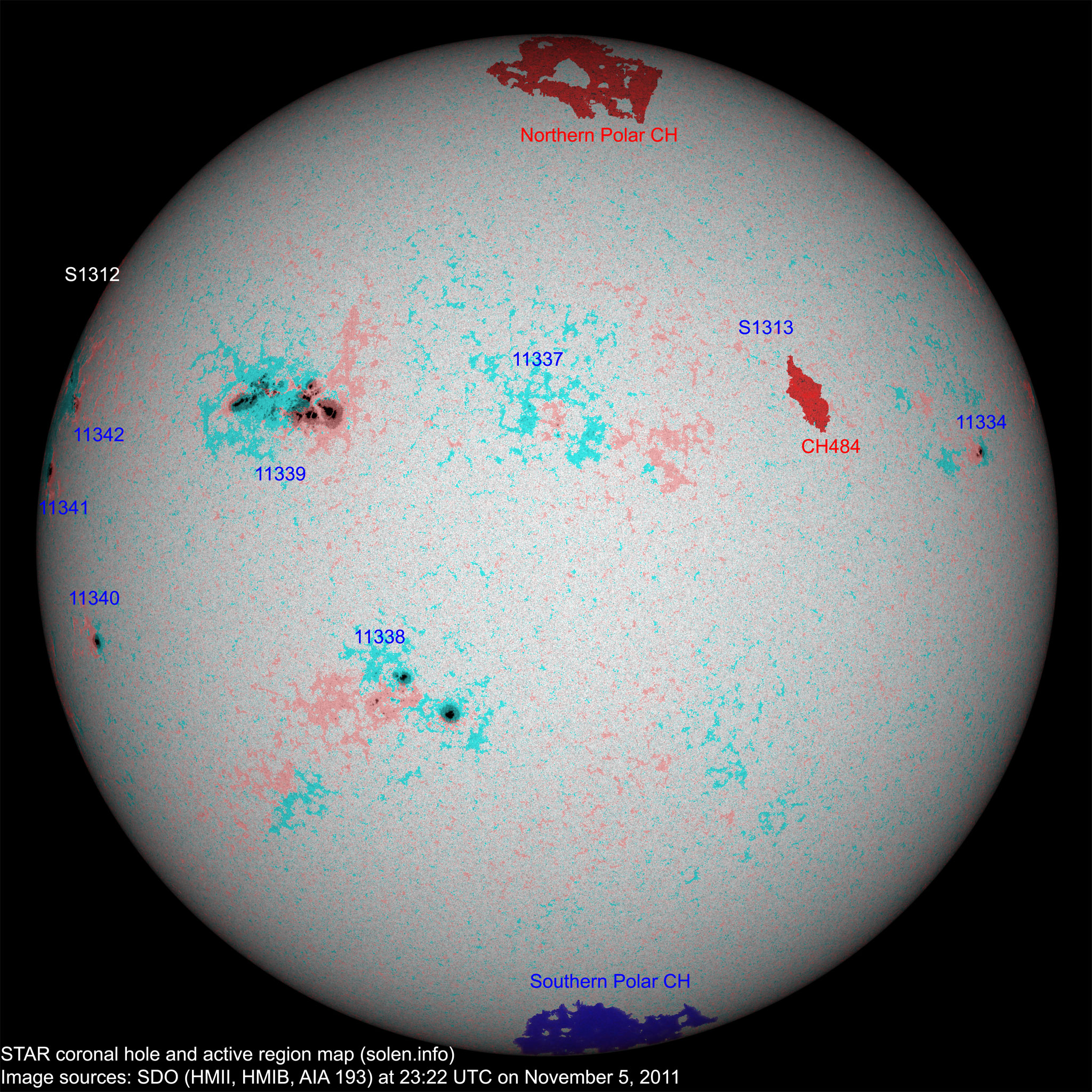

(Click on image for higher resolution image) Compare to the previous day's image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with polarity overlay
Comment
SWPC STAR SDO SWPC STAR Current Previous
11332 2011.10.23
2011.10.24
    N31W81           plage
11336 2011.10.29
2011.10.31
    N11W16         location: N13W14
11334 2011.10.29
2011.10.30
1 2 N12W61 0060 HSX HSX
11337 2011.10.30
2011.10.31
3 9 N18W00 0000 BXO BXO location: N18W02
11338 2011.10.31
2011.11.01
8 24 S14E14 0220 DSO DSO beta-gamma

area: 0350

S1304 2011.10.31     N22W59           plage
11339 2011.11.01 31 72 N19E31 1250 EKC FKC beta-gamma-delta

location: N20E31

S1308 2011.11.03     S23E34           plage
S1309 2011.11.03     S22W14           plage
11340 2011.11.04
2011.11.05
1 1 S09E61 0080 HSX HSX location: S09E63
S1311 2011.11.04     N16E12         plage
11341 2011.11.05 1 1 N10E78 0100 HSX HSX   location: N09E80
11342 2011.11.05 8 11 N18E76 0110 DSO DAO   location: N18E79
S1312 2011.11.05   1 N27E89 0200   HSX
S1313 2011.11.05   1 N25W28 0000   AXX



Total spot count: 53 122
Sunspot number: 123 212  (total spot count + 10 * number of spotted regions)
Classification adjusted SN: 88 162  (Sum of total spot count + classification adjustment for each AR. Classification adjustment: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 74 95  k * (sunspot number). k = 0.6 for SWPC. k = 0.45 (changed from 0.33 on Nov.1) for STAR SDO

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2008.07 65.7 (SF minimum) 0.5 2.8 (-0.4)
2008.12 69.2 0.8 1.7 (-)
sunspot minimum
3.25
2010.07 79.8 16.1 16.7 (+0.3) 6.31 / 5.15
2010.08 79.2 19.6 17.4 (+0.7) 8.49 / 7.77
2010.09 81.1 25.2 19.6 (+2.2) 5.33 / 5.45
2010.10 81.6 23.5 23.2 (+3.6) 6.07 / 6.27
2010.11 82.5 21.5 26.5 (+3.3) 4.80 / 5.50
2010.12 84.2 14.4 28.8 (+2.3) 3.41 / 4.35
2011.01 83.6 19.1 31.0 (+2.2) 4.32 / 5.51
2011.02 94.6 29.4 33.4 (+2.4) 5.41 / 6.44
2011.03 115.0 56.2 36.9 (+3.5) 7.79 / 8.18
2011.04 112.6 54.4 41.8 (+4.9) 9.71 / 8.83
2011.05 95.8 41.6 (47.4 predicted, +5.6) 9.18 / 8.94
2011.06 95.8 37.0 (52.5 predicted, +5.1) 8.96 / 8.06
2011.07 94.2 43.9 (58.2 predicted, +5.7) 9.14 / 8.16
2011.08 101.7 50.6 (63.7 predicted, +5.5) 8.16 / 7.26
2011.09 133.8 78.0 (67.0 predicted, +3.3) 12.80 / 12.27
2011.10 137.3 88.0 (70.5 predicted, +3.5) 7.52
2011.11  159.7 (1) 20.4 (2A) / 122.6 (2B) (74.9 predicted, +4.4) (8.70)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Month average to date.
3) Running average based on the preliminary daily SWPC ap indices. Values in red are based on the official NGDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
