Recent activity

The geomagnetic field was very quiet on January 30. Solar wind speed ranged between 282 and 330 km/s.

Solar flux measured at 20h UTC on 2.8 GHz was 82.6 (decreasing 9.5 over the last solar rotation). The planetary A index  was 1 (STAR Ap - based on the mean of three hour interval ap indices: 0.9). Three hour interval K indices: 00000001 (planetary), 10001211 (Boulder).

The background x-ray flux is at the class A6 level.

At midnight UTC the visible solar disk had 1 spotted region.

Region 11150 developed slowly with new spots emerging and penumbra developing on both polarities.

Coronal mass ejections (CMEs)

January 27-29: No obviously Earth directed CMEs were observed in LASCO or STEREO images.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A large recurrent coronal hole (CH435) in the northern hemisphere will rotate into an Earth facing position on January 30-February 1.

The darkest areas on the solar disk are likely coronal holes.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is fair to good. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be quiet on January 31 and February 1. A high speed stream from CH435 could cause unsettled to minor storm conditions on February 2-4.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)



1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Active solar regions

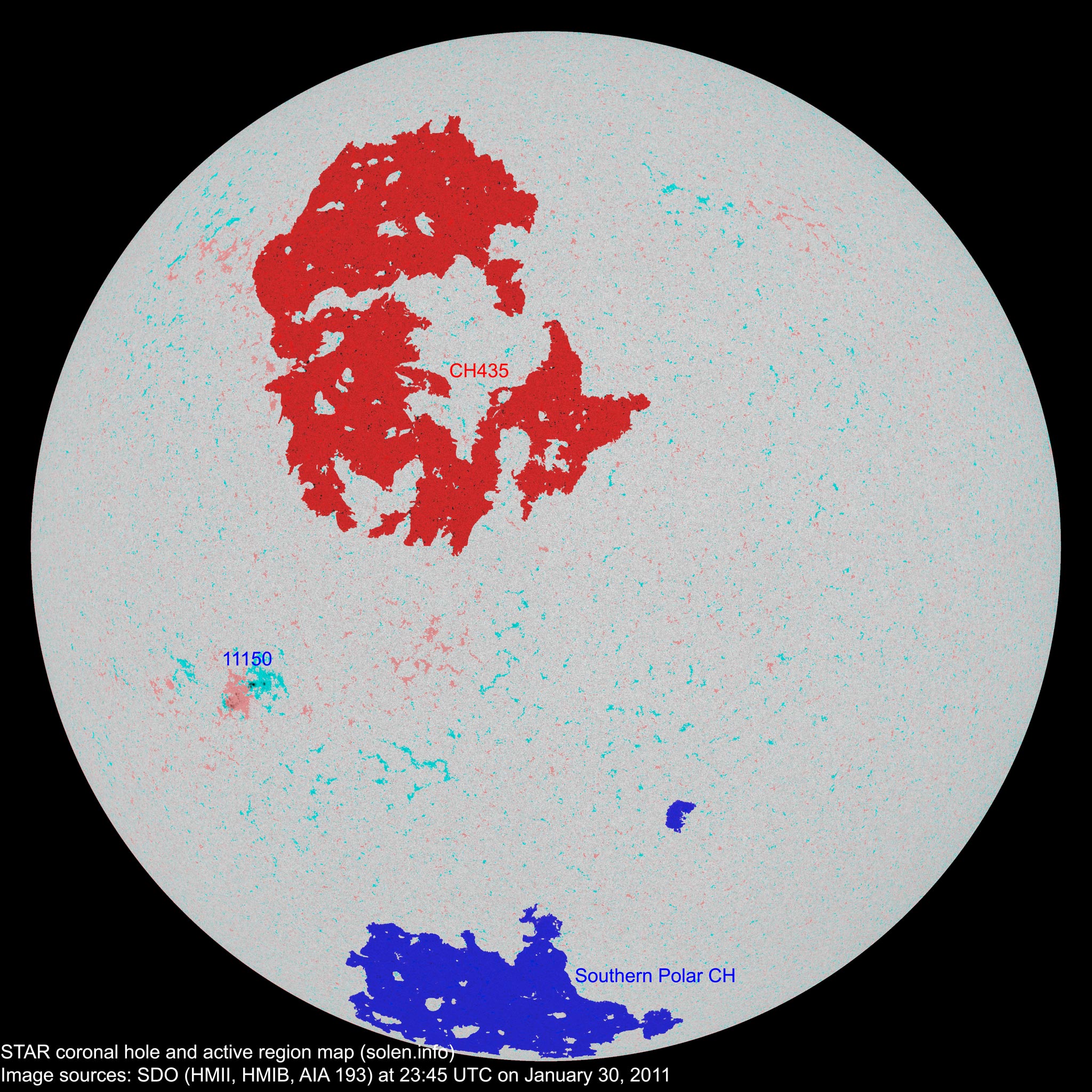

(Click on image for higher resolution image) Compare to the previous day's image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered Spot count Location at midnight Area Classification SDO / HMI continuum
image with polarity overlay
Comment
SWPC STAR SWPC STAR Current Previous
11150 2011.01.26 12 15 S21E37 0050 DAO DAI
Total spot count: 12 15
Sunspot number: 22 25

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2008.07 65.7 (SF minimum) 0.5 2.8 (-0.4)
2008.12 69.2 0.8 1.7 (-)
sunspot minimum
3.25
2009.10 72.6 4.8 7.1 (+0.9) 3.66 / 3.56
2009.11 73.6 4.1 7.6 (+0.5) 2.45 / 2.63
2009.12 76.7 10.8 8.3 (+0.7) 1.41 / 1.92
2010.01 81.1 13.2 9.3 (+1.0) 2.93 / 3.07
2010.02 84.7 18.8 10.6 (+1.3) 4.15 / 4.61
2010.03 83.4 15.4 12.3 (+1.7) 4.58 / 4.65
2010.04 75.9 8.0 14.0 (+1.7) 10.22 / 10.24
2010.05 73.8 8.7 15.5 (+1.5) 9.18 / 8.15
2010.06 72.5 13.6 16.4 (+0.9) 8.17 / 6.85
2010.07 79.8 16.1 (17.0 predicted, +0.6) 6.31 / 5.15
2010.08 79.2 19.6 (17.9 predicted, +0.9) 8.49 / 7.77
2010.09 81.1 25.2 (19.0 predicted, +1.1) 5.33 / 5.45
2010.10 81.6 23.5 (20.7 predicted, +1.7) 6.07 / 6.27
2010.11 82.5 21.6 (23.0 predicted, +2.3) 4.80
2010.12 84.2 14.5 (25.3 predicted, +2.3) 3.41
2011.01 83.7 (1) 31.5 (2A) / 32.6 (2B) (27.7 predicted, +2.4) (4.31)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official international sunspot number is typically 30-50% lower. 2B) Month average to date.
3) Running average based on the preliminary daily SWPC ap indices. Values in red are based on the official NGDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
