The geomagnetic field was quiet on February 11. Solar wind speed ranged between 320 and 411 km/s, most of the day under the influence of a weak coronal hole stream.
Solar flux measured at 20h UTC on 2.8 GHz was 91.2 (increasing 11.0 over the last solar rotation). The planetary A index was 4 (STAR Ap - based on the mean of three hour interval ap indices: 3.6). Three hour interval K indices: 11000122 (planetary), 01011222 (Boulder).
The background x-ray flux is at the class B2 level.
At midnight UTC the visible solar disk had 5 spotted regions.

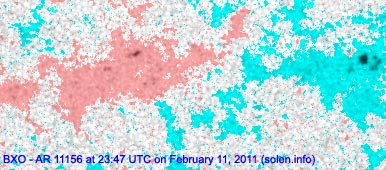

Region 11156 decayed slowly and quietly.

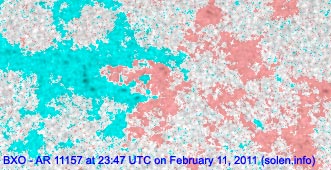

Region 11157 was quiet and has a number of tiny spots.
New region 11158 emerged in the southeast quadrant on February 10 and was
numbered the next day by NOAA/SWPC. The region is developing and could produce C
flares.
New region 11159 emerged in the northeast quadrant on February 10 and got
numbered by NOAA/SWPC the following day.
Spotted regions not numbered by NOAA/SWPC:
[S876] This region emerged in the southeast quadrant on February 11. Location at midnight:
S19E68
February 9-11: No obviously Earth directed CMEs were observed in LASCO or STEREO images.
Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago
No significant coronal holes are currently in or near Earth facing positions.

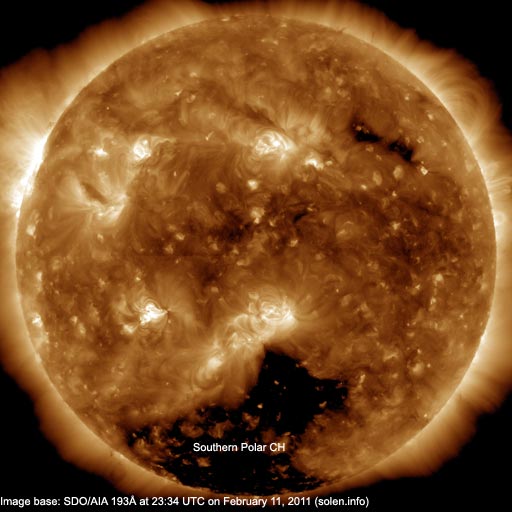

The darkest areas on the solar disk are likely coronal holes.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor to fair. Propagation on long distance northeast-southwest paths is poor.
The geomagnetic field is expected to be quiet on February 12-14.
| Coronal holes (1) | Coronal mass ejections (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth
within the next 5 days. When the high speed stream has arrived the
color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

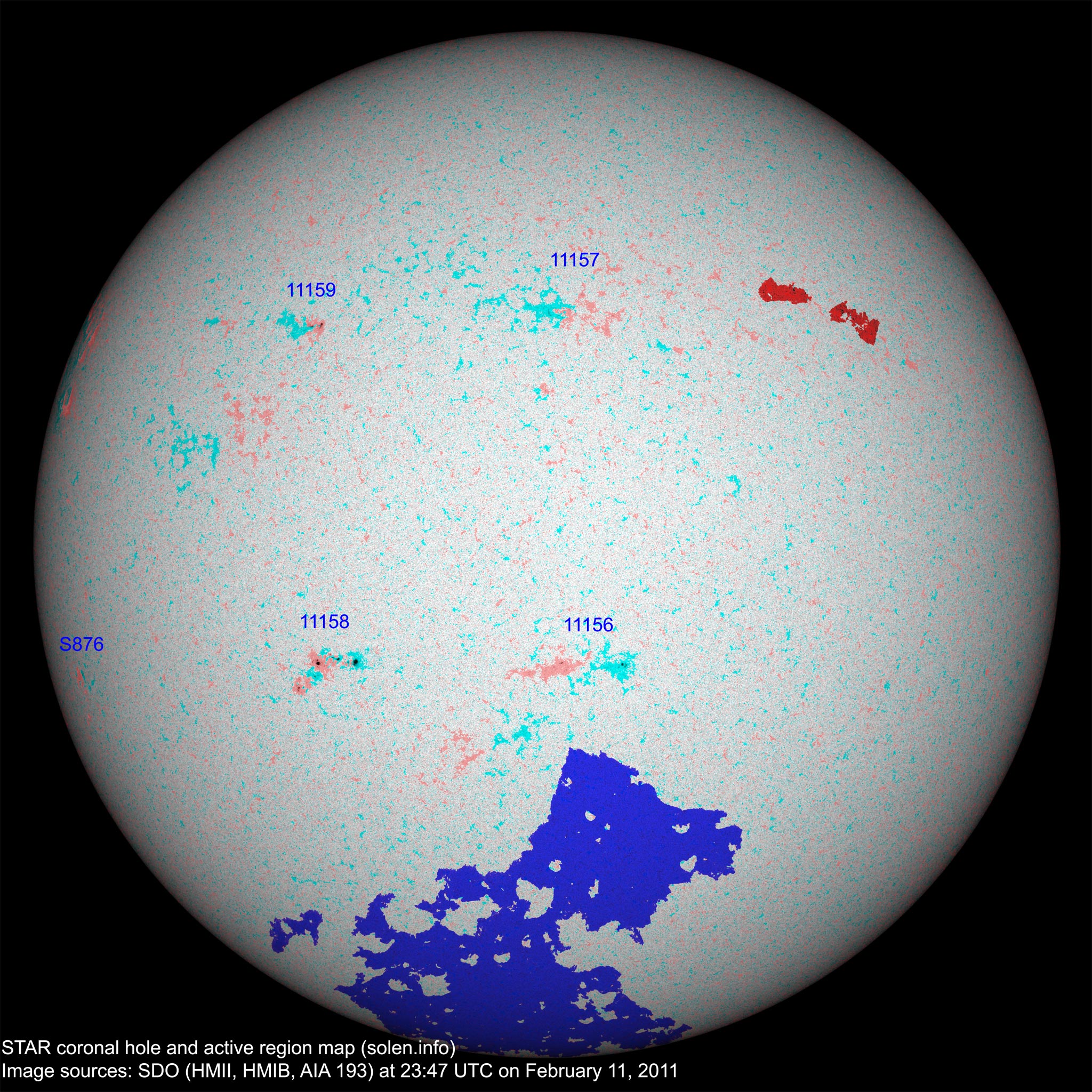

(Click on image for higher resolution image) Compare to the previous day's image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
| Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with polarity overlay |
Comment | |||
|---|---|---|---|---|---|---|---|---|---|---|
| SWPC | STAR | SWPC | STAR | Current | Previous | |||||
| 11155 | 2011.02.08 2011.02.07 |
N17W13 | plage | |||||||
| 11156 | 2011.02.08 | 5 | 8 | S21W06 | 0040 | CRO | BXO |
 |
 |
area: 0010 |
| 11157 | 2011.02.08 | 2 | 8 | N18W04 | 0010 | BXO | BXO |
 |
 |
|
| 11158 | 2011.02.11 2011.02.10 |
5 | 16 | S19E25 | 0040 | CRO | DAI |
 |
 |
area: 0070 beta-gamma formerly region S873 |
| 11159 | 2011.02.11 2011.02.10 |
2 | 4 | N18E26 | 0000 | BXO | AXX |
 |
 |
formerly region S874 |
| S875 | 2011.02.10 | N21E41 |
 |
plage | ||||||
| S876 | 2011.02.11 | 1 | S19E68 | 0000 | AXX |
 |
||||
| Total spot count: | 14 | 37 | ||||||||
| Sunspot number: | 54 | 87 | ||||||||
| Month | Average measured solar flux | International sunspot number (SIDC) | Smoothed sunspot number | Average ap (3) |
|---|---|---|---|---|
| 2008.07 | 65.7 (SF minimum) | 0.5 | 2.8 (-0.4) | |
| 2008.12 | 69.2 | 0.8 | 1.7 (-) sunspot minimum |
3.25 |
| 2009.11 | 73.6 | 4.1 | 7.6 (+0.5) | 2.45 / 2.63 |
| 2009.12 | 76.7 | 10.8 | 8.3 (+0.7) | 1.41 / 1.92 |
| 2010.01 | 81.1 | 13.2 | 9.3 (+1.0) | 2.93 / 3.07 |
| 2010.02 | 84.7 | 18.8 | 10.6 (+1.3) | 4.15 / 4.61 |
| 2010.03 | 83.4 | 15.4 | 12.3 (+1.7) | 4.58 / 4.65 |
| 2010.04 | 75.9 | 8.0 | 14.0 (+1.7) | 10.22 / 10.24 |
| 2010.05 | 73.8 | 8.7 | 15.5 (+1.5) | 9.18 / 8.15 |
| 2010.06 | 72.5 | 13.6 | 16.4 (+0.9) | 8.17 / 6.85 |
| 2010.07 | 79.8 | 16.1 | 16.8 (+0.4) | 6.31 / 5.15 |
| 2010.08 | 79.2 | 19.6 | (17.1 predicted, +0.3) | 8.49 / 7.77 |
| 2010.09 | 81.1 | 25.2 | (17.7 predicted, +0.6) | 5.33 / 5.45 |
| 2010.10 | 81.6 | 23.5 | (19.0 predicted, +1.3) | 6.07 / 6.27 |
| 2010.11 | 82.5 | 21.6 | (20.7 predicted, +1.7) | 4.80 / 5.50 |
| 2010.12 | 84.2 | 14.5 | (22.2 predicted, +1.5) | 3.41 / 4.35 |
| 2011.01 | 83.6 | 19.1 | (23.8 predicted, +1.6) | 4.32 |
| 2011.02 | 84.2 (1) | 15.5 (2A) / 39.4 (2B) | (25.5 predicted, +1.7) | (6.88) |
1) Running average based on the
daily 20:00 UTC observed solar flux
value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number
(accumulated daily sunspots / month days). The official SIDC international sunspot number is typically
30-50% lower. 2B) Month average to date.
3) Running average based on the preliminary
daily SWPC ap indices. Values in red are based on
the
official NGDC ap indices.
This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
