Recent activity

The geomagnetic field was quiet on December 20. Solar wind speed ranged between 332 and 401 km/s, weakly under the influence of a low speed stream from CH489.

Solar flux measured at 20h UTC on 2.8 GHz was 137.4 (decreasing 2.6 over the last solar rotation). The planetary A index was 4 (STAR Ap - based on the mean of three hour interval ap indices: 4.5). Three hour interval K indices: 21111121 (planetary), 21222222 (Boulder).

The background x-ray flux is at the class B6 level.

At midnight UTC the visible solar disk had 14 spotted regions (in 2K resolution SDO images).

Region 11376 [N25W32] decayed slowly and quietly.
Region 11377 [N12W37] decayed slowly and could soon become spotless.
Region 11380 [S21E33] decayed slowly and quietly.
Region 11381 [S18W03] was mostly quiet. Flare: C1.5 at 00:44 UTC
Region 11382 [S18E04] added spots and penumbral area. The region has polarity intermixing and could produce minor M class flares.
Region 11383 [N03E55] decayed slowly and quietly.
New region 11384 [N12E66] rotated into view at the northeast limb on December 19 and got an SWPC number the next day. The region developed on Dec.20 and could produce a minor M class flare.

Spotted regions not reported by NOAA/SWPC:
[S1378] emerged in the northern hemisphere near the central meridian on December 17. Note that SWPC considers this to be region 11376. The region developed slowly on Dec.19, then very quickly on Dec.20. There's polarity intermixing and a magnetic delta structure has formed in a central penumbra. M flares are possible. Location at midnight: N19W45. Flares: C2.1 at 11:52, C2.9 at 20:36, C6.2 at 22:50
[S1380] emerged in the northeast quadrant on December 18. Location at midnight: N27E13
[S1383] emerged in the southeast quadrant on December 19. Location at midnight: S22W08
[S1384] emerged in the northeast quadrant on December 19. Location at midnight: N18W09
[S1385] emerged in the southeast quadrant on December 20. Location at midnight: S03E22
[S1386] emerged in the northeast quadrant on December 20. Location at midnight: N15E35
[S1387] emerged in the northeast quadrant on December 20. Location at midnight: N11E04

Coronal mass ejections (CMEs)

December 18-20: No obviously Earth directed CMEs observed.

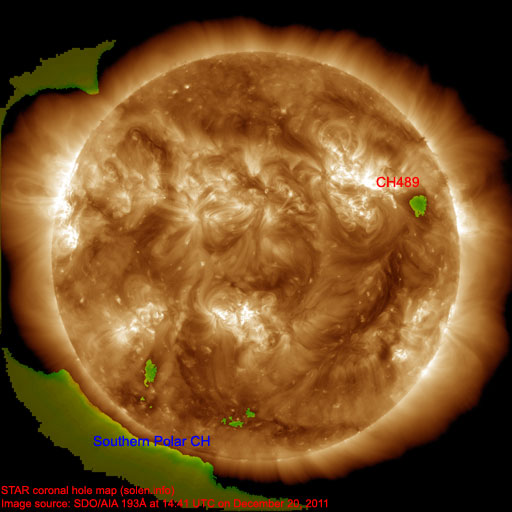

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

No obvious coronal holes are currently in or near Earth facing positions.

The above coronal hole map is based on a new method where coronal holes are detected automatically. The method may need some fine tuning, however, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using the new method, the extent and intensity of both holes are consistent with other data sources.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is fair. Propagation on long distance northeast-southwest paths is poor to fair.

Forecast

The geomagnetic field is expected to be quiet on December 21-23.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

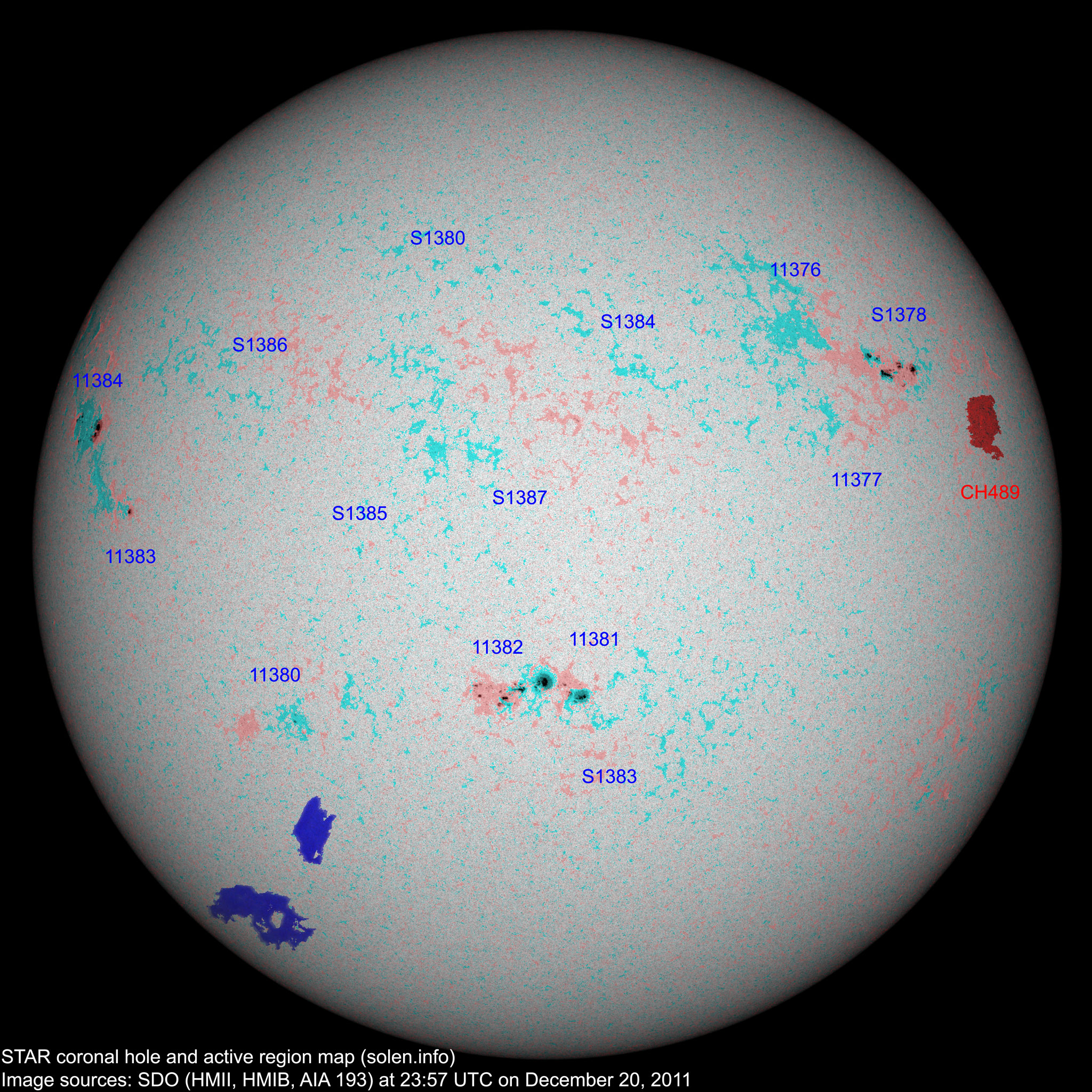

Active solar regions

Click on image for higher resolution image) Compare to the previous day's image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC STAR SDO SWPC STAR Current Previous
11374 2011.12.07
2011.12.08
1   S19W90 0050 HSX     rotated out of view
11378 2011.12.11
2011.12.16
    S17W63           plage
11376 2011.12.11
2011.12.13
14 3 N19W46 0040 DAI AXX location: N25W32

note that SWPC has region S1378 as 11376

11377 2011.12.13
2011.12.14
3 3 N12W40 0010 BXO BXO location: N12W37

area: 0000

S1371 2011.12.14     N20W49           plage
11381 2011.12.16
2011.12.18
8 15 S17W01 0090 DAO CSO location: S18W03

area: 0170

11380 2011.12.16
2011.12.17
4 4 S21E31 0030 CAO BXO location: S21E33

area: 0005

11379 2011.12.16
2011.12.17
    S29W61

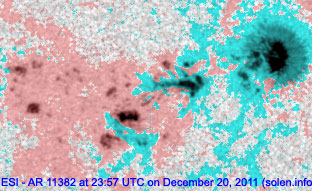

11382 2011.12.17
2011.12.18
13 30 S19E06 0120 DAI ESI

beta-gamma

area: 0350

location: S18E04

S1377 2011.12.17     N08W32           plage
S1378 2011.12.17   17 N19W45 0300   DAC beta-gamma-delta
11383 2011.12.18
2011.12.19
1 2 N03E53 0040 HSX HRX location: N03E55

area: 0020

S1380 2011.12.18   2 N27E13 0000   BXO
S1381 2011.12.18     N11W56           plage
11384 2011.12.19
2011.12.20
4 14 N12E61 0090 DAO DKO area: 0300
S1383 2011.12.19   1 S22W08 0000   AXX
S1384 2011.12.19   3 N18W09 0000   AXX
S1385 2011.12.20   1 S03E22 0000   AXX
S1386 2011.12.20   1 N15E35 0000   AXX

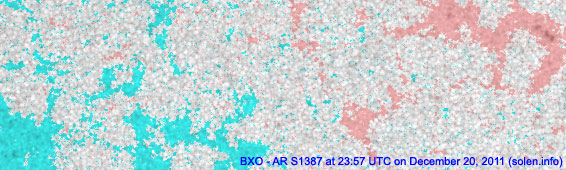

S1387 2011.12.20   5 N11E04 0000   BXO
Total spot count: 48 101
Sunspot number: 128 241  (total spot count + 10 * number of spotted regions)
Weighted penumbral SN: 83 129  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 77 108  k * (sunspot number). k = 0.6 for SWPC. k = 0.45 (changed from 0.33 on Nov.1) for STAR SDO

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2008.07 65.7 (SF minimum) 0.5 2.8 (-0.4)
2008.12 69.2 0.8 1.7 (-)
sunspot minimum
3.25
2010.10 81.6 23.5 23.2 (+3.6) 6.07 / 6.27
2010.11 82.5 21.5 26.5 (+3.3) 4.80 / 5.50
2010.12 84.2 14.4 28.8 (+2.3) 3.41 / 4.35
2011.01 83.6 19.1 31.0 (+2.2) 4.32 / 5.51
2011.02 94.6 29.4 33.4 (+2.4) 5.41 / 6.44
2011.03 115.0 56.2 36.9 (+3.5) 7.79 / 8.18
2011.04 112.6 54.4 41.8 (+4.9) 9.71 / 8.83
2011.05 95.8 41.6 47.6 (+5.8) 9.18 / 8.94
2011.06 95.8 37.0 (53.7 projected, +6.1) 8.96 / 8.06
2011.07 94.2 43.9 (60.0 projected, +6.3) 9.14 / 8.16
2011.08 101.7 50.6 (65.5 projected, +5.5) 8.16 / 7.26
2011.09 133.8 78.0 (68.8 projected, +3.3) 12.80 / 12.27
2011.10 137.3 88.0 (72.3 projected, +3.5) 7.52
2011.11  153.5 96.7 (76.6 projected, +4.3) 4.58
2011.12 140.6 (1) 69.4 (2A) / 107.5 (2B) (82.1 projected, +5.5) (3.60)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Month average to date.
3) Running average based on the preliminary daily SWPC ap indices. Values in red are based on the official NGDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
