The geomagnetic field was very quiet on December 8. Solar wind speed ranged between 276 and 332 km/s.
Solar flux measured at 20h UTC on 2.8 GHz was 144.8 (decreasing 29.1 over the last solar rotation). The planetary A index was 2 (STAR Ap - based on the mean of three hour interval ap indices: 2.4). Three hour interval K indices: 11001111 (planetary), 11001111 (Boulder).
The background x-ray flux is at the class B4 level.
At midnight UTC the visible solar disk had 18 spotted regions (in 2K resolution SDO images).
Region 11362 [N07W74] decayed slowly and quietly.
Region 11363 [S17W51] decayed slowly and quietly.
Region 11364 [N19W43] decayed again and was quiet
Region 11365 [N18W62] decayed and could soon become spotless. Note that
SWPC inexplicably has assigned 11365 to a new region (S1360) which is located 18
degrees further west.
Region 11366 [N18W02] was quiet and stable.
Region 11367 [S17W17] was quiet and stable. Note that SWPC had a typo for
the location of this region on December 7. Unfortunately they failed to discover
their typo and have now assigned region 11367 to what was region 11370.
Region 11368 [S15E13] decayed slowly and quietly.
Region 11369 [N22E05] decayed slowly and quietly.
Region 11370 [S25W13] decayed slowly and quietly.
Region 11371 [N10E02] decayed slowly and quietly.
Region 11372 [N08E18] developed slowly and was quiet.
New region 11373 [S29W37] emerged in the southwest quadrant on December 7
and was numbered the next day by SWPC.
New region 11374 [S16E68] rotated into view at the southeast limb on
December 7 and was assigned an SWPC number the next day.
Flare: C1.0 at 00:10 UTC
New region 11375 [N09E68] emerged near the northeast limb on December 8.
The region has weak polarity intermixing. Flare:
C1.2 at 01:59 UTC
Spotted regions not reported by NOAA/SWPC:
[S1342] rotated into view at the southeast limb on Nov.28. The region
developed quickly on Dec.1-3 while moderately quick decay has been observed
since December 4. Location at midnight: S22W47.
[S1349] was split off from 11366 on December 4. Location at midnight:
N28E03
[S1353] emerged in the northeast quadrant on December 4. Location at
midnight: N13E09
[S1360] emerged quickly in the northwest quadrant on December 7. Location at
midnight: N17W80
December 6-8: No obviously Earth directed CMEs observed.
Coronal hole history (since late October
2002)
Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago
A small coronal hole (CH487) in the northern hemisphere was in an Earth facing position on December 7-8.
The above coronal hole map is based on a new method where coronal holes are detected automatically. The method may need some fine tuning, however, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using the new method, the extent and intensity of both holes are consistent with other data sources.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is fair to good. Propagation on long distance northeast-southwest paths is poor.
The geomagnetic field is expected to be quiet on December 9-10. On December 11-12 there's a chance of a few unsettled and active intervals due to effects from CH487.
| Coronal holes (1) | Coronal mass ejections (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.
Click on image for higher resolution image)
Compare to the
previous day's image

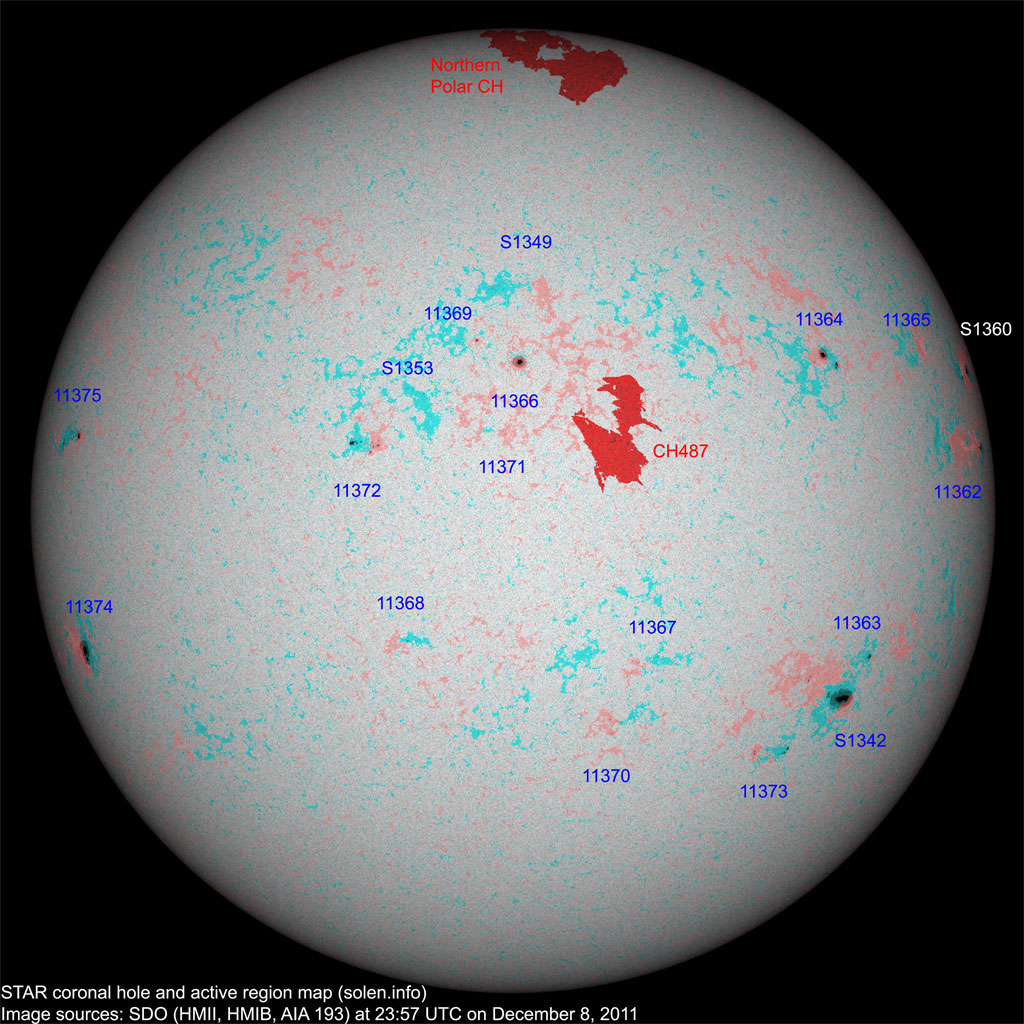

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
| Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | |||
|---|---|---|---|---|---|---|---|---|---|---|
| SWPC | STAR SDO | SWPC | STAR | Current | Previous | |||||
| 11362 | 2011.11.27 | 3 | 3 | N07W72 | 0060 | CSO | CAO |
 |
 |
|
| 11363 | 2011.11.28 2011.11.29 |
7 | 3 | S21W47 | 0270 | DHO | HRX |
 |
 |
location: S17W51 area: 0020 SWPC includes S1342 in this region |
| 11364 | 2011.11.28 2011.11.29 |
5 | 4 | N17W43 | 0060 | DSO | DSO |
 |
 |
area: 0100 |
| S1342 | 2011.11.28 | 7 | S22W47 | 0400 | CHO |
 |
 |
|||
| 11365 | 2011.12.01 2011.12.02 |
2 | 1 | N16W77 (N18W62) |
0070 | CSO | AXX |
 |
 |
SWPC has reassigned 11365 to a new region 18 degrees further west area: 0000 |
| 11366 | 2011.12.02 2011.12.03 |
2 | 3 | N18E01 | 0040 | CSO | HSX |
 |
 |
area: 0110 |
| 11367 | 2011.12.04 | 3 | 3 | S26W15 (S17W17) |
0030 | CSO | BXO |
 |
 |
area: 0000 |
| S1349 | 2011.12.04 | 2 | N28E03 | 0000 | AXX |
 |
 |
|||
| 11369 | 2011.12.04 2011.12.05 |
1 | N22E01 | 0010 | AXX |
 |
 |
location: N22E05 | ||
| 11371 | 2011.12.04 2011.12.07 |
1 | 1 | N09W01 | 0010 | HRX | AXX |
 |
 |
location: N10E02 |
| S1353 | 2011.12.04 | 3 | N13E09 | 0000 | BXO |
 |
 |
|||
| 11368 | 2011.12.05 | 1 | S16E13 | 0000 | AXX |
 |
 |
|||
| 11370 | 2011.12.05 2011.12.07 |
5 | S24W17 | 0000 | AXX |
 |
 |
SWPC is currently using 11367 for this region location: S25W13 |
||
| S1355 | 2011.12.05 | N23W19 |
 |
|||||||
| S1356 | 2011.12.05 | S16W34 | plage | |||||||
| 11372 | 2011.12.06 2011.12.07 |
2 | 10 | N10E14 | 0000 | BXO | DRI |
 |
 |
area: 0040 |
| 11374 | 2011.12.07 2011.12.08 |
2 | 4 | S16E68 | 0150 | CSO | CKO |
 |
 |
area: 0350 |
| 11373 | 2011.12.07 2011.12.08 |
2 | 8 | S30W39 | 0020 | DRO | BXO |
 |
 |
|
| S1360 | 2011.12.07 | 3 | N17W80 | 0090 | CSO |
 |
 |
|||
| S1361 | 2011.12.07 | N30E32 |
 |
plage | ||||||
| S1362 | 2011.12.07 | S20E19 |
 |
plage | ||||||
| S1363 | 2011.12.07 | S14W08 |
 |
plage | ||||||
| 11375 | 2011.12.08 | 3 | 7 | N08E70 | 0010 | BXO | CAO |
 |
beta-gamma | |
| Total spot count: | 32 | 69 | ||||||||
| Sunspot number: | 142 | 249 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted penumbral SN: | 78 | 120 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 85 | 112 | k * (sunspot number). k = 0.6 for SWPC. k = 0.45 (changed from 0.33 on Nov.1) for STAR SDO | |||||||
| Month | Average measured solar flux | International sunspot number (SIDC) | Smoothed sunspot number | Average ap (3) |
|---|---|---|---|---|
| 2008.07 | 65.7 (SF minimum) | 0.5 | 2.8 (-0.4) | |
| 2008.12 | 69.2 | 0.8 | 1.7 (-) sunspot minimum |
3.25 |
| 2010.10 | 81.6 | 23.5 | 23.2 (+3.6) | 6.07 / 6.27 |
| 2010.11 | 82.5 | 21.5 | 26.5 (+3.3) | 4.80 / 5.50 |
| 2010.12 | 84.2 | 14.4 | 28.8 (+2.3) | 3.41 / 4.35 |
| 2011.01 | 83.6 | 19.1 | 31.0 (+2.2) | 4.32 / 5.51 |
| 2011.02 | 94.6 | 29.4 | 33.4 (+2.4) | 5.41 / 6.44 |
| 2011.03 | 115.0 | 56.2 | 36.9 (+3.5) | 7.79 / 8.18 |
| 2011.04 | 112.6 | 54.4 | 41.8 (+4.9) | 9.71 / 8.83 |
| 2011.05 | 95.8 | 41.6 | 47.6 (+5.8) | 9.18 / 8.94 |
| 2011.06 | 95.8 | 37.0 | (53.7 projected, +6.1) | 8.96 / 8.06 |
| 2011.07 | 94.2 | 43.9 | (60.0 projected, +6.3) | 9.14 / 8.16 |
| 2011.08 | 101.7 | 50.6 | (65.5 projected, +5.5) | 8.16 / 7.26 |
| 2011.09 | 133.8 | 78.0 | (68.8 projected, +3.3) | 12.80 / 12.27 |
| 2011.10 | 137.3 | 88.0 | (72.3 projected, +3.5) | 7.52 |
| 2011.11 | 153.5 | 96.7 | (76.6 projected, +4.3) | 4.58 |
| 2011.12 | 155.0 (1) | 34.8 (2A) / 134.9 (2B) | (82.1 projected, +5.5) | (3.95) |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official SIDC international sunspot number is typically 30-50% lower. 2B) Month
average to date.
3) Running average based on the preliminary daily SWPC ap indices.
Values in red are based on the official NGDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
