Recent activity

The geomagnetic field was quiet on August 25. Solar wind speed ranged between 367 and 483 km/s.

Solar flux measured at 20h UTC on 2.8 GHz was 104.2 (decreasing 7.5 over the last solar rotation). The planetary A index was 4 (STAR Ap - based on the mean of three hour interval ap indices: 4.3). Three hour interval K indices: 20012122 (planetary), 10012221 (Boulder).

The background x-ray flux is at the class B2 level.

At midnight UTC the visible solar disk had 8 spotted regions (in 2K resolution SDO images).

Region 11271 decayed further and could soon loose all penumbra on the trailing spots.
Region 11274 was quiet and stable.
Region 11275 developed slowly and quietly.
New region 11277 rotated into view at the northeast limb on August 24 and was numbered the next day by SWPC.
New region 11278 emerged in the northwest quadrant on August 23 and got an SWPC number 2 days later.
New region 11279 rotated into view at the northeast limb.

Spotted regions not numbered by NOAA/SWPC:
[S1181] emerged in the northeast quadrant on August 24. Location at midnight: N16E38
[S1182] emerged in the southeast quadrant on August 25. Location at midnight: S19E11

Coronal mass ejections (CMEs)

August 23-25: No obviously Earth directed CMEs were observed in LASCO or STEREO imagery.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

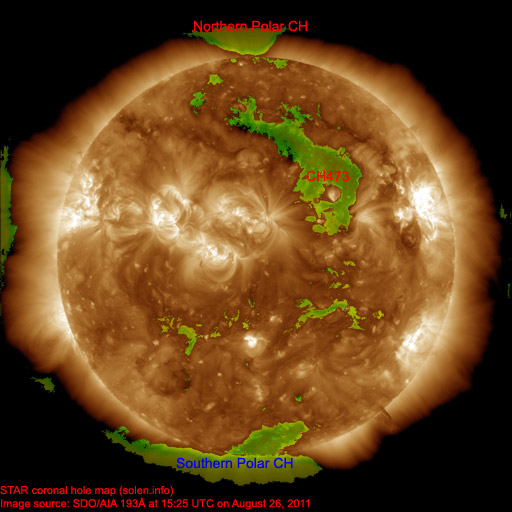

A recurrent coronal hole (CH473) in the northern hemisphere was in an Earth facing position on August 24-25.

The above coronal hole map is based on a new method where coronal holes are detected automatically. The method may need some fine tuning, however, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using the new method, the extent and intensity of both holes are consistent with other data sources.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is fair. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be quiet on August 26. Quiet to active conditions are possible on August 27-28 due to CH473.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)



1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Active solar regions

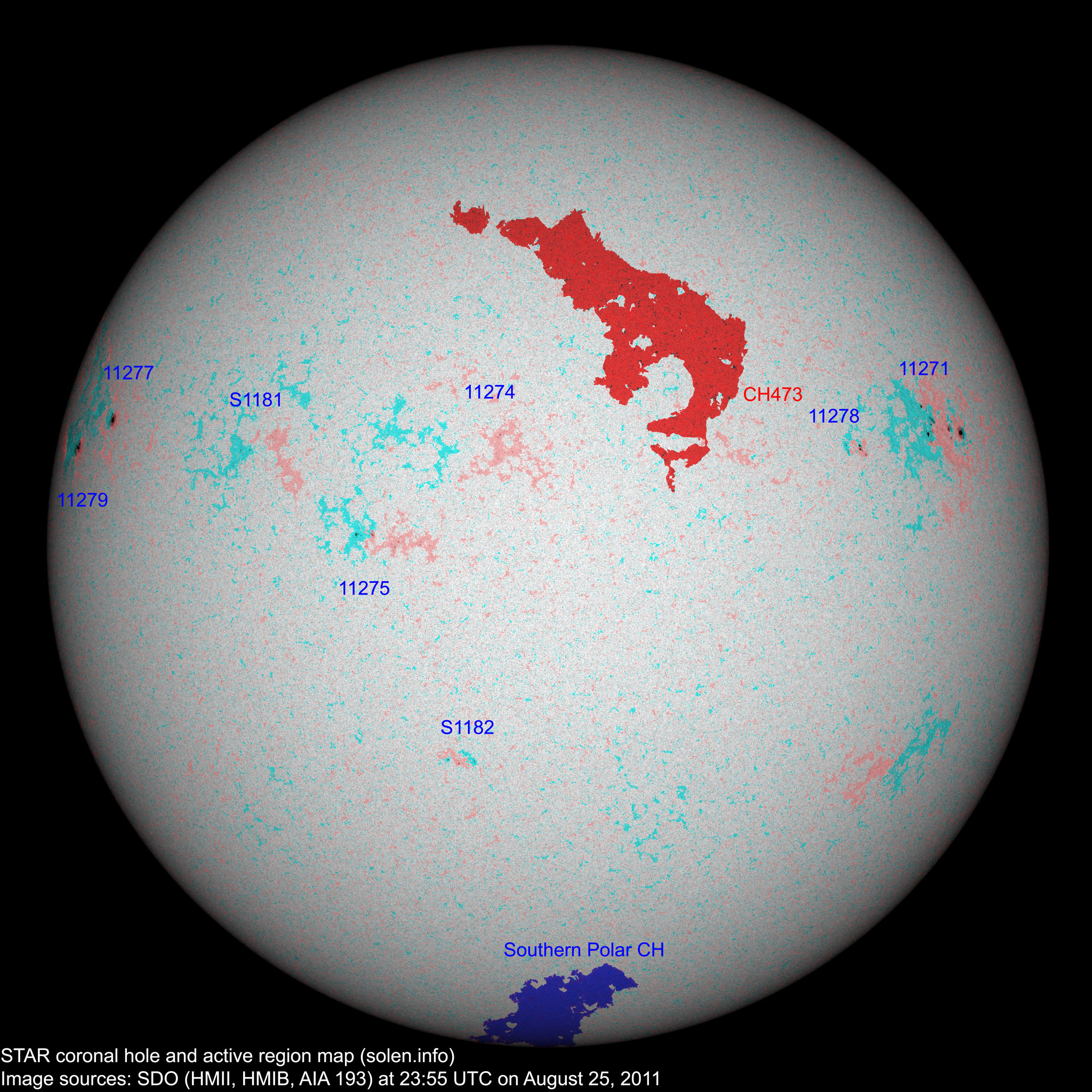

(Click on image for higher resolution image) Compare to the previous day's image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with polarity overlay
Comment
SWPC STAR SDO SWPC STAR Current Previous
11271 2011.08.14
2011.08.15
15 14 N17W56 0140 ESI DSI



11272 2011.08.15
2011.08.16
1   S21W49 0000 AXX

plage

S1171 2011.08.16     N06W50           plage
11274 2011.08.19
2011.08.20
2 2 N17E05 0010 BXO AXX location: N19E06
11275 2011.08.20
2011.08.21
3 11 N07E17 0010 BXO CRO location: N07E18
11278 2011.08.23
2011.08.25
4 7 N16W40 0010 BXO CRO formerly region S1178
S1179 2011.08.23     N28W50           plage
11276 2011.08.23     N20E20           region should be deleted, spot was the trailing spot of region 11274
11277 2011.08.24
2011.08.25
1 1 N17E62 0050 HSX HSX formerly region S1180
S1181 2011.08.24   2 N16E38 0010   AXX
11279 2011.08.25 1 2 N14E75 0120 HSX HSX
S1182 2011.08.25   3 S18E11 0010   BXO   beta-gamma
Total spot count: 27 42
Sunspot number: 97 122  (total spot count + 10 * number of spotted regions)
Classification adjusted SN: 42 63  (Sum of total spot count + classification adjustment for each AR. Classification adjustment: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 58 40  k * (sunspot number). k = 0.6 for SWPC. k = 0.33 for STAR SDO

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2008.07 65.7 (SF minimum) 0.5 2.8 (-0.4)
2008.12 69.2 0.8 1.7 (-)
sunspot minimum
3.25
2010.05 73.8 8.7 15.5 (+1.5) 9.18 / 8.15
2010.06 72.5 13.6 16.4 (+0.9) 8.17 / 6.85
2010.07 79.8 16.1 16.7 (+0.3) 6.31 / 5.15
2010.08 79.2 19.6 17.4 (+0.7) 8.49 / 7.77
2010.09 81.1 25.2 19.6 (+2.2) 5.33 / 5.45
2010.10 81.6 23.5 23.2 (+3.6) 6.07 / 6.27
2010.11 82.5 21.5 26.5 (+3.3) 4.80 / 5.50
2010.12 84.2 14.4 28.8 (+2.3) 3.41 / 4.35
2011.01 83.6 19.1 31.0 (+2.2) 4.32 / 5.51
2011.02 94.6 29.4 (33.6 predicted, +2.6) 5.41 / 6.44
2011.03 115.0 56.2 (36.6 predicted, +3.0) 7.79 / 8.18
2011.04 112.6 54.4 (39.4 predicted, +2.8) 9.71 / 8.83
2011.05 95.8 41.6 (42.7 predicted, +3.3) 9.18 / 8.94
2011.06 95.8 37.0 (46.5 predicted, +3.8) 8.96
2011.07 94.2 43.9 (50.6 predicted, +4.1) 9.14
2011.08 101.3 (1) 50.3 (2A) / 62.3 (2B) (54.8 predicted, +4.2) (9.14)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Month average to date.
3) Running average based on the preliminary daily SWPC ap indices. Values in red are based on the official NGDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
