Recent activity

The geomagnetic field was quiet on September 20. Solar wind speed ranged between 283 and 349 km/s. Solar wind speed increased early on September 21 as the leading part of a high speed stream from CH422 arrived.

Solar flux measured at 20h UTC on 2.8 GHz was 82.6 (up 9.0 over the last solar rotation). The planetary A index  was 4 (STAR Ap - based on the mean of three hour interval ap indices: 3.5). Three hour interval K indices: 02010121 (planetary), 12011020 (Boulder).

The background x-ray flux is at the class B3 level.

At midnight UTC the visible solar disk had 2 spotted regions.

Region 11106 decayed further and could become spotless today or tomorrow.
Region 11108 was quiet with a large penumbral area containing all the leader spots. Occasional C flares are possible, as is a minor M class flare.

An active region just behind the northeast limb could produce further C flare activity and maybe even a minor M class flare. Flares: C2.1 at 19:45 and C1.2 at 21:03 UTC

Coronal mass ejections (CMEs)

September 18-20: No obviously Earth directed CMEs were seen in LASCO or STEREO images.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A large, well defined, recurrent coronal hole (CH422) in the northern hemisphere was Earth facing on September 18-21.

Image courtesy of SDO (NASA) and the AIA consortium. Annotations are my own. The darkest areas on the solar disk are likely coronal holes.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is fair to good. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be quiet to active with a possibility of minor storm conditions on September 21-24 due to effects from CH422.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)



1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

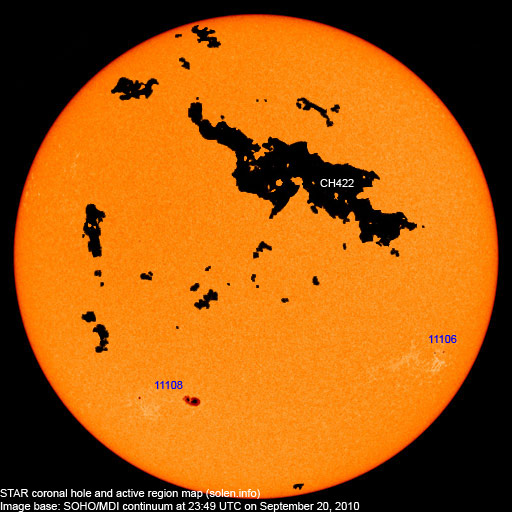

Active solar regions (Recent map)

Compare to the previous day's image

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered Spot count Location at midnight Area Classification SDO (NASA) / AIA 4500
Comment
SWPC STAR SWPC STAR Current Previous
11106 2010.09.11 7 3 S21W53 0020 BXO BXO
11107 2010.09.12     N33W42           plage
S814 2010.09.13     S30W11           plage
11108 2010.09.16 11 8 S30E24 0380 FKO FKO
Total spot count: 18 11
SSN: 38 31

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2000.04 184.2 125.5 120.8
cycle 23 sunspot max.

2000.07 202.3 170.1 119.8
2001.12 235.1 132.2 114.6 (-0.9)
2008.07 65.7 (SF minimum) 0.5 2.8 (-0.4)
2008.12 69.2 0.8 1.7 (-)
sunspot minimum
3.25
2009.06 68.6 2.9 2.7 (+0.4) 5.22
2009.07 68.2 3.2 3.6 (+0.9) 5.49 / 4.55
2009.08 67.3 0.0 4.8 (+1.2) 5.70 / 4.89
2009.09 70.5 4.3 6.2 (+1.4) 3.88 / 3.61
2009.10 72.6 4.8 7.1 (+0.9) 3.66 / 3.56
2009.11 73.6 4.1 7.6 (+0.5) 2.45 / 2.63
2009.12 76.7 10.8 8.3 (+0.7) 1.41 / 1.92
2010.01 81.1 13.2 9.3 (+1.0) 2.93 / 3.07
2010.02 84.7 18.8 10.6 (+1.3) 4.15 / 4.61
2010.03 83.4 15.4 (12.3 predicted, +1.7) 4.58 / 4.65
2010.04 75.9 7.9 (13.9 predicted, +1.6) 10.22 / 10.24
2010.05 73.8 8.8 (15.2 predicted, +1.3) 9.18 / 8.15
2010.06 72.5 13.5 (16.6 predicted, +1.4) 8.17 / 6.85
2010.07 79.8 16.1 (18.3 predicted, +1.7) 6.31 / 5.15
2010.08 79.2 19.6 (19.5 predicted, +1.2) 8.49 / 7.77
2010.09 79.1 (1) 21.3 (2A) / 31.7 (2B) (20.7 predicted, +1.2) (5.16)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official international sunspot number is typically 30-50% lower. 2B) Month average to date.
3) Running average based on the daily SWPC ap indices. Values in red are based on the official NGDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
