The geomagnetic field was quiet to unsettled on July 29. Solar wind speed ranged between 560 and 676 km/s under the influence of a high speed stream from CH415.
Solar flux measured at 20h UTC on 2.8 GHz was 84.6. The planetary A index was 7 (STAR Ap - based on the mean of three hour interval ap indices:7.1). Three hour interval K indices: 23222112 (planetary), 32322222 (Boulder).
The background x-ray flux is at the class B2 level.
At midnight there were 3 spotted regions on the visible solar disk.
Region 11089 decayed substantially and was mostly quiet.
Region 11092 developed a few small spots while the single penumbra was
mostly unchanged.
Spotted regions not numbered by NOAA/SWPC:
[S794] This region has had small spots coming and going over the last
few days. Location at midnight: S20W01
July 27-29: No obviously Earth directed CMEs were seen in LASCO or STEREO images.
Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago

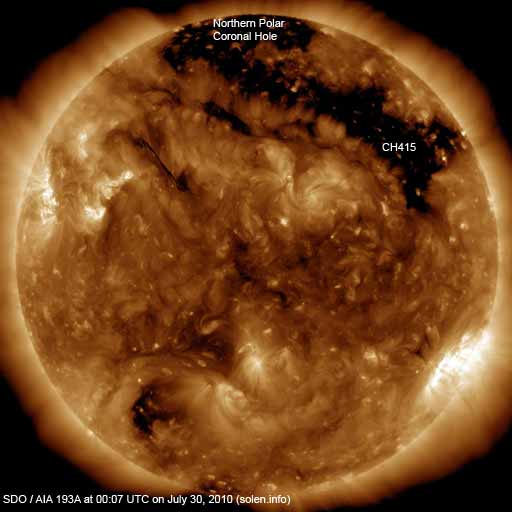

A recurrent coronal hole (CH415) in the northern hemisphere was Earth facing on July 21-26.
Image courtesy of SDO (NASA) and the AIA consortium. Annotations are my own. The darkest areas on the solar disk are likely coronal holes.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is fair.
The geomagnetic field is expected to be quiet to unsettled on July 30-31 due to effects from CH415 and quiet on August 1-2.
| Coronal holes (1) | Coronal mass ejections (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth
within the next 5 days. When the high speed stream has arrived the
color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.
Compare to the previous day's image

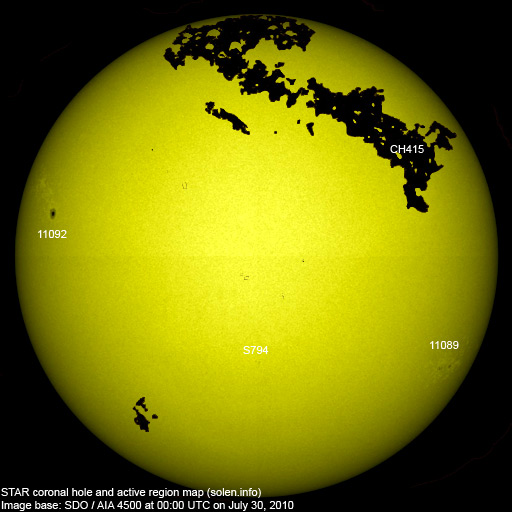

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
| Active region | Date numbered | Spot count | Location at midnight | Area | Classification | SDO (NASA) / AIA 4500 image |
Comment | |||
|---|---|---|---|---|---|---|---|---|---|---|
| SWPC | STAR | SWPC | STAR | Current | Previous | |||||
| 11089 | 2010.07.19 | 9 | 8 | S24W62 | 0140 | CAO | DSO |
 |
area: 0040 | |
| S790 | 2010.07.21 | N14W50 | plage | |||||||
| 11090 | 2010.07.24 | N22W10 | plage | |||||||
| 11092 | 2010.07.28 | 2 | 8 | N14E63 | 0210 | CSO | CSO |
 |
||
| S794 | 2010.07.30 | 2 | S20W01 | 0000 | BXO |
 |
||||
| Total spot count: | 11 | 18 | ||||||||
| SSN: | 31 | 48 | ||||||||
| Month | Average measured solar flux | International sunspot number (SIDC) | Smoothed sunspot number | Average ap (3) |
|---|---|---|---|---|
| 2000.04 | 184.2 | 125.5 | 120.8 cycle 23 sunspot max. |
|
| 2000.07 | 202.3 | 170.1 | 119.8 | |
| 2001.12 | 235.1 | 132.2 | 114.6 (-0.9) | |
| 2008.07 | 65.7 (SF minimum) | 0.5 | 2.8 (-0.4) | |
| 2008.12 | 69.2 | 0.8 | 1.7 (-) sunspot minimum |
3.25 |
| 2009.05 | 70.5 | 2.9 | 2.3 (+0.1) | 4.75 |
| 2009.06 | 68.6 | 2.9 | 2.7 (+0.4) | 5.22 |
| 2009.07 | 68.2 | 3.2 | 3.6 (+0.9) | 5.49 / 4.55 |
| 2009.08 | 67.3 | 0.0 | 4.8 (+1.2) | 5.70 / 4.89 |
| 2009.09 | 70.5 | 4.3 | 6.2 (+1.4) | 3.88 / 3.61 |
| 2009.10 | 72.6 | 4.8 | 7.1 (+0.9) | 3.66 / 3.56 |
| 2009.11 | 73.6 | 4.1 | 7.6 (+0.5) | 2.45 / 2.63 |
| 2009.12 | 76.7 | 10.8 | 8.3 (+0.7) | 1.41 / 1.92 |
| 2010.01 | 81.1 | 13.2 | (9.2 predicted, +0.9) | 2.93 / 3.07 |
| 2010.02 | 84.7 | 18.8 | (10.4 predicted, +1.2) | 4.15 / 4.61 |
| 2010.03 | 83.4 | 15.4 | (12.1 predicted, +1.7) | 4.58 / 4.65 |
| 2010.04 | 75.9 | 7.9 | (13.7 predicted, +1.6) | 10.22 / 10.24 |
| 2010.05 | 73.8 | 8.8 | (15.0 predicted, +1.3) | 9.18 / 8.15 |
| 2010.06 | 72.5 | 13.5 | (16.4 predicted, +1.4) | 8.17 / 6.85 |
| 2010.07 | 79.6 (1) | 21.6 (2) | (18.0 predicted, +1.6) | (6.29) |
1) Running average based on the
daily 20:00 UTC observed solar flux
value at 2800 MHz.
2) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number
(accumulated daily sunspots / month days). The official international sunspot number is typically
30-50% lower.
3) Running average based on the
daily SWPC ap indices. Values in red are based on
the
official NGDC ap indices.
