Solar Terrestrial Activity Report

Last major update issued on July 24, 2010 at 04:20 UTC.

[Solar and geomagnetic data - last month (updated daily)]
[Solar wind and electron fluence charts (updated daily)
[Solar cycles 21-24 (last update July 2, 2010)]
[Solar cycles 1-20]
[Graphical comparison of cycles 21, 22, 23 and 24 (last update July 3, 2010)]
[Graphical comparison of cycles 10, 12, 13, 14, 16 and 24 (last update July 4, 2010)]
[Historical solar and geomagnetic data charts 1954-2006 (last update April 5, 2007)]
[Archived reports (last update July 3, 2010)]

Recent activity

The geomagnetic field was quiet to unsettled on July 23. Solar wind speed ranged between 341 and 440 km/s under the influence of a low speed stream associared with CH414

Solar flux measured at 20h UTC on 2.8 GHz was 86.4. The planetary A index was 8 (STAR Ap - based on the mean of three hour interval ap indices: 7.6). Three hour interval K indices: 22212223 (planetary), 12221323 (Boulder).

The background x-ray flux is at the class B1 level.

At midnight there were 2 spotted regions on the visible solar disk.

Region 11089 decayed further losing spots and penumbral area. C flares are possible.

Spotted regions not numbered by NOAA/SWPC:
[S791] This region rotated into view at the northeast limb on July 23. Location at midnight: N23E73.

Coronal mass ejections (CMEs)

July 21-23: No obviously Earth directed CMEs were seen in LASCO or STEREO images.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A recurrent trans equatorial coronal hole (CH414) was in an Earth facing position on July 19-21. A recurrent coronal hole (CH415) in the northern hemisphere will be Earth facing on July 21-26.

Image courtesy of SDO (NASA) and the AIA consortium. Annotations are my own. The darkest areas on the solar disk are likely coronal holes.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor to fair. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be quiet to active on July 24-27 due to effects from CH414 and CH415.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)



1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

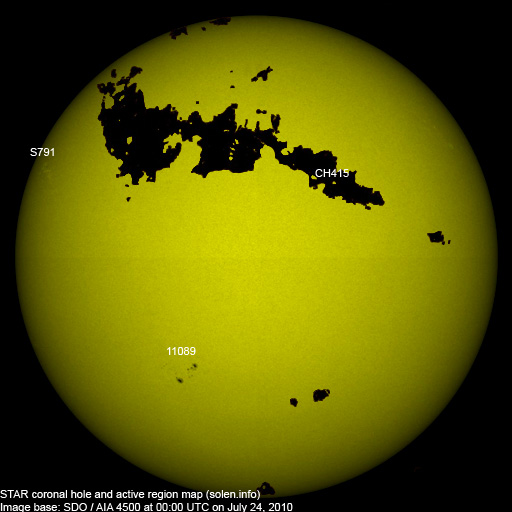

Active solar regions (Recent map)

Compare to the previous day's image

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered Spot count Location at midnight Area Classification SDO (NASA) / AIA 4500
Comment
SWPC STAR SWPC STAR Current Previous
S789 2010.07.18     N32W55           plage
11089 2010.07.19 35 27 S24E20 0200 ESI EAI
S790 2010.07.21     N14E02         plage
S791 2010.07.23   1 N23E73 0010   AXX   plage
Total spot count: 35 28
SSN: 45 48

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2000.04 184.2 125.5 120.8
cycle 23 sunspot max.

2000.07 202.3 170.1 119.8
2001.12 235.1 132.2 114.6 (-0.9)
2008.07 65.7 (SF minimum) 0.5 2.8 (-0.4)
2008.12 69.2 0.8 1.7 (-)
sunspot minimum
3.25
2009.05 70.5 2.9 2.3 (+0.1) 4.75
2009.06 68.6 2.9 2.7 (+0.4) 5.22
2009.07 68.2 3.2 3.6 (+0.9) 5.49 / 4.55
2009.08 67.3 0.0 4.8 (+1.2) 5.70 / 4.89
2009.09 70.5 4.3 6.2 (+1.4) 3.88 / 3.61
2009.10 72.6 4.8 7.1 (+0.9) 3.66 / 3.56
2009.11 73.6 4.1 7.6 (+0.5) 2.45 / 2.63
2009.12 76.7 10.8 8.3 (+0.7) 1.41 / 1.92
2010.01 81.1 13.2 (9.2 predicted, +0.9) 2.93 / 3.07
2010.02 84.7 18.8 (10.4 predicted, +1.2) 4.15 / 4.61
2010.03 83.4 15.4 (12.1 predicted, +1.7) 4.58 / 4.65
2010.04 75.9 7.9 (13.7 predicted, +1.6) 10.22 / 10.24
2010.05 73.8 8.8 (15.0 predicted, +1.3) 9.18 / 8.15
2010.06 72.5 13.5 (16.4 predicted, +1.4) 8.17 / 6.85
2010.07 78.3 (1) 15.5 (2) (18.0 predicted, +1.6) (5.42)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official international sunspot number is typically 30-50% lower.
3) Running average based on the daily SWPC ap indices. Values in red are based on the official NGDC ap indices.

This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
