The geomagnetic field was quiet on July 18. Solar wind speed ranged between 271 and 354 km/s.
Solar flux measured at 20h UTC on 2.8 GHz was 76.9 The planetary A index was 3 (STAR Ap - based on the mean of three hour interval ap indices: 2.6). Three hour interval K indices: 10000112 (planetary), 00012111 (Boulder).
The background x-ray flux is at the class B1 level.

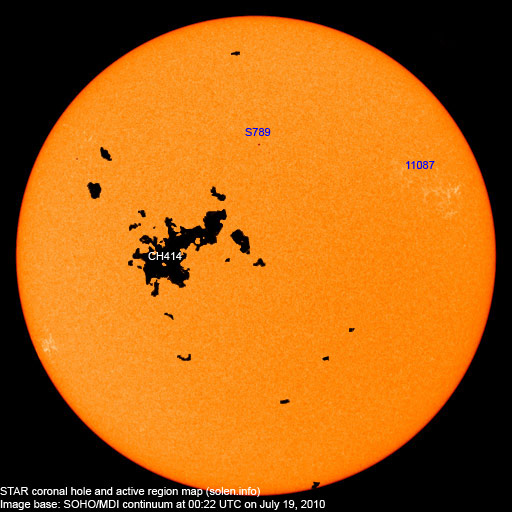

At midnight there were 2 spotted regions on the visible solar disk.
Region 11087 decayed losing all penumbra on the leader spots. A few tiny trailing spots emerged.
Spotted regions not numbered by NOAA/SWPC:
[S789] This region emerged in the northern hemisphere near the central meridian on July 18. Location at midnight: N32W03
An active region at the southeast limb mayt be capable of C class flaring.
July 16-18: No obviously Earth directed CMEs were seen in LASCO or STEREO images.
Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago
A recurrent trans equatorial coronal hole (CH414) will likely rotate into an Earth facing position on July 19-20.
Image courtesy of SDO (NASA) and the AIA consortium. Annotations are my own. The darkest areas on the solar disk are likely coronal holes.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is fair. Propagation on long distance northeast-southwest paths is poor.
The geomagnetic field is expected to be quiet on July 19-21. Some unsettled and active intervals are possible on July 22-23 due to effects from CH414.
|Coronal holes (1)||Coronal mass ejections (2)||M and X class flares (3)|
1) Effects from a coronal hole could reach Earth
within the next 5 days. When the high speed stream has arrived the
color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.
Compare to the previous day's image
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
|Active region||Date numbered||Spot count||Location at midnight||Area||Classification||SDO (NASA) / AIA 4500
|Total spot count:||2||8|
|Month||Average measured solar flux||International sunspot number (SIDC)||Smoothed sunspot number||Average ap
cycle 23 sunspot max.
|2008.07||65.7 (SF minimum)||0.5||2.8 (-0.4)|
|2009.07||68.2||3.2||3.6 (+0.9)||5.49 / 4.55|
|2009.08||67.3||0.0||4.8 (+1.2)||5.70 / 4.89|
|2009.09||70.5||4.3||6.2 (+1.4)||3.88 / 3.61|
|2009.10||72.6||4.8||7.1 (+0.9)||3.66 / 3.56|
|2009.11||73.6||4.1||7.6 (+0.5)||2.45 / 2.63|
|2009.12||76.7||10.8||8.3 (+0.7)||1.41 / 1.92|
|2010.01||81.1||13.2||(9.2 predicted, +0.9)||2.93 / 3.07|
|2010.02||84.7||18.8||(10.4 predicted, +1.2)||4.15 / 4.61|
|2010.03||83.4||15.4||(12.1 predicted, +1.7)||4.58 / 4.65|
|2010.04||75.9||7.9||(13.7 predicted, +1.6)||10.22 / 10.24|
|2010.05||73.8||8.8||(15.0 predicted, +1.3)||9.18 / 8.15|
|2010.06||72.5||13.5||(16.4 predicted, +1.4)||8.17 / 6.85|
|2010.07||76.2 (1)||9.7 (2)||(18.0 predicted, +1.6)||(5.43)|
1) Running average based on the
daily 20:00 UTC observed solar flux
value at 2800 MHz.
2) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official international sunspot number is typically 30-50% lower.
3) Running average based on the daily SWPC ap indices. Values in red are based on the official NGDC ap indices.
This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
