Recent activity

The geomagnetic field was quiet on January 8. Solar wind speed ranged between 306 and 353 km/s (all day average 347 km/s - decreasing 48 km/s compared to the previous day).

Solar flux measured at 20h UTC on 2.8 GHz was 88.0. The planetary A index was 4 (STAR Ap - based on the mean of three hour interval ap indices: 3.6). Three hour interval K indices: 02001121 (planetary), 03001101 (Boulder).

The background x-ray flux is at the class A5 level.

At midnight there were 3 spotted regions on the visible solar disk. The solar flare activity level was very low. No C class events were recorded during the day.

Region 10933 developed quickly as new negative polarity flux emerged just to the northwest of the main penumbra. The separation between the opposite polarity areas have decreased. If this development continues the region could soon begin producing C and M flares.
Region 10935 was quiet and stable.
New region 10937 emerged in the southeast quadrant on January 7 and was numbered the next day by NOAA/SEC. Slow development was observed on January 8. This is likely a cycle 24 region.

Coronal mass ejections (CMEs)

January 6-8: No obvious partly or fully Earth directed CMEs were detected in LASCO imagery.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A recurrent coronal hole (CH255) in the southern hemisphere will likely rotate into an Earth facing position on January 12-14.

Processed SOHO/EIT 195 image at 15:48 UTC on January 8. The darkest areas on the solar disk are likely coronal holes.

Forecast

The geomagnetic field is expected to be quiet on January 9-13.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)



1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Propagation

Monitoring has been temporarily suspended (as of January 1, 2007).

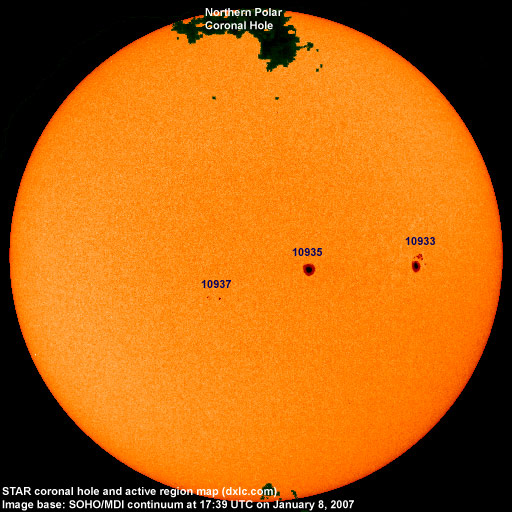

Active solar regions (Recent map)

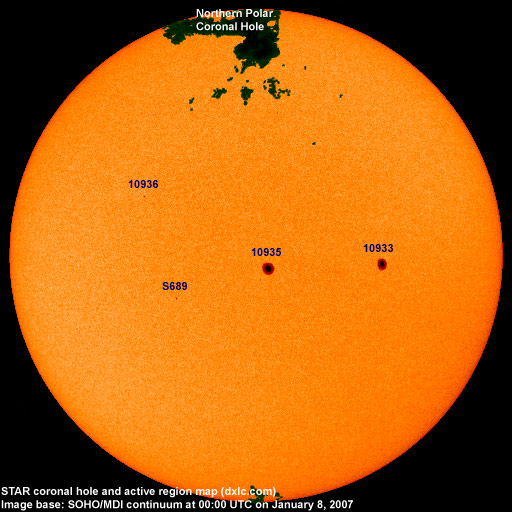

Compare to the previous day's image.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SEC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots. SEC active region numbers in the table below and in the active region map above are the historic SEC/USAF numbers.

Active region Date numbered SEC
spot
count
STAR
spot
count
Location at midnight Area Classification Comment
10933 2006.12.30 8 15 S05W44 0230 CKI classification was DAI at midnight
10934 2006.12.31     N04W41     plage
10935 2007.01.03 1 1 S07W16 0250 HKX
10936 2007.01.06 1   N10E15 0010 AXX spotless
10937 2007.01.08 2 5 S14E07 0020 CSO formerly region S689
Total spot count: 12 21
SSN: 52 51

Monthly solar cycle data

Month Average solar
flux at Earth
International sunspot number Smoothed sunspot number
2000.04 184.2 125.5 120.8
cycle 23 sunspot max.
2000.07 202.3 170.1 119.8
2001.12 235.1 132.2 114.6 (-0.9)
2005.11 86.3 18.0 24.9 (-0.6)
2005.12 90.7 41.1 23.0 (-1.9)
2006.01 83.4 15.3 20.8 (-2.2)
2006.02 76.5 4.9 18.6 (-2.2)
2006.03 75.4 10.6 17.3 (-1.3)
2006.04 89.0 30.2 17.1 (-0.2)
2006.05 80.9 22.2 17.3 (+0.2)
2006.06 76.5 13.9 16.3 (-1.0)
2006.07 75.7 12.2 (15.0 predicted, -1.3)
2006.08 79.0 12.9 (14.9 predicted, -0.1)
2006.09 77.8 14.5 (14.7 predicted, -0.2)
2006.10 74.3 10.4 (13.5 predicted, -1.2)
2006.11 86.3 21.5 (12.1 predicted, -1.4)
2006.12 84.5 13.6 (11.7 predicted, -0.4)
2007.01 87.4 (1) 10.3 (2) (11.9 predicted, +0.2)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (NOAA/SEC) sunspot number. The official international sunspot number is typically 30-50% lower.

This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
