The geomagnetic field was inactive to very quiet on January 11. Solar wind speed ranged between 272 and 341 (all day average 286) km/sec. A slight increase in geomagnetic activity was observed during the latter half of the day.
Solar flux measured at 20h UTC on 2.8 GHz was 77.3. The planetary A
index was 2 (STAR Ap - based on the mean of three hour interval ap
indices: 2.3).
Three hour interval K indices: 00001111 (planetary), 00012211 (Boulder).
The background x-ray flux is well below the class A1 level.
At midnight there was 1 spotted region on the visible solar disk. The solar flare activity level was very low. No C class events were recorded during the day.
Region 10845 decayed slowly and quietly.
January 9-11: No obviously fully or partly Earth directed CMEs were observed.
Coronal hole history (since late October 2002)
Compare today's report with the
situation one solar rotation ago: 28
days ago 27 days ago 26
days ago
A trans equatorial coronal hole (CH205) will rotate to an Earth facing position late on January 12 and on January 13.
Processed SOHO/EIT 284 image at 19:06 UTC on January 11. The darkest areas on the solar disk are likely coronal holes.
The geomagnetic field is expected to be quiet on January 12-15 becoming quiet to unsettled on January 16 due to effects from CH205.
Coronal holes (1) | Coronal mass ejections (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth
within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.
Long distance low and medium frequency (below 2 MHz) propagation along east-west paths over high and upper middle latitudes is very good. Propagation on long distance northeast-southwest paths is very poor. Trans Atlantic propagation conditions are normally monitored every night on 1470 kHz. Dominant station tonight: WLAM Lewiston ME. On other frequencies there were many stations from the eastern half of North America. Seldom heard CKRU 980 was noted as early as 22h UTC.

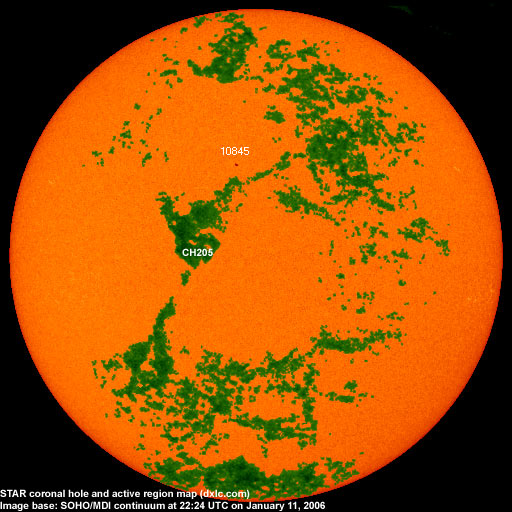

Compare to the previous day's image.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SEC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots. SEC active region numbers in the table below and in the active region map above are the historic SEC/USAF numbers.
Active region | Date numbered | SEC spot count |
STAR spot count |
Location at midnight | Area | Classification | Comment |
---|---|---|---|---|---|---|---|
10845 | 2006.01.06 | 2 | 2 | N17E04 | 0020 | HAX | |
Total spot count: | 2 | 2 | |||||
SSN: | 12 | 12 |
Month | Average solar flux at Earth |
International sunspot number | Smoothed sunspot number |
---|---|---|---|
2000.04 | 184.2 | 125.5 | 120.8 cycle 23 sunspot max. |
2000.07 | 202.3 | 170.1 | 119.8 |
2001.12 | 235.1 | 132.2 | 114.6 (-0.9) |
2004.11 | 113.2 | 43.5 | 35.3 (-0.6) |
2004.12 | 94.5 | 17.9 | 35.2 (-0.1) |
2005.01 | 102.2 | 31.3 | 34.6 (-0.6) |
2005.02 | 97.2 | 29.2 | 33.9 (-0.7) |
2005.03 | 89.9 | 24.5 | 33.5 (-0.4) |
2005.04 | 86.0 | 24.4 | 31.6 (-1.9) |
2005.05 | 99.3 | 42.6 | 28.9 (-2.7) |
2005.06 | 93.7 | 39.6 | 28.8 (-0.1) |
2005.07 | 96.4 | 39.9 | (29.1 predicted, +0.3) |
2005.08 | 90.5 | 36.4 | (27.4 predicted, -1.7) |
2005.09 | 91.1 | 22.1 | (25.4 predicted, -2.0) |
2005.10 | 77.0 | 8.5 | (23.4 predicted, -2.0) |
2005.11 | 86.3 | 18.0 | (21.0 predicted, -2.4) |
2005.12 | 90.7 | 41.2 | (18.2 predicted, -2.8) |
2006.01 | 81.5 (1) | 7.9 (2) | (15.2 predicted, -3.0) |
1) Running average based on the
daily 20:00 UTC observed solar flux
value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (NOAA/SEC)
sunspot number. The official international sunspot number is typically
30-50% lower.
This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
