Recent activity

The geomagnetic field was quiet to active on February 15. Solar wind speed ranged between 347 and 559 (all day average 407 km/sec under the influence of a high speed stream from CH211.

Solar flux measured at 20h UTC on 2.8 GHz was 78.5. The planetary A index was 12 (STAR Ap - based on the mean of three hour interval ap indices: 12.1).
Three hour interval K indices: 01132244 (planetary), 01242144 (Boulder).

The background x-ray flux is at the class A1 level.

At midnight there were 2 spotted regions on the visible solar disk. The solar flare activity level was very low. No C class events were recorded during the day.

New region 10854 emerged on February 13 and was numbered by SEC the next day.

Spotted regions not numbered by NOAA/SEC:
[S624] This region emerged near the northeast limb on February 13. Location at midnight: N05E41.

Coronal mass ejections (CMEs)

February 13-15: No obviously fully or partly Earth directed CMEs were observed.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report with the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A coronal hole (CH211) in the southern hemisphere was in an Earth facing position on February 12. A recurrent coronal hole (CH212) in the northern hemisphere will likely rotate to an Earth facing position on February 17.

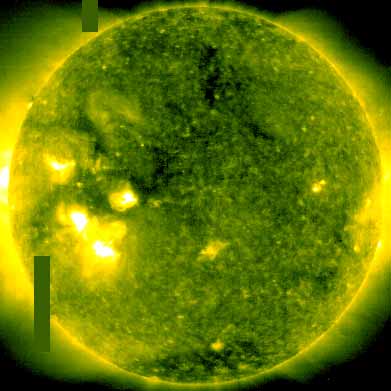

Processed SOHO/EIT 284 image at 01:06 UTC on February 16. The darkest areas on the solar disk are likely coronal holes.

Forecast

The geomagnetic field is expected to be quiet to unsettled on February 16 and quiet on February 17-19. Unsettled conditions are likely again on February 20-21 due to effects from CH212.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)
Coronal hole indicator CME indicator M and X class flare indicator

1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along east-west paths over high and upper middle latitudes is poor to fair. Propagation on long distance northeast-southwest paths is poor. Trans Atlantic propagation conditions are normally monitored every night on 1470 kHz. Dominant station tonight: Radio Vibración (Venezuela) and WWNN Pompano Beach FL. Stations from Newfoundland and Nova Scotia had fair to strong signals, otherwise signals from North America were generally poor.

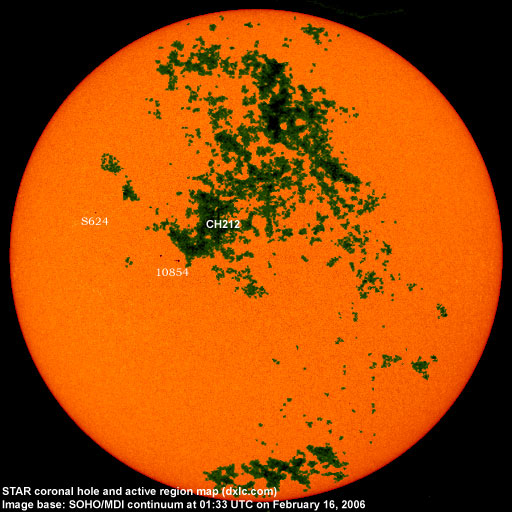

Active solar regions (Recent map)

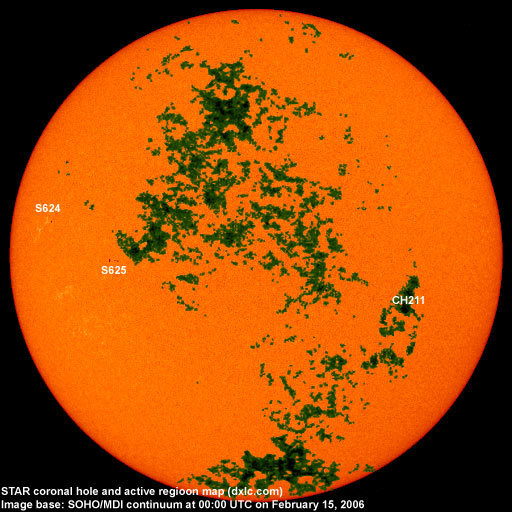

Compare to the previous day's image.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SEC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots. SEC active region numbers in the table below and in the active region map above are the historic SEC/USAF numbers.

Active region Date numbered SEC
spot
count
STAR
spot
count
Location at midnight Area Classification Comment
10854 2006.02.15 5 7 S07E23 0030 DSO formerly region S625
S623 2006.02.13     S12E36     plage
S624 2006.02.13   2 N05E41 0010 HSX
Total spot count: 5 9
SSN: 15 29

Monthly solar cycle data

Month Average solar
flux at Earth
International sunspot number Smoothed sunspot number
2000.04 184.2 125.5 120.8
cycle 23 sunspot max.
2000.07 202.3 170.1 119.8
2001.12 235.1 132.2 114.6 (-0.9)
2004.12 94.5 17.9 35.2 (-0.1)
2005.01 102.2 31.3 34.6 (-0.6)
2005.02 97.2 29.2 33.9 (-0.7)
2005.03 89.9 24.5 33.5 (-0.4)
2005.04 86.0 24.4 31.6 (-1.9)
2005.05 99.3 42.6 28.9 (-2.7)
2005.06 93.7 39.6 28.8 (-0.1)
2005.07 96.4 39.9 29.1 (+0.3)
2005.08 90.5 36.4 (27.6 predicted, -1.5)
2005.09 91.1 22.1 (25.8 predicted, -1.8)
2005.10 77.0 8.5 (24.0 predicted, -1.8)
2005.11 86.3 18.0 (21.6 predicted, -2.4)
2005.12 90.7 41.2 (18.7 predicted, -2.9)
2006.01 83.4 15.4 (15.6 predicted, -3.1)
2006.02 76.3 (1) 2.4 (2) (12.5 predicted, -3.1)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (NOAA/SEC) sunspot number. The official international sunspot number is typically 30-50% lower.

This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
