The geomagnetic field was quiet to ative on November 25. Solar wind speed ranged between 389 and 505 (all day average 442) km/sec under the influence of a high speed stream from CH199.
Solar flux measured at 20h UTC on 2.8 GHz was 79.9. The planetary
index was 10 (STAR Ap - based on the mean of three hour interval ap
Three hour interval K indices: 34321121 (planetary), 44322311 (Boulder).
The background x-ray flux is at the class A7 level.
At midnight there were 2 spotted regions on the visible solar disk. The solar flare activity level was very low. No C class events was recorded during the day.
Region 10824 was quiet and stable.
New region 10825 emerged on Nov.24 in the southeast quadrant and was numbered the next day by NOAA/SEC.
November 23-25: No obvious fully or partly Earth directed CMEs were observed.
history (since late October 2002)
Compare today's report with the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago
Recurrent trans equatorial coronal hole CH200 will rotate into an Earth facing position on November 28-29.

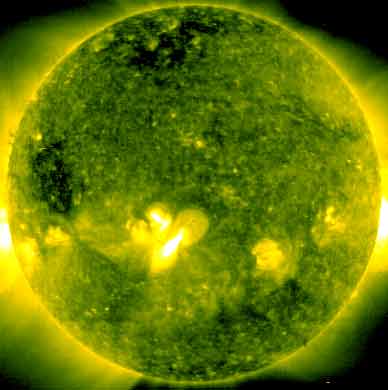

Processed SOHO/EIT 284 image at 01:06 UTC on November 26. The darkest areas on the solar disk are likely coronal holes.
The geomagnetic field is expected to be quiet to unsettled on November 26-27 and quiet on Nov.28-29.
|Coronal holes (1)||Coronal mass ejections (2)||M and X class flares (3)|
1) Effects from a coronal hole could reach Earth
within the next 5 days. When the high speed stream has arrived
the color changes to green.
2) Material from a CME is likely to impact Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.
Long distance low and medium frequency (below 2 MHz) propagation along east-west paths over high and upper middle latitudes is poor to fair. Propagation on long distance northeast-southwest paths is poor. Trans Atlantic propagation conditions are normally monitored every night on 1470 kHz. Dominant station tonight: Radio Vibración (Venezuela). A number of stations from the easternmost parts of North America were audible at fair signal levels. Cuban stations enjoyed reasonably good propagation as well.
Compare to the previous day's image.

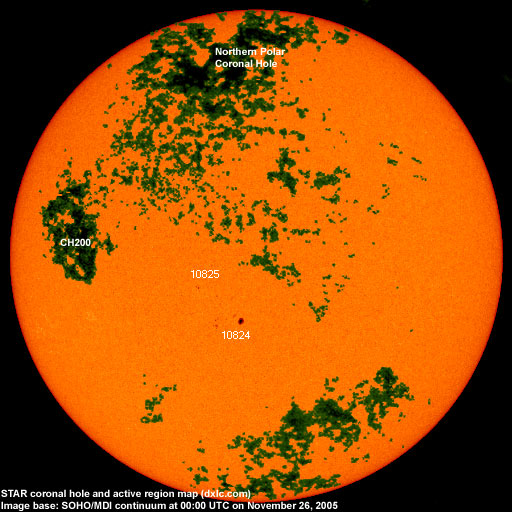

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SEC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots. SEC active region numbers in the table below and in the active region map above are the historic SEC/USAF numbers.
|Active region||Date numbered||SEC
|Location at midnight||Area||Classification||Comment|
|10822||2005.11.12||1||S09W97||0120||HAX||rotated out of view during the first hours of the day|
|10824||2005.11.20||4||12||S12E05||0070||CSO||classification was CAI at midnight|
formerly region S608
classification was CRO at midnight
|Total spot count:||9||17|
flux at Earth
|International sunspot number||Smoothed sunspot number|
cycle 23 sunspot max.
|2005.05||99.3||42.6||(28.9 predicted, -2.7)|
|2005.06||93.7||39.6||(27.3 predicted, -1.6)|
|2005.07||96.4||39.9||(26.1 predicted, -1.2)|
|2005.08||90.5||36.4||(24.3 predicted, -1.8)|
|2005.09||91.1||22.1||(22.2 predicted, -2.1)|
|2005.10||77.0||8.5||(20.2 predicted, -2.0)|
|2005.11||86.6 (1)||29.9 (2)||(17.8 predicted, -2.4)|
1) Running average based on the daily 20:00 UTC observed solar flux
value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (NOAA/SEC) sunspot number. The official international sunspot number is typically 30-50% lower.
This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
