The geomagnetic field was quiet to unsettled on May 23. Solar wind speed ranged between 384 and 447 km/sec.
Solar flux measured at 20h UTC on 2.8 GHz was 83.4. The planetary
A
index was 7 (STAR Ap - based on the mean of three hour interval ap
indices: 7.3).
Three hour interval K indices: 21113321 (planetary), 21112321 (Boulder).
The background x-ray flux is at the class A8 level.
At midnight there were 2 spotted regions on the visible solar disk. The solar flare activity level was very low. No C class events were recorded during the day.
Region 10766 decayed further and was quiet. The region could become spotless today.
Region 10767 developed in the leading spot section as new positive polarity flux emerged just east of the leading
negative polarity area. The region has mixed polarities and could produce C flares.
May 21-23: No obviously fully or partly potentially geoeffective CMEs were observed.
Coronal hole
history (since late October 2002)

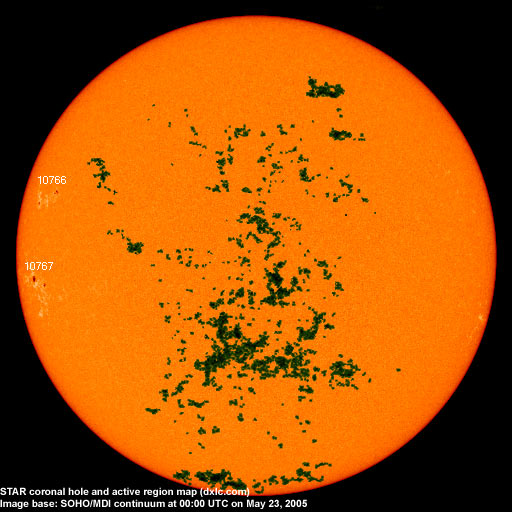

Compare today's report with the situation one solar rotation ago: 28
days ago 27 days ago 26
days ago

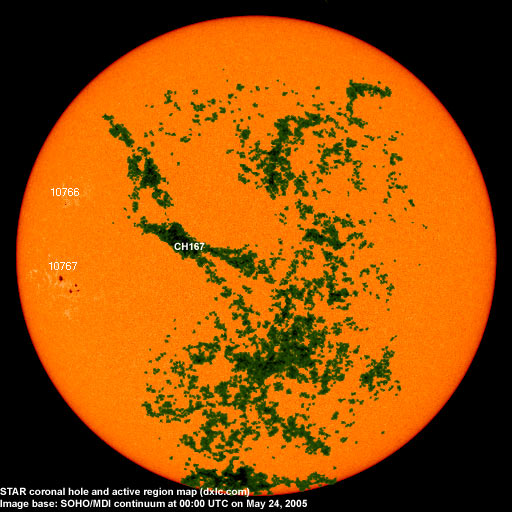

A recurrent coronal hole (CH167) in the northern hemisphere will be in an Earth facing position on May 24-25. CH167 has lost most of its area over the last rotation.

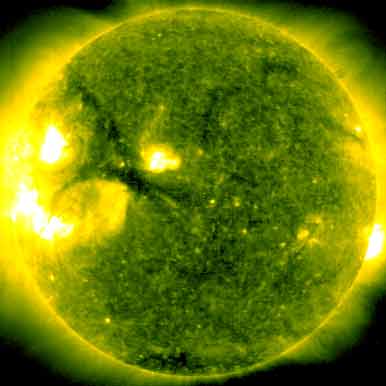

Processed SOHO/EIT 284 image at 01:06 UTC on May 24. The darkest areas on the solar disk are likely coronal holes.
The geomagnetic field is expected to be quiet to unsettled on May 24-26. Unsettled and active intervals are possible on May 27-29 due to effects from CH167.
Coronal holes (1) | Coronal mass ejections (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth
within the next 5 days. When the high speed stream has arrived
the color changes to green.
2) Material from a CME is likely to impact Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next
48 hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.
Long distance low and medium frequency (below 2 MHz) propagation along east-west paths over high and upper middle latitudes is very poor. Propagation along long distance north-south paths is poor to fair. Trans Atlantic propagation conditions are normally monitored every night on 1470 kHz. Dominant stations tonight: Radio Cristal del Uruguay and Radio Rafaela (Argentina). On other frequencies propagation was best towards Uruguay (Radio Rincón on 1510 and Radio Real on 1590 kHz) and Argentina.
Compare to the previous day's image.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SEC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots. SEC active region numbers in the table below and in the active region map above are the historic SEC/USAF numbers.
Active region | Date numbered | SEC spot count |
STAR spot count |
Location at midnight | Area | Classification | Comment |
---|---|---|---|---|---|---|---|
10763 | 2005.05.12 | S16W87 | plage | ||||
10765 | 2005.05.19 | N08E10 | plage | ||||
10766 | 2005.05.21 | 8 | 4 | N15E49 | 0050 | DSO | classification was CRO at midnight, area was 0010, location: N12E51 |
10767 | 2005.05.21 | 8 | 7 | S07E54 | 0100 | DAO |
beta-gamma area was 0120 at midnight, location: S08E51 |
S548 | 2005.05.17 | S13W66 | plage | ||||
S549 | 2005.05.18 | S12W73 | plage | ||||
Total spot count: | 16 | 11 | |||||
SSN: | 36 | 31 |
Month | Average solar flux at Earth |
International sunspot number | Smoothed sunspot number |
---|---|---|---|
2000.04 | 184.2 | 125.5 | 120.8 cycle 23 sunspot max. |
2000.07 | 202.3 | 170.1 | 119.8 |
2001.12 | 235.1 | 132.2 | 114.6 (-0.9) |
2004.03 | 112.0 | 49.1 | 47.1 (-2.2) |
2004.04 | 101.2 | 39.3 | 45.5 (-1.6) |
2004.05 | 99.8 | 41.5 | 43.8 (-1.7) |
2004.06 | 97.4 | 43.2 | 41.6 (-2.2) |
2004.07 | 119.1 | 51.1 | 40.2 (-1.4) |
2004.08 | 109.6 | 40.9 | 39.2 (-1.0) |
2004.09 | 103.1 | 27.7 | 37.5 (-1.7) |
2004.10 | 105.9 | 48.0 | 35.9 (-1.6) |
2004.11 | 113.2 | 43.5 | (34.8 predicted, -1.1) |
2004.12 | 94.5 | 17.9 | (33.4 predicted, -1.4) |
2005.01 | 102.2 | 31.3 | (30.9 predicted, -2.5) |
2005.02 | 97.2 | 29.1 | (28.3 predicted, -2.6) |
2005.03 | 89.9 | 24.8 | (26.5 predicted, -1.8) |
2005.04 | 86.0 | 24.4 | (24.6 predicted, -1.9) |
2005.05 | 102.1 (1) | 49.6 (2) | (22.0 predicted, -2.6) |
1) Running average based on the daily 20:00 UTC observed solar flux
value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (NOAA/SEC)
sunspot number. The official international sunspot number is typically
30-50% less.
This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
