Recent activity

The geomagnetic field was quiet to unsettled on October 8. Solar wind speed ranged between 275 and 362 km/sec, slowly increasing early in the day due to a low speed stream from coronal hole CH117.

Solar flux measured at 20h UTC on 2.8 GHz was 90.7. The planetary A index was 7 (STAR Ap - based on the mean of three hour interval ap indices: 7.6).
Three hour interval K indices: 13212213 (planetary), 02213322 (Boulder).

The background x-ray flux is at the class B1 level.

At midnight there was 1 spotted region on the visible disk. The solar flare activity level was very low. No C class events was recorded during the day.

New region 10680 was numbered as SEC did not consider the emerging flux areas part of region 10678. The region developed fairly quickly and has little or no separation between the opposite polarity fields. The region is rotating over the northwest limb.

Coronal mass ejections (CMEs)

October 6-8: No obviously Earth directed CMEs observed.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report with the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A trans equatorial coronal hole (CH117) was in a geoeffective position on October 3-4. A recurrent coronal hole (CH118) in the southern hemisphere was in a geoeffective position on October 8-9. A southward (poorly defined) extension of the large northern polar coronal hole may have been in a geoeffective position on October 7.

Processed SOHO/EIT 284 image at 19:16 UTC on October 8. The darkest areas on the solar disk are likely coronal holes.

Forecast

The geomagnetic field is expected to be quiet to unsettled on October 9 due to minor effects from coronal hole CH117. Quiet is likely on October 10 with unsettled to active conditions possible on October 11-12 due to a coronal flow from coronal hole CH118.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)
Coronal hole indicator CME indicator M and X class flare indicator

1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Material from a CME is likely to impact Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along east-west paths over high and upper middle latitudes is fair to good. Propagation along long distance north-south paths is poor. Trans Atlantic propagation conditions are monitored every night on 1470 kHz. Dominant station tonight: WLAM Lewiston ME. On other frequencies propagation was best towards the northeastern part of the USA and the Canadian Atlantic provinces. Some stations from the Caribbean were noted as well.

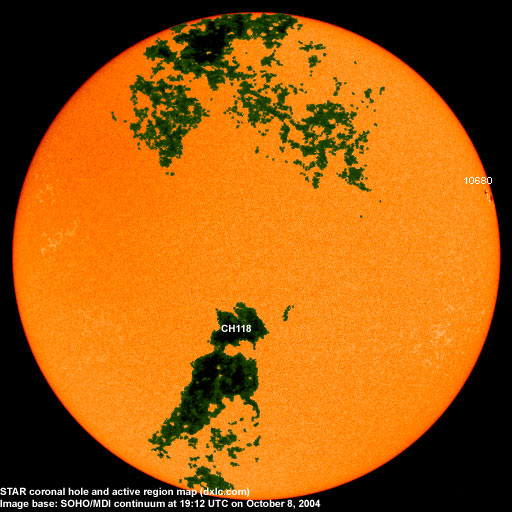

Active solar regions (Recent map)

Compare to the previous day's image.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SEC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots. SEC active region numbers in the table below and in the active region map above are the historic SEC/USAF numbers.

Active region Date numbered SEC
spot
count
STAR
spot
count
Location at midnight Area Classification Comment
10676 2004.09.28 3   S13W54 0020 BXO spotless
10680 2004.10.08 5 6 N15W83 0080 DAO
S456 emerged on
2004.09.29
    N16W73     plage
Total spot count: 8 6
SSN: 28 16

Monthly solar cycle data

Month Average solar
flux at Earth
International sunspot number Smoothed sunspot number
2000.04 184.2 125.5 120.8
cycle 23 sunspot max.
2000.07 202.3 170.1 119.8
2001.12 235.1 132.2 114.6 (-0.9)
2003.08 122.1 72.7 60.0 (-1.7)
2003.09 112.2 48.7 59.5 (-0.5)
2003.10 151.7 65.5 58.2 (-1.3)
2003.11 140.8 67.3 56.7 (-1.5)
2003.12 114.9 46.5 54.8 (-1.9)
2004.01 114.1 37.3 52.0 (-2.8)
2004.02 107.0 45.8 49.3 (-2.7)
2004.03 112.0 49.1 47.1 (-2.2)
2004.04 101.2 39.3 (44.6 predicted, -2.5)
2004.05 99.8 41.5 (40.9 predicted, -3.7)
2004.06 97.4 43.2 (38.0 predicted, -2.9)
2004.07 119.1 51.0 (36.2 predicted, -1.8)
2004.08 109.6 40.9 (34.6 predicted, -1.6)
2004.09 103.1 27.7 (32.8 predicted, -1.6)
2004.10 90.4 (1) 9.6 (2) (30.5 predicted, -2.3)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (NOAA/SEC) sunspot number. The official international sunspot number is typically 30-50% less.

This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
