Solar Terrestrial Activity Report

Last major update issued on December 8, 2004 at 04:25 UTC.

[Solar and geomagnetic data - last month (updated daily)]
[Solar wind and electron fluence charts (updated daily)]
[Solar cycles 21-23 (last update December 3, 2004)]
[Solar cycles 1-20]
[Graphical comparison of cycles 21, 22 and 23 (last update December 3, 2004)]
[Graphical comparison of cycles 2, 10, 13, 17, 20 and 23 (last update December 3, 2004)]
[Historical solar and geomagnetic data charts 1954-2004 (last update November 8, 2004)]
[Archived reports (last update December 1, 2004)]

Recent activity

The geomagnetic field was quiet to minor storm on December 7. Solar wind speed ranged between 423 and 553 km/sec under the influence of a coronal hole flow.

Solar flux measured at 20h UTC on 2.8 GHz was 89.7. The planetary A index was 15 (STAR Ap - based on themean of three hour interval ap indices: 14.8).
Three hour interval K indices: 25233332 (planetary), 24333332 (Boulder).

The background x-ray flux is at the class B1 level.

At midnight there were 2 spotted regions on the visible solar disk. The solar flare activity level was very low. No C class events were recorded during the day.

Region 10708 was quiet and stable.
Region 10709 decayed slightly and has only a few tiny spots.

Coronal mass ejections (CMEs)

December 5-7: No obviously Earth directed CMEs observed.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report with the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

Small, recurrent trans equatorial coronal hole CH131 was in a geoeffective position on December 5.

Processed SOHO/EIT 284 image at 19:06 UTC on December 7. The darkest areas on the solar disk are likely coronal holes.

Forecast

The geomagnetic field is expected to be quiet to active on December 8-9 due to coronal hole effects and quiet on December 10-12.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)
Coronal hole indicator CME indicator M and X class flare indicator

1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Material from a CME is likely to impact Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along east-west paths over high and upper middle latitudes is poor to very poor. Propagation along long distance north-south paths is good. Trans Atlantic propagation conditions are normally monitored every night on 1470 kHz. Dominant stations tonight: Radio Cristal del Uruguay, Radio Rafaela (Argentina). On other frequencies propagation was best towards Brazil and Uruguay. On 610 kHz Rádio Itatiaia (Brazil) and Radio Rural (Uruguay) both had good signals. From North America only WWZN on 1510 and the Newfoundland stations on 620 and 930 kHz could be heard with steady signals. Occasionally other stations were noted, i.e. an unidentified station with Sporting News Radio managed to be heard for a few minutes above two Brazilians on 1440 kHz.

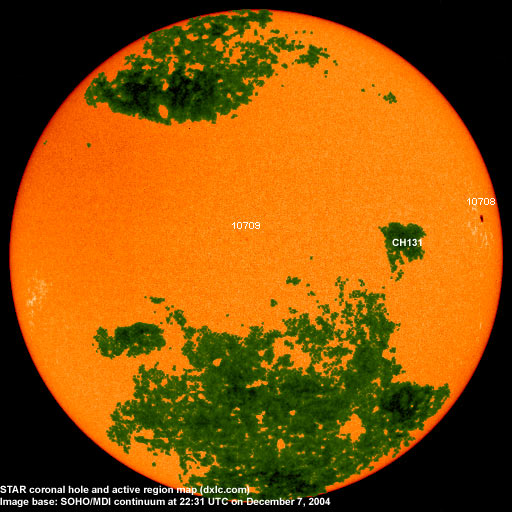

Active solar regions (Recent map)

Compare to the previous day's image.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SEC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots. SEC active region numbers in the table below and in the active region map above are the historic SEC/USAF numbers.

Active region Date numbered SEC
spot
count
STAR
spot
count
Location at midnight Area Classification Comment
10708 2004.11.26 1 1 N10W66 0080 HAX
10709 2004.12.03 5 4 N04E01 0020 BXO
Total spot count: 6 5
SSN: 26 25

Monthly solar cycle data

Month Average solar
flux at Earth
International sunspot number Smoothed sunspot number
2000.04 184.2 125.5 120.8
cycle 23 sunspot max.
2000.07 202.3 170.1 119.8
2001.12 235.1 132.2 114.6 (-0.9)
2003.10 151.7 65.5 58.2 (-1.3)
2003.11 140.8 67.3 56.7 (-1.5)
2003.12 114.9 46.5 54.8 (-1.9)
2004.01 114.1 37.3 52.0 (-2.8)
2004.02 107.0 45.8 49.3 (-2.7)
2004.03 112.0 49.1 47.1 (-2.2)
2004.04 101.2 39.3 45.5 (-1.6)
2004.05 99.8 41.5 43.9 (-1.6)
2004.06 97.4 43.2 (42.2 predicted, -1.7)
2004.07 119.1 51.0 (40.6 predicted, -1.6)
2004.08 109.6 40.9 (39.0 predicted, -1.6)
2004.09 103.1 27.7 (37.1 predicted, -1.9)
2004.10 105.9 48.4 (34.9 predicted, -2.2)
2004.11 113.2 43.7 (33.0 predicted, -1.9)
2004.12 99.1 (1) 11.0 (2) (30.7 predicted, -2.3)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (NOAA/SEC) sunspot number. The official international sunspot number is typically 30-50% less.

This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
