The geomagnetic field was quiet to active on August 22. Solar wind speed ranged between 438 and 548 km/sec.
Solar flux measured at 20h UTC on 2.8 GHz was 115.2. The planetary A
index was 13 (STAR Ap - based on the mean of three hour interval ap indices: 14.5).
Three hour interval K indices: 33443322 (planetary), 33533322 (Boulder).
The background x-ray flux is at the class B2 level.
At midnight there were 6 spotted regions on the visible disk. The solar flare activity level was very low. No C class events were recorded during the day.
Region 10661 decayed slowly with the largest penumbra showing signs of splitting into two smaller penumbrae.
Region 10662 decayed quickly and could become spotless within a couple of days.
Region 10663 decayed in the trailing spot section. however, new spots emerged near the leading penumbra.
Region 10664 developed early in the day, then began to decay. The opposite polarity areas are well separated and further
decay is likely.
New region 10665 emerged on August 20 and was noticed by SEC two days later. The region developed until the early
afternoon, afterwards slow decay was observed.
Spotted regions not numbered by NOAA/SEC:
[S448] A new region emerged in the northwest quadrant on August 22, between regions 10665 and 10662. Location at midnight:
N09W19
August 20-22: No obviously Earth directed CMEs were observed.
Coronal hole history (since late October 2002)
Compare today's report with the situation one solar rotation ago: 28
days ago 27 days ago 26 days ago
The northernmost extension of a coronal hole (CH110) in the southern hemisphere was likely in a geoeffective position on August 21.

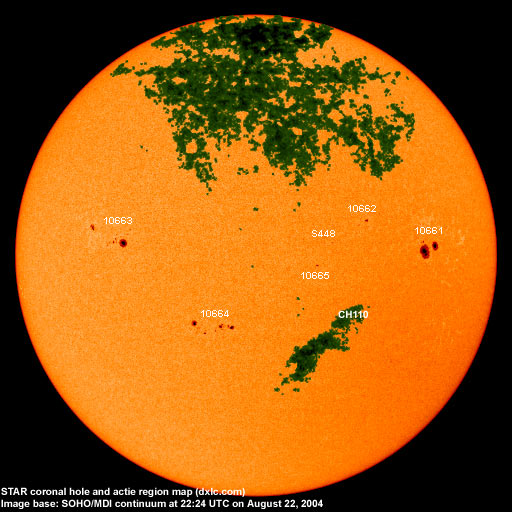

Processed SOHO/EIT 284 image at 01:06 UTC on August 23. The darkest areas on the solar disk are likely coronal holes.
The geomagnetic field is expected to be quiet to unsettled on August 23. A weak coronal hole flow from coronal hole CH110 could reach Earth on August 24 and cause unsettled to active conditions that day and on August 25.
Coronal holes (1) | Coronal mass ejections (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived
the color changes to green.
2) Material from a CME is likely to impact Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.
Long distance low and medium frequency (below 2 MHz) propagation along east-west paths over high and upper middle latitudes is poor to fair. Propagation along long distance north-south paths is poor. Trans Atlantic propagation conditions are monitored every night on 1470 kHz. Dominant stations tonight: Radio Vibración (Venezuela). On other frequencies several stations from Venezuela had fair signals, as did a few stations from the Caribbean (1610, 1620, 1640 (Dom.Republic) and 1660 kHz). From North America signals were fair to good for a few stations with the best signals from CJYQ 930 and WWZN 1510.
Compare to the previous day's image.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SEC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots. SEC active region numbers in the table below and in the active region map above are the historic SEC/USAF numbers.
Active region | Date numbered | SEC spot count |
STAR spot count |
Location at midnight | Area | Classification | Comment |
---|---|---|---|---|---|---|---|
10660 | 2004.08.11 | S08W89 | plage | ||||
10661 | 2004.08.12 | 7 | 10 | N06W47 | 0430 | DKO | |
10662 | 2004.08.18 | 6 | 3 | N13W27 | 0050 | DAO |
classification was CAO at midnight, area 0030 |
10663 | 2004.08.19 | 14 | 17 | N11E39 | 0180 | ESO | |
10664 | 2004.08.20 | 22 | 20 | S10E12 | 0100 | DAO |
classification was DSI at midnight |
10665 | 2004.08.22 | 3 | 3 | N04W15 | 0010 | BXO |
formerly region S447 classification was CRO at midnight |
S448 | emerged on 2004.08.22 |
1 | N09W19 | 0000 | AXX | ||
Total spot count: | 52 | 54 | |||||
SSN: | 102 | 114 |
Month | Average solar flux at Earth |
International sunspot number | Smoothed sunspot number |
---|---|---|---|
2000.04 | 184.2 | 125.5 | 120.8 cycle 23 sunspot max. |
2000.07 | 202.3 | 170.1 | 119.8 |
2001.12 | 235.1 | 132.2 | 114.6 (-0.9) |
2003.06 | 129.3 | 77.4 | 65.0 (-2.6) |
2003.07 | 127.7 | 83.3 | 61.8 (-3.2) |
2003.08 | 122.1 | 72.7 | 60.1 (-1.7) |
2003.09 | 112.2 | 48.7 | 59.6 (-0.5) |
2003.10 | 151.7 | 65.5 | 58.2 (-1.4) |
2003.11 | 140.8 | 67.3 | 56.8 (-1.4) |
2003.12 | 114.9 | 46.5 | 54.8 (-2.0) |
2004.01 | 114.1 | 37.7 | 52.0 (-2.8) |
2004.02 | 107.0 | 45.8 | (49.1 predicted, -2.9) |
2004.03 | 112.0 | 49.1 | (46.5 predicted, -2.6) |
2004.04 | 101.2 | 39.3 | (44.3 predicted, -2.2) |
2004.05 | 99.8 | 41.5 | (41.0 predicted, -3.3) |
2004.06 | 97.4 | 43.2 | (38.2 predicted, -2.8) |
2004.07 | 119.1 | 51.0 | (36.3 predicted, -1.9) |
2004.08 | 115.6 (1) | 57.0 (2) | (34.9 predicted, -1.4) |
1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (NOAA/SEC) sunspot number. The official international sunspot number is typically
30-50% less.
This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
