Solar Terrestrial Activity Report

Last update issued on August 27, 2003 at 03:10 UTC.

[Solar and geomagnetic data - last month (updated daily)]
[Solar wind and electron fluence charts (updated daily)]
[Solar cycles 21-23 (last update August 18, 2003)]
[Solar cycles 1-20]
[Graphical comparison of cycles 21, 22 and 23 (last update August 18, 2003)]
[Graphical comparison of cycles 2, 10, 13, 17, 20 and 23 (last update August 18, 2003)]
[Historical solar and geomagnetic data charts 1954-2003 (last update July 23, 2003)]
[Archived reports (last update August 1, 2003)]

Recent activity

The geomagnetic field was quiet to active on August 26. Solar wind speed ranged between 471 and 572 km/sec.

Solar flux measured at 20h UTC on 2.8 GHz was 120.8. The planetary A index was 14 (STAR Ap - based on the mean of three hour interval ap indices: 14.6).
Three hour interval K indices: 32143433 (planetary), 32244543 (Boulder).

The background x-ray flux is at the class B4 level.

At midnight there were 8 spotted regions on the visible disk. Solar flare activity was low with only 1 C class event recorded during the day.

Region 10436 decayed quickly and could become spotless before reaching the west limb.  Flare: C4.6/1N at 15:59 UTC.
Region 10440 decayed further and was quiet.
Region 10441 decayed slowly and quietly.
Region 10442 was mostly unchanged and quiet.
Region 10444 decayed at first, then developed slowly late in the day.
Region 10445 developed quickly but is still magnetically fairly simple structured.

Spotted regions not numbered by NOAA/SEC:
[S238] A new region emerged in the southeast quadrant on August 26. Location at midnight: S22E48.
[S239] A new region emerged in the northeast quadrant on August 26. The region decayed slowly late in the day. Location at midnight: N17E57.

Coronal mass ejections (CMEs)

August 24-26: No potentially geoeffective CMEs observed.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report with the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A coronal hole (CH53) in the southern hemisphere may have been in a geoeffective position on August 25. A coronal hole (CH54) in the northern hemisphere could reach a geoeffective position on August 30.

Processed GOES SXI coronal structure image at 23:57 UTC on August 26. Base SXI image courtesy of NOAA/SEC. The darkest areas on the solar disk are likely coronal holes.

Forecast

The geomagnetic field is expected to be quiet to unsettled on August 27 and August 30-31. There is a chance of some geomagnetic effects from the northernmost extension of coronal hole CH53 on August 28-29.

Long distance low frequency (below 2 MHz) propagation along east-west paths over high and upper middle latitudes is poor. Propagation along north-south paths is poor. [Trans Atlantic propagation conditions are currently monitored every night on 1470 kHz. Dominant station tonight: Radio Vibración (Venezuela). Radio Cristal del Uruguay was noted at times with a weak signal.]

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)
Coronal hole indicator CME indicator M and X class flare indicator

1) Effects from a coronal hole could reach Earth within the next 5 days.
2) Material from a CME is likely to impact Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

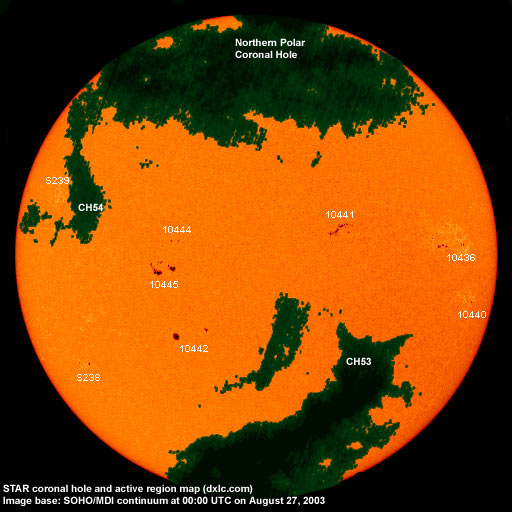

Active solar regions (Recent map)

Compare to the previous day's image.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SEC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots.

Solar region Date numbered SEC
spot
count
STAR
spot
count
Location at midnight Area Classification Comment
10436 2003.08.17 10 11 N08W51 0080 EAI classification was ESO
at midnight, area 0040
10440 2003.08.21 1 1 S07W64 0010 AXX classification was HSX
at midnight
10441 2003.08.21 24 22 N12W20 0140 DAI
10442 2003.08.22 4 6 S13E16 0110 DSO
10443 2003.08.22 1   N14W46     spotless
10444 2003.08.25 2 5 N10E22 0010 BXO classification was CRO
at midnight, area 0020
10445 2003.08.25 12 21 N03E24 0080 DAO area was 0170
at midnight
S237 emerged on
2003.08.24
    N24W38     plage
S238 emerged on
2003.08.26
  3 S22E48 0030 CSO
S239 emerged on
2003.08.26
  1 N17E57 0000 AXX
Total spot count: 54 70
SSN: 124 150

Monthly solar cycle data

Month Average solar
flux at Earth
International sunspot number Smoothed sunspot number
2000.04 184.2 125.5 120.8
cycle 23 sunspot max.
2000.07 202.3 170.1 119.8
2001.12 235.1 132.2 114.6 (-0.9)
2002.07 173.5 99.6 102.7 (-3.5)
2002.08 183.6 116.4 98.7 (-4.0)
2002.09 175.8 109.6 94.6 (-4.1)
2002.10 167.0 97.5 90.5 (-4.1)
2002.11 168.7 95.5 85.2 (-5.3)
2002.12 157.2 80.8 82.0 (-3.2)
2003.01 144.0 79.7 81.0 (-1.0)
2003.02 124.5 46.0 (77.2 predicted, -3.8)
2003.03 131.4 61.1 (71.5 predicted, -5.7)
2003.04 126.4 60.0 (66.6 predicted, -4.9)
2003.05 115.7 55.2 (61.7 predicted, -4.9)
2003.06 129.3 77.4 (57.7 predicted, -4.0)
2003.07 127.7 85.0 (54.1 predicted, -3.6)
2003.08 123.1 (1) 94.4 (2) (52.3 predicted, -1.8)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (NOAA/SEC) sunspot number. The official international sunspot number is typically 30-50% less.

This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from sources noted in solar links. All time references are to the UTC day. Comments and suggestions are always welcome.
